ASUS · Barebone Sunucular

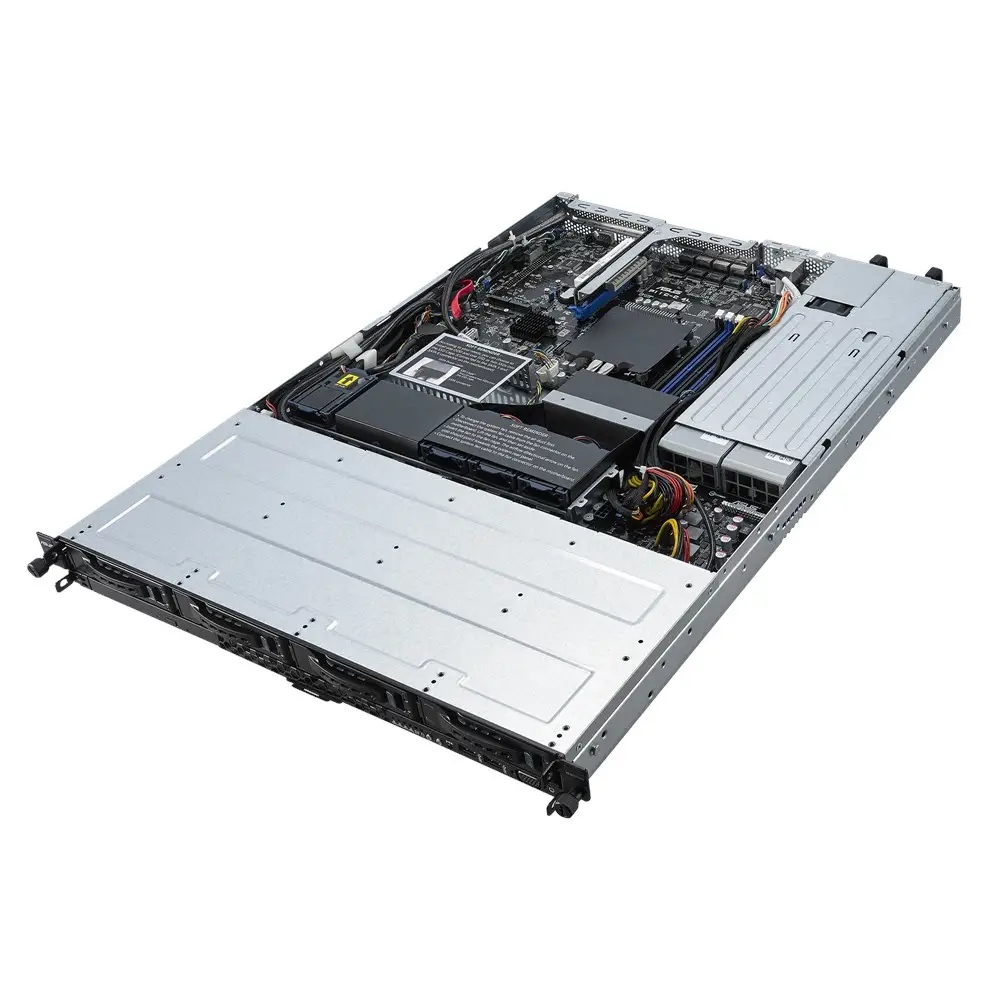

ASUS RS300-E10-RS4 90SF00D1-M00010
Product / variant code: 90SF00D1-M00010
Catalog specifications and upgrade research
Installed component specifications do not establish free slots or upgrade support. Check the model service documentation and exact part number.
Device summary and source informationASUS RS300-E10-RS4 90SF00D1-M00010 · Not specified in source · Not specified in source · Not specified in source Open details
Hardware information in the source record
Processor
- Processor
- Not specified in source
- Cores
- Not specified in source
RAM
- Memory type
- Not specified in source
- Module form
- Not specified in source
- Slot information
- Not specified in source
- Maximum capacity
- Not specified in source
- Installed memory
- Not specified in source
Storage
- SSD form
- Not specified in source
- SSD interface
- Not specified in source
- Installed capacity
- Not specified in source
- Installed SSD count
- Not specified in source
Battery and power
- Battery capacity
- Not specified in source
- Battery technology
- Not specified in source
- Adapter power
- Not specified in source
Upgrade candidates
RAM and SSD candidates are shown as separate component groups. Products are matched against the source technical terms; compatibility is unverified and physical, electrical, capacity, firmware and service-document checks remain necessary.
No candidates were found using the available source information and candidate scan. This does not mean the device cannot be upgraded.
This list is a limited catalog sample. Amazon links open search results and include an affiliate tag. Exact part number matching for batteries, adapters and other spares is not yet available.
Inspect source specifications
Values are shown as recorded in the catalog; they do not imply independent compatibility testing. Conflicting fields are omitted from the summary above.
Tasarım
- Entegre açma/kapama düğmesi
- Evet
Bağlantı
- USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Tip-A port sayısı
- 2
Genişletme yuvaları
- PCI Express x16 (Gen 3.x) yuvası
- 1
- PCI Ekspress x8 (Gen 3.x) yuvaları
- 1
- M.2 (M) yuvalarının sayısı
- 2
Genel
- Satılan Pazarlar
- NL, PT, ES, FR, IT, SE, GB, DK, DE, CH, BE, US, PL, CA, TR, FI, NO
- Sisteme Eklenme Tarihi
- 2019-02-04
Teknik
- 80 Plus Sertifikasyonu
- 80 PLUS Gold
- AC Giriş Frekansı
- 47 - 63 Hz
- AC Giriş Voltajı
- 100 - 240 V
- Ağırlık
- 12,9 kg
- Akilli Platform Yonetim Arayüzü Rj 45 Girişi
- Evet
- Çalışma Isısı Aralığı
- 10 - 35 °C
- Çalışmama Nemi
- 20 - 90%
- Com Bağlantı Noktasi Sayısı
- 1
- Dahili İşlemci
- Hayir
- Depolama Sıcaklığı Aralığı Celsius
- -40 - 70 °C
- Derinlik
- 444 mm
- Desteklenen Depolama Sürücüsü Arayuzleri
- M.2, Serial ATA III
- Desteklenen Dimm Modul Kapasitesi
- 4GB, 8GB, 16GB
- Desteklenen Ihtiyac Fazlasi Güç Kaynagi Sayısı
- 2
- Desteklenen İşlemci Sayısı
- 1
- Desteklenen Saklama Suruculeri
- 2.5,3.5,M.2 "
- Desteklenen Saklama Sürücüsü Sayısı
- 4
- Desteklenen Udimm Saat Hızı
- 2400,2666 MHz
- Destekli Hafiza Türü
- DDR4-SDRAM
- Dimm Yuvası Sayısı
- 4
- Ecc
- Evet
- Ethernet Arayuz Türü
- Gigabit Ethernet
- Ethernet LAN Bağlantısı
- Evet
- Ethernet LAN Rj 45 Port Sayısı
- 4
- Ethernet LAN Veri Transfer Hızı
- 1000 Mbit/s
- Genişlik
- 615 mm
- Giriş Akimi
- 8 A
- Gtin Ean Upc
- 4718017164740, 0192876204580, 192876204580, 0195553237697, 195553237697
- Güç Gereksinimleri
- 450 W
- İletişim Led Gostergeleri
- Alarm, HDD, LAN, Güç
- İşlemcilerle Uyumlu
- Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon®
- Kasa
- Yatay (1U)
- Kategori
- Barebone Sunucular
- Kurulan Ihtiyac Fazlasi Güç Kaynagi Sayısı
- 2
- Lan Kontroloru
- Intel I210
- Maksimum Udimm Hafizasi
- 64 GB
- Marka
- ASUS
- Non Ecc
- Evet
- Dahili Grafik Bağdaştırıcı Belleği
- 64 MB
- Dahili Grafik Bağdaştırıcı Modeli
- Aspeed AST2500
- Paket Ağırlığı
- 19 kg
- Raid Seviyesi
- 0, 1, 5, 10
- Reset Tusu
- Evet
- Sabit Disk Bolmeleri Degisebilen
- Evet
- Sata Iii Bağlantı Sayısı
- 6
- Sertifikalar Uygunluk Bildirimleri
- BSMI, CE, C-Tick, FCC(Class A)
- Ürün Adi
- RS300-E10-RS4
- Ürün Kodu
- 90SF00D1-M00010
- Ürün Rengi
- Siyah, Metalik
- Uyumlu İşletim Sistemi
- Windows Server 2016 RedHat Enterprise Linux SuSE Linux Enterprise Server CentOS Vmware Citrix XenServer
- Uyumlu Sistem Hs Kodu
- 84714100
- Vga D Sub Bağlantı Noktasi Sayısı
- 1
- Yedek Güç Kaynagi
- Evet
- Yükseklik
- 44 mm
Diğer Özellikler
- Chipset
- Intel C242
İşlemci
- İşlemci Soketi
- LGA 1151 (Soket H4)
RAM
- Bellek Kapasitesi
- 64 GB
