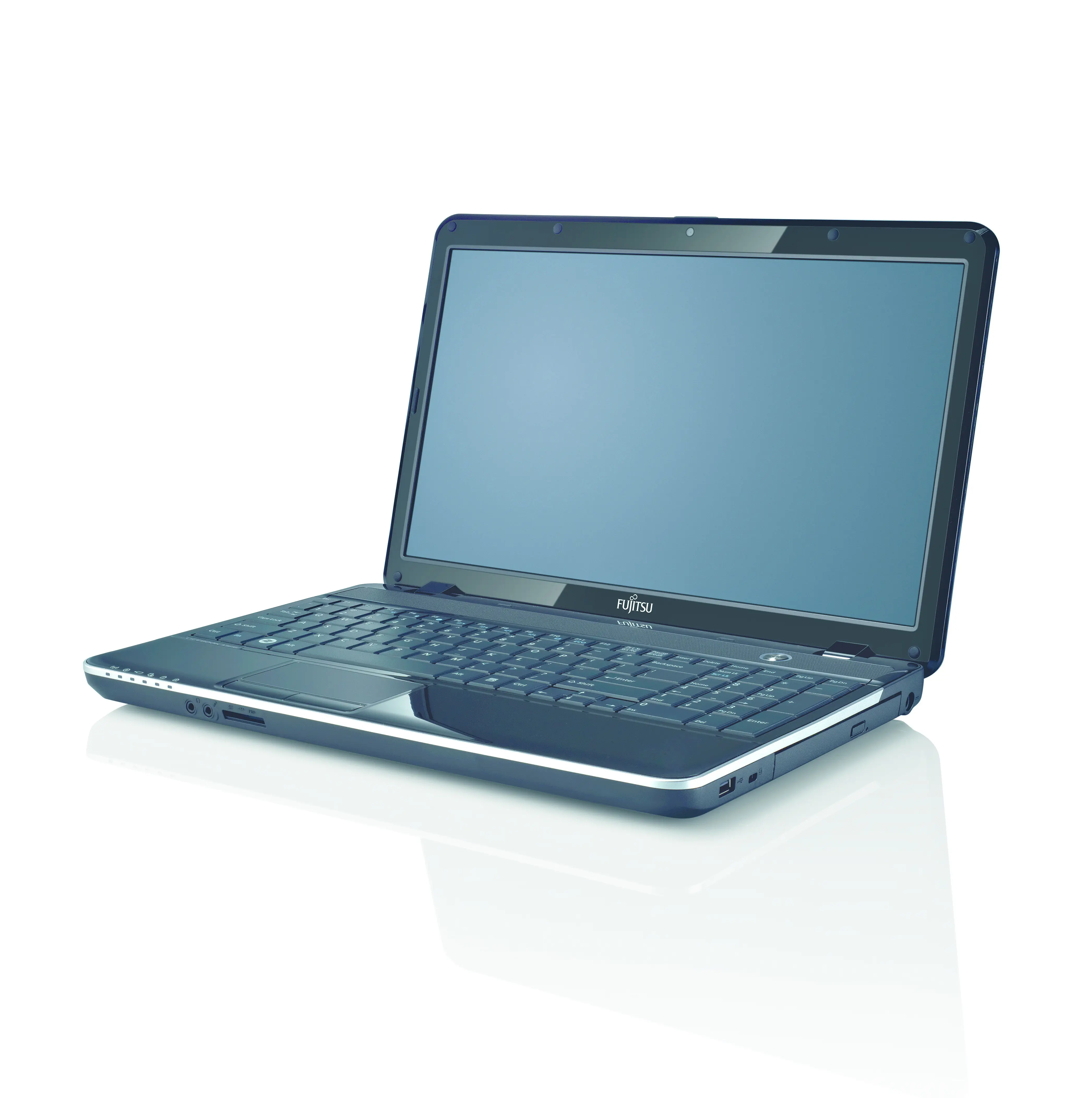

Fujitsu LIFEBOOK AH531 VFY:AH531MP502NL

Hardware specifications and upgrade assessment

Processor (CPU)

Intel® Core™ i3 i3-2350M

2,3 GHz

Maximaler Arbeitsspeicher

8 GB

2x SO-DIMM DDR3 · Not specified in source

Primäre Schnittstelle

Not specified in source

Battery & Charger

OEM Battery

Standard AC

⚡ Architecture & Upgrade Diagnostics

Source Timing & Interface Data

Processor ● Installed

⚡ Intel® Core™ i3 i3-2350M

Intel® Core™ i3 i3-2350M (2. nesil Intel® Core™ i3, 2,3 GHz, 2 Cores)

Max Turbo: 2,3 GHz

Cores: 2

Memory Architecture ● Aufrüstbar

🧠 2x SO-DIMM DDR3

Device record: DDR3 at 1333 MHz up to 8 GB.

Base Installed: 4 GB

Max Supported: 8 GB

Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: 500 GB

Clearance: Not specified in source

Battery & Power ● Source record

🔋 Internal Battery

High density battery paired with rapid AC adapter for fast recharging.

Battery Capacity: N/A

Charger Rating: N/A

ℹ️

Slot and capacity note

Source slot information: 2x SO-DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

ℹ️

Everyday use and integrated graphics

Assess memory needs using your applications and current memory usage. Check device documentation for dual-channel support and recommended population; suitability of 2×8 GB or another configuration depends on model capacity and slot support.

Upgrade candidates

Products on this page: 0

OEM Hardware Specification Part number verification required

🔋 Fujitsu High Capacity Li-Polymer Internal Battery

This laptop is engineered with a high performance Li-Polymer internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →

No compatible components currently listed.

Source specifications 277 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Body

Weight 2.5 kg

Network

Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ethernet LAN data rates 10,100,1000 Mbit/s

Bluetooth version 2.1+EDR

Integrated 4G WiMAX Yes

Top Wi-Fi standard Wi-Fi 4 (802.11n)

Ethernet LAN Yes

Cabling technology 10/100/1000Base-T(X)

Processor special features

Idle States Yes

Thermal Monitoring Technologies Yes

Processor package size 37.5 x 37.5 (rPGA988B); 31 x 24 (BGA1023) mm

Supported instruction sets AVX

Processor code SR0DN

CPU configuration (max) 1

Embedded options available No

Graphics & IMC lithography 32 nm

Intel Virtualization Technology for Directed I/O (VT-d) No

Intel Identity Protection Technology version 1.00

Intel Virtualization Technology (VT-x) Yes

Intel Dual Display Capable Technology Yes

Intel FDI Technology Yes

Intel Rapid Storage Technology No

Processor ARK ID 53438

Conflict-Free processor No

Intel® Wireless Display (Intel® WiDi) Yes

Intel® My WiFi Technology (Intel® MWT) Yes

Intel® Anti-Theft Technology (Intel® AT) Yes

Intel® Identity Protection Technology (Intel® IPT) Yes

Intel® Turbo Boost Technology No

Intel® Clear Video HD Technology (Intel® CVT HD) Yes

Intel Clear Video Technology No

Intel® InTru™ 3D Technology Yes

Intel® Quick Sync Video Technology Yes

Intel Trusted Execution Technology No

Intel Enhanced Halt State Yes

Intel VT-x with Extended Page Tables (EPT) Yes

Intel Demand Based Switching No

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) No

Execute Disable Bit Yes

Design

Form factor Clamshell

Cable lock slot type Kensington

Graphics

Discrete graphics card model Not available

On-board graphics card family Intel® HD Graphics

On-board graphics card base frequency 650 MHz

On-board graphics card dynamic frequency (max) 1150 MHz

On-board graphics card ID 0x116

On-board graphics card Yes

On-board graphics card model Intel® HD Graphics 3000

Discrete graphics card No

Processor

Processor model i3-2350M

Processor family Intel® Core™ i3

Processor manufacturer Intel

Processor generation 2nd gen Intel® Core™ i3

Processor threads 4

System bus rate 5 GT/s

Processor cache 3 MB

Processor cache type Smart Cache

Processor lithography 32 nm

Processor operating modes 64-bit

Processor series Intel Core i3-2300 Mobile Series

Processor codename Sandy Bridge

Processor frequency 2.3 GHz

Bus type DMI

Processor cores 2

FSB Parity No

Stepping J1

Thermal Design Power (TDP) 35 W

Tjunction 85 °C

Maximum number of PCI Express lanes 16

PCI Express slots version 2.0

PCI Express configurations 1x16, 2x8, 1x8+2x4

Processor socket Socket 988

CPU multiplier (bus/core ratio) 23

ECC supported by processor No

Packaging content

Number of products included 1 pc(s)

AC adapter included Yes

Hard drive

HDD capacity 500 GB

HDD speed 5400 RPM

Other features

Power supply type AC/DC

Supplied AC adapter type AC

Infrared data port No

Storage temperature (T-T) -15 - 60 °C

Networking features Gigabit Ethernet, WLAN

Graphics card family Intel

Display

Display diagonal 39.6 cm (15.6")

Display resolution 1366 x 768 pixels

Native aspect ratio 16:9

Display surface Gloss

Multimedia

Built-in speaker(s) Yes

Audio

Built-in microphone Yes

Number of built-in speakers 2

Ports & interfaces

VGA (D-Sub) ports quantity 1

HDMI ports quantity 1

DVI port No

S/PDIF out port No

ExpressCard slot Yes

TV-out No

Ethernet LAN (RJ-45) ports 1

DC-in jack Yes

USB 2.0 ports quantity 3

Microphone in Yes

Headphone outputs 1

Camera

Front camera resolution (numeric) 1.3 MP

Ergonomics

Cable lock slot Yes

Storage

Card reader integrated Yes

Total storage capacity 500 GB

Storage media HDD

Optical drive type DVD Super Multi

Number of HDDs installed 1

HDD interface SATA

HDD size 2.5"

Performance

Compatible memory cards Memory Stick (MS), MS PRO, SD, SDHC

LED backlight Yes

Motherboard chipset Intel® HM65 Express

Operating temperature (T-T) 5 - 35 °C

Keyboard

Numeric keypad Yes

Pointing device Touchpad

Windows keys Yes

Software

Operating system architecture 64-bit

Operating system installed Windows 7 Home Premium

Power

AC adapter frequency 50 - 60 Hz

AC adapter input voltage 100 - 240 V

Memory

Internal memory 4 GB

Internal memory type DDR3-SDRAM

Maximum internal memory 8 GB

Memory clock speed 1333 MHz

Memory slots (available) 1

Memory slots 2x SO-DIMM

Genel

Satılan Pazarlar NL

Sisteme Eklenme Tarihi 2012-01-27

Weight & dimensions

Width 378 mm

Depth 252 mm

Height 36.5 mm

Operational conditions

Operating relative humidity (H-H) 20 - 85%

Teknik

AC Adaptor Frekansı 50 - 60 Hz

AC Adaptor Voltaj Girdisi 100 - 240 V

AC Sarma Adaptor Evet

Ag Arabirimi Gigabit Ethernet, WLAN

Ağırlık 1,2 kg

Atlama J1

Ayrik Ekran Kartı Modeli Mevcut değil

Ayrik Grafik Bagdastirici Hayır

Bellek Yuvası Sayısı 2x SO-DIMM

Bluetooth Yes

Bluetooth Versiyonu 2.1+EDR

Çalışma Isısı Aralığı 5 - 35 °C

Calistirma Nem Aralığı 20 - 85%

Cpu Cogaltici 23

Cpu Konfigurasyonu 1

Dahili Bellek Tipi DDR3-SDRAM

Dahili Hoparlör Sayısı 2

Dahili Mikrofon Evet

Dahili Sabit Disk Sürücüsü 500 GB

Depolama Ortami HDD

Depolama Sıcaklığı Aralığı Celsius -15 - 60 °C

Derinlik 252 mm

Desteklenen Yonerge Setleri AVX

Yürütmeyi Devre Dışı Bırakma Biti (Execute Disable Bit) Evet

Ekran Çözünürlüğü 1366 x 768 Piksel

Ekran Ozellikleri LCD

Ekran Yuzeyi Parlak

Ekspres Kart Yuvası Evet

Enhanced Intel Speedstep Technology Yes

Entegre Grafik Kartı Evet

Entegre Kart Okuyucu Evet

Ethernet LAN Bağlantısı Evet

Ethernet LAN Rj 45 Port Sayısı 1

Ethernet LAN Veri Transfer Hızı 10,100,1000 Mbit/s

Fis Ici Dc Evet

Form Faktörü Kapaklı

Fsb Paritesi Hayır

Genişletilmiş Sayfa Tabloları ile Intel VT-x (EPT) Evet

Genişlik 378 mm

Gömme Hoparlörler Evet

Gömülü Secenekler Mevcut Hayır

Grafik Adaptor Ailesi Intel

Grafik Imc Tasbaski 32 nm

Gtin Ean Upc 4051554394813

Güç Kaynagi Türü AC/DC

Hafiza Bosluklari Uygun 1

Hafiza Frekans Hızı 1333 MHz

Hdmi Port Sayısı 1

Intel 64 Yes

Intel Aes New Instructions Intel Aes Ni No

Intel Clear Video Hd Teknoloji Intel Cvt Hd Evet

Intel Clear Video Teknolojisi Hayır

Intel Dual Display Capable Tecknoloji Evet

Intel Fast Memory Access Yes

Intel Fdi Teknoloji Evet

Intel Flex Memory Access Yes

Intel Güvenilir Yürütme Teknolojisi Hayır

Intel Hirsizliga Karsi Teknolojisi Intel At Evet

Intel Hizli Depolama Teknolojisi Hayır

Intel Hyper Threading Technology Intel Ht Technology Yes

Intel Insider Yes

Intel Intru 3D Teknolojisi Evet

Intel Kablosuz Ekran Teknolojisi Intel Widi Evet

Intel Kimlik Koruma Teknolojisi Intel Ipt Evet

Intel Kimlik Koruma Teknolojisi Versiyonu 1,00

Intel My Wifi Technojisi Intel Mwt Evet

Intel Quick Sync Video Teknolojisi Evet

Intel Sanallaştırma Teknolojisi (VT-x) Evet

Intel Smart Cache Yes

Intel Talep Tabanli Acma Kapama Hayır

Intel Turbo Boost Teknolojisi Hayır

Intel Zenginlestirilmis Sonlandirma Durumu Evet

Isaret Aygiti Dokunmalı tablet

İşlemci Intel® Core™ i3 i3-2350M

İşlemci Ark Idsi 53438

İşlemci Çalışma Modlari 64-bit

Toplam Çekirdek Sayısı 2

İşlemci Frekansı 2,3 GHz

İşlemci Kod Adi Sandy Bridge

İşlemci Kodu SR0DN

İşlemci Litografi 32 nm

İşlemci Nesli 2. nesil Intel® Core™ i3

İşlemci On Bellek Türü Akıllı Önbellek

İşlemci Önbelleği 3 MB

İşlemci Paket Boyutu 37.5 x 37.5 (rPGA988B); 31 x 24 (BGA1023)

İşlemci Tarafindan Desteklenen Ecc Hayır

İşlemci Üreticisi Intel

Isletme Sistemi Mimarisi 64-bit

Kablo Kilit Yuvası Evet

Kablo Kilit Yuvası Türü Kensington

Kablo Teknolojisi 10/100/1000Base-T(X)

Kategori Laptops

Kizilotesi Veri Noktasi Hayır

Kulaklik Cikti Sayısı 1

Boşta Çalışma Durumları Evet

Led Arka Isigi Evet

Marka Fujitsu

Mid Icin Intel Net Video Teknolojisi Intel Cvt For Mid Hayır

Mikrofon Giriş Fisi Evet

Model Ailesi LIFEBOOK

Model Serisi AH

Dahili Grafik Bağdaştırıcı Modeli Intel® HD Graphics 3000

On Kamera Çözünürlüğü 1,2 MP

Optik Sürücüler DVD süper multi

Otobus Tipi DMI

Pci Express Giriş Versiyonu 2.0

Pci Express Hatlarinin Maksimum Sayısı 16

Pci Express Konfigurasyonlari 1x16, 2x8, 1x8+2x4

Ram 4 GB

S Pdif Çıkışı Hayır

Sabit Bellek Arayüzü SATA

Sabit Disk Boyutu 2.5"

Sabit Disk Sürücüsü Hızı 5400 RPM

Sayısal Tuş Takımı Evet

Sıralı İşlemci Sayısı 4

Sistem Busu 5 GT/s

T Bağlantısi 85 °C

Termal Gozleme Teknolojileri Evet

Termal Tasarim Gücü 35 W

Toplam Depolama Kapasitesi 500 GB

Tv Çıkışı Hayır

Üretim Tarihi 2012

Ürün Adi AH531

Ürün Ailesi LIFEBOOK

Ürün Kodu VFY:AH531MP502NL

Usb 2 Bağlantı Noktasi Sayısı 3

Uyumlu Hafiza Kartları Bellek Çubuğu (MS), MS PRO, SD, SDHC

Uyusum Sorunsuz İşlemci Hayır

Wi Fi Yes

Wi Fi Standardi Wi-Fi 4 (802.11n)

Windows Tuslari Evet

Doğal En-Boy Oranı 16:9

Yerlesik Grafik Adaptoru Dinamik Frekansı Maks 1150 MHz

Yerlesik Grafik Adaptoru Idsi 0x116

Yerlesik Grafik Adaptoru Taban Frekansı 650 MHz

Yerlesik Grafik Bagdastirici Ailesi Intel® HD Graphics

Yönlendirilmiş G/Ç için Intel Sanallaştırma Teknolojisi (VT-d) Hayır

Yuklu Sabit Disk Sayısı 1

Yükseklik 36,5 mm

Diğer Özellikler

Chipset Intel® HM65 Express

Ekran

Ekran Boyutu 31,2 cm (15.6")

Isletim Sistemi

İşletim Sistemi Windows 7 Home Premium

RAM

Bellek Kapasitesi 8 GB
