Ernitec · Sunucular

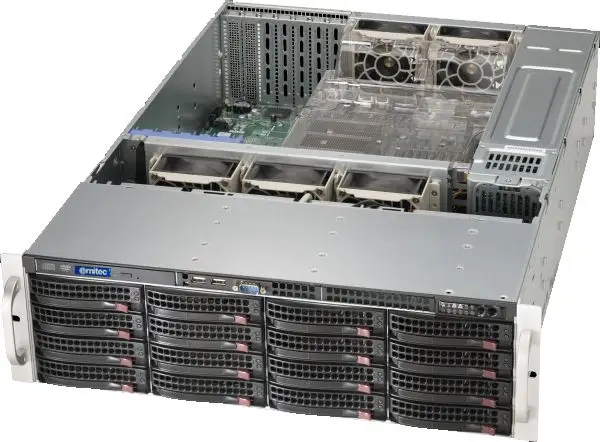

Ernitec CORE-5316-V2 500 GB
Product / variant code: CORE-5316-V2
Catalog specifications and upgrade research
Installed component specifications do not establish free slots or upgrade support. Check the model service documentation and exact part number.
Show processor and memory limits
Primary technical source: CPU library
Intel Xeon Silver 4210
- CPU maximum RAM
- 1 TB
- CPU speed limit for this memory type
- Not specified in source
- Maximum RAM in device record
- Not specified in source
- CPU memory channels / ECC
- 6 / Evet
DDR4-2400
The CPU limit is the primary capacity reference. It is not a tested device upgrade capacity; motherboard, BIOS, soldered memory and slot support need separate verification. Channel count is not physical slot count.
Hardware information in the source record
Processor
- Processor
- Intel® Xeon Silver 4210 (2. Nesil Ölçeklenebilir Intel® Xeon®, 10 Cores)
- Cores
- 10
RAM
- Memory type
- DDR4
- Module form
- Not specified in source
- Slot information
- Not specified in source
- Maximum capacity
- Not specified in source
- Installed memory
- Not specified in source
Storage
- SSD form
- Not specified in source
- SSD interface
- M.2
- Installed capacity
- 500 GB
- Installed SSD count
- 1
Battery and power
- Battery capacity
- Not specified in source
- Battery technology
- Not specified in source
- Adapter power
- Not specified in source
Show compatibility notes
BIOS and manufacturer support
Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.
Upgrade candidates
RAM and SSD candidates are shown as separate component groups. Products are matched against the source technical terms; compatibility is unverified and physical, electrical, capacity, firmware and service-document checks remain necessary.
No candidates were found using the available source information and candidate scan. This does not mean the device cannot be upgraded.
This list is a limited catalog sample. Amazon links open search results and include an affiliate tag. Exact part number matching for batteries, adapters and other spares is not yet available.
Inspect source specifications
Values are shown as recorded in the catalog; they do not imply independent compatibility testing. Conflicting fields are omitted from the summary above.
Genel
- Sisteme Eklenme Tarihi
- 2021-05-07
Özellikler
- S.M.A.R.T. destek
- Evet
Bağlantı
- USB 2.0 bağlantı noktası sayısı
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı
- 3
Genişletme yuvaları
- 3.5" bölme sayısı
- 16
- PCI Express x16 (Gen 3.x) yuvası
- 2
Teknik
- 3 5 Bolme Sayısı
- 16
- Ağırlık
- 34,9 kg
- Akilli Platform Yonetim Arayüzü
- Evet
- Ambalaj Derinliği
- 1013 mm
- Ambalaj Genişliği
- 676 mm
- Ambalaj Yüksekliği
- 330 mm
- Bellek Düzeni
- 2 x 8 GB
- Brand
- Ernitec
- Calisirken Takma Desteği
- Evet
- Çalışma Isısı Aralığı
- 5 - 35 °C
- Çalışmama Nemi
- 5 - 95%
- Calistirma Nem Aralığı
- 8 - 90%
- Category
- Sunucular
- Dahili Bellek Tipi
- DDR4-SDRAM
- Dahili Sürücü Bolmeleri
- 16
- Depolama Sıcaklığı Aralığı Celsius
- -40 - 70 °C
- Derinlik
- 647 mm
- Desteklenen İşlemci Sayısı
- 2
- Desteklenen Sabit Sürücü Sayısı
- 16
- Desteklenen Saklama Sürücüsü Sayısı
- 16
- Desteklenen Ssd Sayısı
- 3
- Yürütmeyi Devre Dışı Bırakma Biti (Execute Disable Bit)
- Evet
- Dimm Yuvası Sayısı
- 8
- Enhanced Intel Speedstep Technology
- Evet
- Ethernet Arayuz Türü
- Gigabit Ethernet
- Ethernet LAN Bağlantısı
- Evet
- Ethernet LAN Rj 45 Port Sayısı
- 2
- Garanti Süresi
- 3 Yıl
- Gecici Bellek Tipi
- Registered (buffered)
- Genişlik
- 437 mm
- Grafik Adaptor Ailesi
- Aspeed
- Gtin Ean Upc
- 5704174463122
- Güç Gereksinimler Giriş Frekansı
- 50 - 60 Hz
- Güç Gereksinimleri
- 1000 W
- Güç Gereksinimleri Giriş Voltajı
- 100 - 240 V
- Hafiza Frekans Hızı
- 2666 MHz
- Hot Swap
- Evet
- Intel Aes New Instructions Intel Aes Ni
- Evet
- Intel Hd Grafik
- Hayir
- Intel Quick Sync Video Teknolojisi
- Hayir
- Ipmi Ile Entegre Bmc
- Evet
- İşlemci
- 4210
- İşlemci Ailesi
- Intel® Xeon Silver
- Toplam Çekirdek Sayısı
- 10
- İşlemci Destek Frekansı
- 3,2 GHz
- İşlemci Frekansı
- 2,2 GHz
- İşlemci Nesli
- 2. Nesil Ölçeklenebilir Intel® Xeon®
- İşlemci Önbelleği
- 13,75 MB
- İşlemci Tarafindan Desteklenen Ecc
- Evet
- İşlemci Üreticisi
- Intel
- İşletim Sistemi Dili
- Danca, Almanca, Flemenkçe, İngilizce, İspanyol, Fince, Fransızca, İtalyan, Norveççe
- Kasa
- Yatay (3U)
- Kategori
- Sunucular
- Kurulan Ihtiyac Fazlasi Güç Kaynagi Sayısı
- 2
- Kurulan Ssd Sayısı
- 1
- Lan Kontroloru
- Intel® X722, Marvell 88E1512
- Maksimum Dahili Bellek
- 2048 MB
- Marka
- Ernitec
- Nvme
- Evet
- Olculebilirlik
- 2S
- Paket Ağırlığı
- 35 kg
- Pci Express Giriş Versiyonu
- 3.0
- Pci Express X16 Delik
- 2
- Pci Express X16 Gen 3 X Yuvası
- 2
- Pci Express X4 Delik
- 1
- Pci Express X8 Delik
- 3
- Product Name
- CORE-5316-V2
- Product Series
- 1
- Raf Montaji
- Evet
- Raf Raylari
- Evet
- Raid Desteği
- HWRAID S3108
- Raid Seviyesi
- 0, 1, 5, 6, 10
- Ram
- 16 GB
- S M A R T Destek
- Evet
- Sabit Bellek Arayüzü
- SATA III, Serial Attached SCSI (SAS)
- Sabit Disk Bolmeleri Degisebilen
- Evet
- Sabit Disk Denetleyicisi
- Supermicro / Avago 3108
- Sata Baglayici Sayısı
- 10
- Sata Iii Bağlantı Sayısı
- 10
- Satin Alinabilir Uzatilmis Garanti Ulke Secin
- Evet
- Sert Durum Disk Sürücü Kapasite
- 500 GB
- Sert Durum Disk Sürücüsü Arayuzleri
- M.2
- Sürücü Bolme Sayısı
- 16
- Toplam Depolama Kapasitesi
- 500 GB
- Tumlesik Lan
- Evet
- Ürün Adi
- CORE-5316-V2
- Ürün Kodu
- CORE-5316-V2
- Ürün Rengi
- Siyah
- Ürünle Gelen Yazilim
- SuperDoctor 5
- Usb 2 Bağlantı Noktasi Sayısı
- 4
- Usb 3 2 Gen 1 3 1 Gen 1 Tip A Port Sayısı
- 3
- Vga D Sub Bağlantı Noktasi Sayısı
- 1
- Yedek Güç Kaynagi
- Evet
- Yerlesik Grafik Adaptoru 4K Desteği
- Hayir
- Yuklu İşlemcilerin Sayısı
- 1
- Yükseklik
- 132 mm
Diğer Özellikler
- Chipset
- Intel® C621
İşlemci
- İşlemci Soketi
- LGA 3647 (Socket P)
Isletim Sistemi
- İşletim Sistemi
- Windows 10 Pro
RAM
- Bellek Kapasitesi
- 2 TB
