Fujitsu · Sunucular

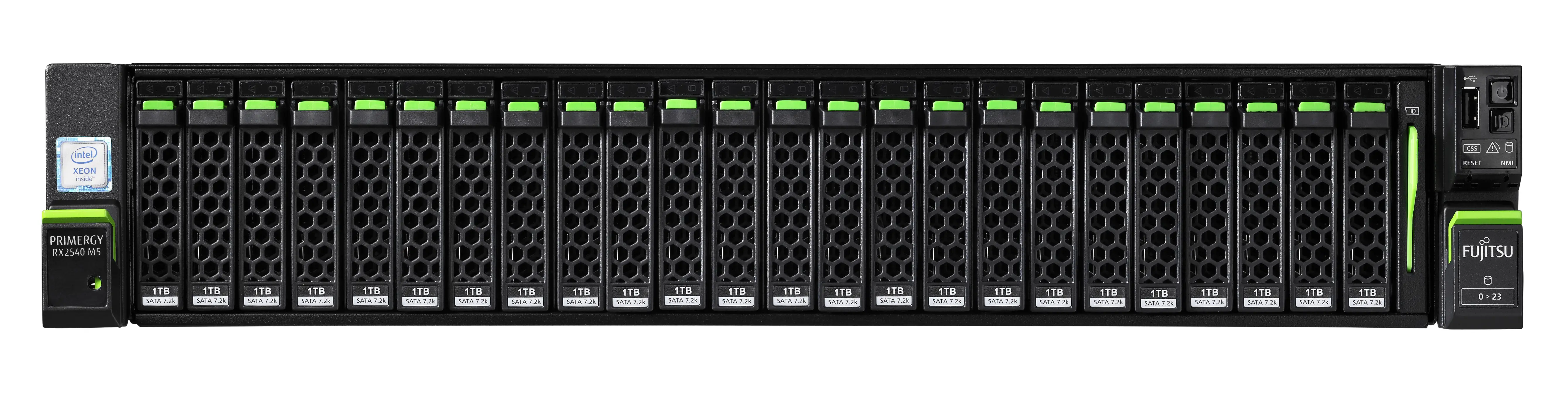

Fujitsu LKN:R2545S0339FR 240 GB
Product / variant code: LKN:R2545S0339FR
Catalog specifications and upgrade research
Installed component specifications do not establish free slots or upgrade support. Check the model service documentation and exact part number.
Show processor and memory limits
Primary technical source: CPU library
Intel Xeon Gold 5218
- CPU maximum RAM
- 1 TB
- CPU speed limit for this memory type
- Not specified in source
- Maximum RAM in device record
- Not specified in source
- CPU memory channels / ECC
- 6 / Evet
DDR4-2667
The CPU limit is the primary capacity reference. It is not a tested device upgrade capacity; motherboard, BIOS, soldered memory and slot support need separate verification. Channel count is not physical slot count.
Hardware information in the source record
Processor
- Processor
- Intel® Xeon® Gold 5218 (2. Nesil Ölçeklenebilir Intel® Xeon®)
- Cores
- Not specified in source
RAM
- Memory type
- DDR4
- Module form
- Not specified in source
- Slot information
- 24
- Maximum capacity
- Not specified in source
- Installed memory
- Not specified in source
Storage
- SSD form
- Not specified in source
- SSD interface
- SATA III
- Installed capacity
- 240 GB
- Installed SSD count
- 1
Battery and power
- Battery capacity
- Not specified in source
- Battery technology
- Not specified in source
- Adapter power
- Not specified in source
Show compatibility notes
Slot and capacity note
Source slot information: 24. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.
BIOS and manufacturer support
Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.
Upgrade candidates
RAM and SSD candidates are shown as separate component groups. Products are matched against the source technical terms; compatibility is unverified and physical, electrical, capacity, firmware and service-document checks remain necessary.
No candidates were found using the available source information and candidate scan. This does not mean the device cannot be upgraded.
This list is a limited catalog sample. Amazon links open search results and include an affiliate tag. Exact part number matching for batteries, adapters and other spares is not yet available.
Inspect source specifications
Values are shown as recorded in the catalog; they do not imply independent compatibility testing. Conflicting fields are omitted from the summary above.
Genel
- Satılan Pazarlar
- FR
- Sisteme Eklenme Tarihi
- 2021-06-25
Bağlantı
- USB 2.0 bağlantı noktası sayısı
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı
- 5
İşlemci özellikleri
- Yönlendirilmiş G/Ç (VT-d) için Intel® Sanallaştırma Teknolojisi
- Evet
Genişletme yuvaları
- PCI Express x16 (Gen 3.x) yuvası
- 3
- PCI Ekspress x8 (Gen 3.x) yuvaları
- 3
Teknik
- Bellek Düzeni
- 8 x 32 GB
- Bellek Yuvası Sayısı
- 24
- Brand
- Fujitsu
- Çalışma Isısı Aralığı
- 5 - 40 °C
- Calistirma Nem Aralığı
- 10 - 85%
- Category
- Sunucular
- Dahili Bellek Tipi
- DDR4-SDRAM
- Derinlik
- 770 mm
- Desteklenen Ihtiyac Fazlasi Güç Kaynagi Sayısı
- 2
- Destekli Hard Disk Sürücüsü Boyutlari
- 2.5,3.5"
- Yürütmeyi Devre Dışı Bırakma Biti (Execute Disable Bit)
- Evet
- Enhanced Intel Speedstep Technology
- Evet
- Ethernet Arayuz Türü
- Gigabit Ethernet
- Ethernet LAN Bağlantısı
- Evet
- Ethernet LAN Rj 45 Port Sayısı
- 4
- Genişletilmiş Sayfa Tabloları ile Intel VT-x (EPT)
- Evet
- Genişlik
- 482,4 mm
- Gömülü Secenekler Mevcut
- Hayir
- Güç Gereksinimleri
- 800 W
- Hafiza Frekans Hızı
- 2933 MHz
- İletişim Seri Bağlantı Noktalari
- 1
- Intel 64
- Evet
- Intel Güvenilir Yürütme Teknolojisi
- Evet
- Intel Sanallaştırma Teknolojisi (VT-x)
- Evet
- Intel Tsx Ni
- Evet
- İşlemci
- 5218
- İşlemci Ailesi
- Intel® Xeon® Gold
- İşlemci Destek Frekansı
- 3,9 GHz
- İşlemci Frekansı
- 2,3 GHz
- İşlemci Nesli
- 2. Nesil Ölçeklenebilir Intel® Xeon®
- İşlemci Önbelleği
- 22 MB
- İşlemci Üreticisi
- Intel
- Kablo Teknolojisi
- 10/100/1000Base-T(X)
- Kasa
- Yatay (2U)
- Kategori
- Sunucular
- Kurulan Ssd Sayısı
- 1
- Maksimum Saklama Kapasitesi
- 12 TB
- Marka
- Fujitsu
- Optik Sürücüler
- Hayir
- Pci Ekspress X8 Gen 3 X Yuvalari
- 3
- Pci Express X16 Gen 3 X Yuvası
- 3
- Product Family
- PRIMERGY
- Product Name
- LKN:R2545S0339FR
- Product Series
- RX2540 M5
- Raf Montaji
- Evet
- Raf Raylari
- Evet
- Raid Desteği
- Evet
- Raid Seviyesi
- 5, 6
- Ram
- 256 GB
- Rs 232 Port
- 1
- Sert Durum Disk Sürücü Kapasite
- 240 GB
- Sert Durum Disk Sürücüsü Arayuzleri
- SATA III
- Sertifikalar Uygunluk Bildirimleri
- CB, RoHS, WEEE, GS, CE Class A, CSAc/us, ULc/us, ICES-003 Class A, FCC Class A, VCCI Class A + JIS 61000-3-2, CCC, CNS 13438 class A
- Ssd Boyutu
- M.2
- Toplam Depolama Kapasitesi
- 240 GB
- Ürün Adi
- LKN:R2545S0339FR
- Ürün Ailesi
- PRIMERGY
- Ürün Kodu
- LKN:R2545S0339FR
- Ürün Rengi
- Siyah
- Usb 2 Bağlantı Noktasi Sayısı
- 1
- Usb 3 2 Gen 1 3 1 Gen 1 Tip A Port Sayısı
- 5
- Uyumlu İşletim Sistemi
- - Microsoft Hyper-V Server R2 2012 - Microsoft Windows Server 2012 R2 Datacenter - Microsoft Windows Server 2012 R2 Standard - Microsoft Windows Server 2012 R2 Essentials - Microsoft Windows Server 2012 R2 Foundation - Microsoft Windows Storage Server 2012 R2 Standard - Microsoft Hyper-V Server 2012 - Microsoft Windows Server 2012 Datacenter - Microsoft Windows Server 2012 Standard - Microsoft Windows Server 2012 Essentials - Microsoft Windows Storage Server 2012 Standard - Microsoft Hyper-V Server 2008 R2 - Microsoft Windows Server 2008 R2 Datacenter - Microsoft Windows Server 2008 R2 Enterprise - Microsoft Windows Server 2008 R2 Standard - Microsoft Windows Small Business Server 2011 - Microsoft Windows Small Business Server Standard 2011 - Microsoft Windows Server 2008 Datacenter - Microsoft Windows Server 2008 Enterprise - Microsoft Windows Server 2008 Standard - VMware vSphere 5.5 Embedded - VMware vSphere 5.5 - VMware vSphere 5.0 Embedded - VMware vSphere 5.0 - VMware vSphere 4.1
- Vga D Sub Bağlantı Noktasi Sayısı
- 2
- Yedek Güç Kaynagi
- Evet
- Yönlendirilmiş G/Ç için Intel Sanallaştırma Teknolojisi (VT-d)
- Evet
- Yuklu İşlemcilerin Sayısı
- 2
- Yükseklik
- 86,6 mm
Isletim Sistemi
- İşletim Sistemi
- Hayir
RAM
- Bellek Kapasitesi
- 1 TB
