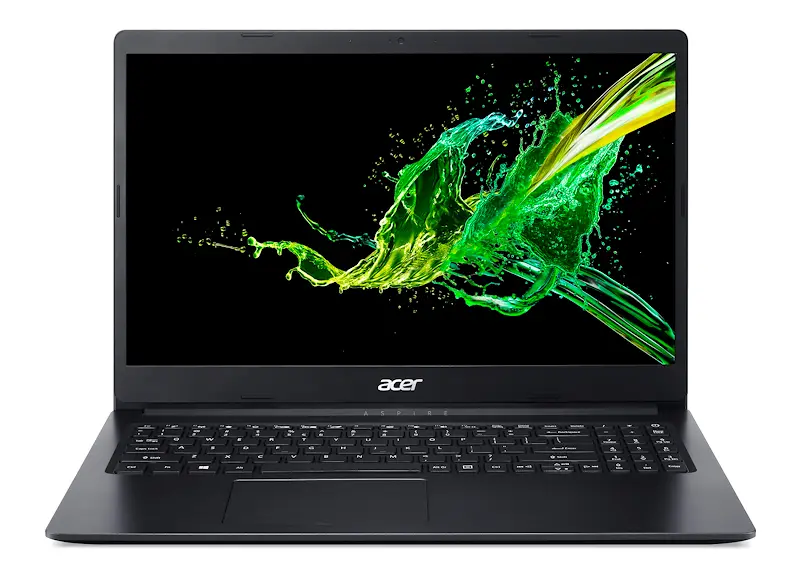

Acer Aspire A315-22-439R 4 GB NX.HE8ET.00L Acer
LAPTOP AMD A4 A4-9120E, 2 Cores

Acer Aspire A315-22-439R 4 GB NX.HE8ET.00L

Hardware specifications and upgrade assessment

Processor (CPU)
A4-9120E
2 Cores
Device maximum RAM
16 GB
1x SO-DIMM DDR4 · Yükseltilebilir · CPU 16 GB @ Not specified in source (çip külliyatı)
Primäre Schnittstelle
Not specified in source
PCI Express
Battery & Charger
36 Wh
Standard AC

Architecture & Upgrade Diagnostics

Source Timing & Interface Data
Processor ● Installed

⚡ A4-9120E

AMD A4 A4-9120E, 2 Cores

Max Turbo: N/A
Cores: 2
Memory Architecture ● Aufrüstbar

🧠 1x SO-DIMM DDR4 On-board + SO-DIMM

Device record: DDR4 On-board + SO-DIMM at 2133 MHz up to 16 GB.

Base Installed: 4 GB
Max Supported: 16 GB
CPU theoretical limit: 16 GB
Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: PCI Express. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: 128 GB
Clearance: Not specified in source
Battery & Power ● Source record

🔋 36 Wh

Lityum-İyon (Li-Ion) paired with rapid AC adapter for fast recharging.

Battery Capacity: 36 Wh
Charger Rating: N/A
ℹ️

Slot and capacity note

Source slot information: 1x SO-DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

ℹ️

Everyday use and integrated graphics

Assess memory needs using your applications and current memory usage. Check device documentation for dual-channel support and recommended population; suitability of 2×8 GB or another configuration depends on model capacity and slot support.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 Acer 36 Wh Lityum-İyon (Li-Ion) Internal Battery

This laptop is engineered with a 36 Wh Lityum-İyon (Li-Ion) internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →
No compatible components currently listed.
Source specifications 81 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Genel

Sisteme Eklenme Tarihi 2021-08-11

Bağlantı

USB 2.0 bağlantı noktası sayısı 2
USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı 1
Birleşik kulaklık/mikrofon portu Evet
Wi-Fi standartlari 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Teknik

Ağırlık 1,9 kg
Anten Tipi 1x1
Ayrik Ekran Kartı Modeli Mevcut değil
Ayrik Grafik Bagdastirici Hayir
Bellek Yuvası Sayısı 1x SO-DIMM
Bluetooth Evet
Bluetooth Versiyonu 4.2
Dahili Bellek Tipi DDR4-SDRAM
Dahili Hoparlör Sayısı 2
Dahili Mikrofon Evet
Depolama Ortami SSD
Derinlik 250,5 mm
Dokunmatik Ekran Hayir
Ekran Çözünürlüğü 1366 x 768 Piksel
Entegre Grafik Kartı Evet
Ethernet LAN Bağlantısı Evet
Ethernet LAN Rj 45 Port Sayısı 1
Ethernet LAN Veri Transfer Hızı 10,100,1000 Mbit/s
Fis Ici Dc Evet
Form Faktörü Kapaklı
Genişlik 363,4 mm
Gtin Ean Upc 4710886120803
Hafiza Frekans Hızı 2133 MHz
Hafiza Sekli Faktoru On-board + SO-DIMM
Hd Türü HD
Hdmi Port Sayısı 1
Isaret Aygiti Dokunmalı tablet
Island Klavye Evet
İşlemci A4-9120E
İşlemci Ailesi AMD A4
Toplam Çekirdek Sayısı 2
İşlemci Destek Frekansı 2,2 GHz
İşlemci Frekansı 1,5 GHz
İşlemci On Bellek Türü L2
İşlemci Önbelleği 1 MB
İşlemci Üreticisi AMD
Kablo Kilit Yuvası Evet
Kablo Kilit Yuvası Türü Kensington
Kategori Notebooklar/Dizüstü Bilgisayarlar
Kulaklik Cikti Sayısı 1
Kurulan Ssd Sayısı 1
Led Arka Isigi Evet
Marka Acer
Mikrofon Adedi 2
Mobil Ag Bağlantısi Hayir
Dahili Grafik Bağdaştırıcı Modeli AMD Radeon R3
On Kamera Evet
On Kamera Çözünürlüğü 640 x 480 Piksel
Optik Sürücüler Hayir
Panel Tipi LCD
Pazar Konumlandirmasi İş
Pil Kapasitesi 36 Wh
Pil Ömrü 5,5 Saat
Pil Sayısı 2
Pil Teknolojisi Lityum-İyon (Li-Ion)
Ram 4 GB
Sayısal Tuş Takımı Evet
Sert Durum Disk Sürücü Kapasite 128 GB
Sert Durum Disk Sürücüsü Arayuzleri PCI Express
Sifre Koruma BIOS, Süpervisör, Kullanıcı
Sifre Korumasi Evet
Tam Boyutlu Klavye Evet
Toplam Depolama Kapasitesi 128 GB
Ürün Adi A315-22-439R
Ürün Ailesi Aspire
Ürün Kodu NX.HE8ET.00L
Ürün Rengi Siyah
Ürün Tipi Laptop
Wi Fi Standardi Wi-Fi 5 (802.11ac)
Yansimasiz Ekran Evet
Doğal En-Boy Oranı 16:9
Yerlesik Grafik Bagdastirici Ailesi AMD Radeon R3
Yükseklik 19,9 mm

Ekran

Ekran Boyutu 39,6 cm (15.6")

Isletim Sistemi

İşletim Sistemi Hayir

RAM

Bellek Kapasitesi 16 GB
