ASUS

LAPTOP ⚡ Intel Atom® N2600 Netbook, 1,6 GHz, 2 Cores

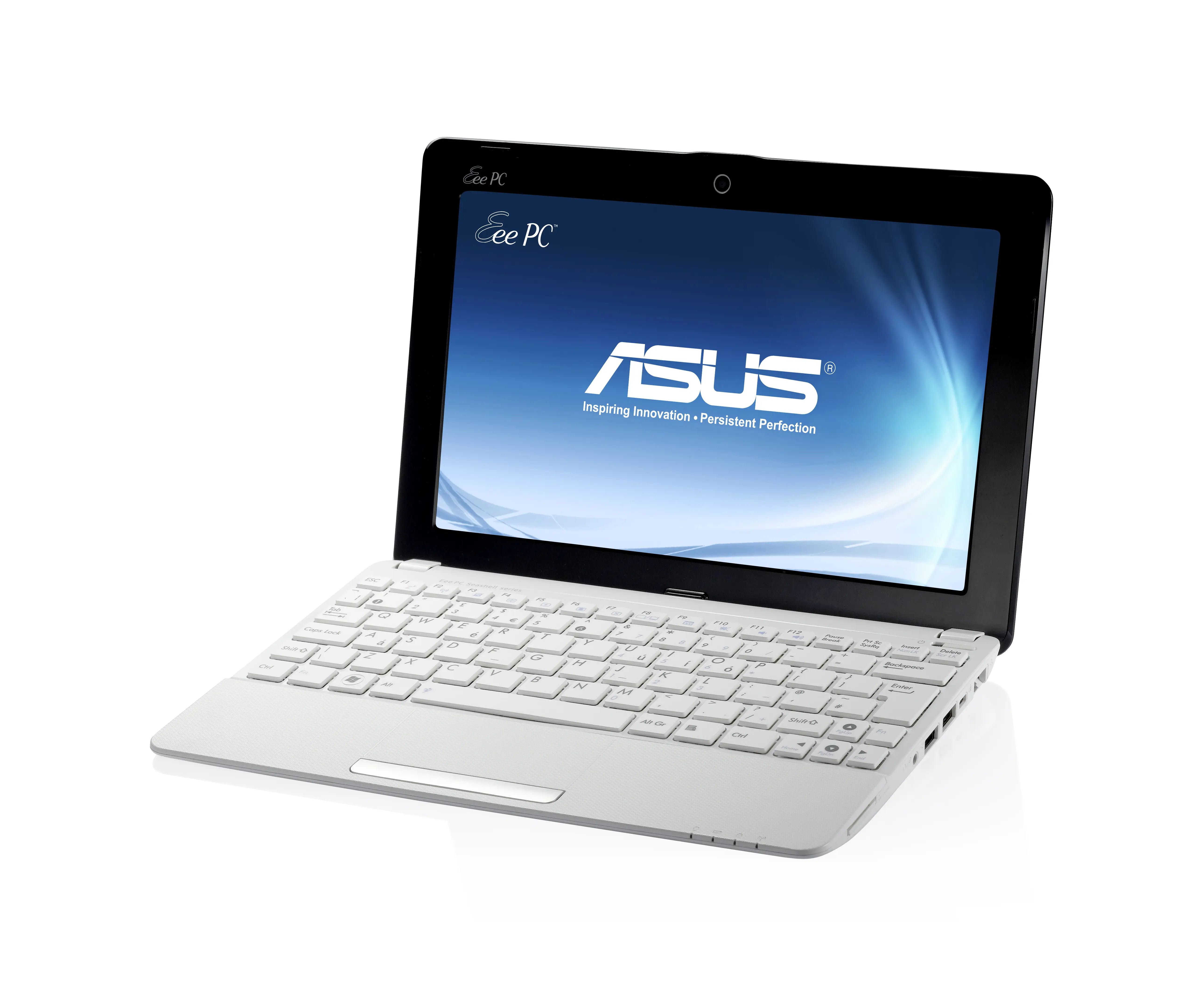

ASUS 1011CX 90OA3SB12111A81E239

Hardware specifications and upgrade assessment

Processor (CPU)

Intel Atom® N2600 Netbook

1,6 GHz

Maximaler Arbeitsspeicher

Not specified in source

Not specified in source DDR3 · Not specified in source

Primäre Schnittstelle

Not specified in source

Battery & Charger

48 Wh

30 W AC Adapter

⚡ Architecture & Upgrade Diagnostics

Source Timing & Interface Data

Processor ● Installed

⚡ Intel Atom® N2600 Netbook

Intel Atom® N2600 Netbook, 1,6 GHz, 2 Cores

Max Turbo: 1,6 GHz

Cores: 2

Memory Architecture ● Aufrüstbar

🧠 Not specified in source DDR3 On-board

Device record: DDR3 On-board at 800 MHz up to Not specified in source.

Base Installed: N/A

Max Supported: Not specified in source

Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: 320 GB

Clearance: Not specified in source

Battery & Power ● Source record

🔋 48 Wh

Lityum-İyon (Li-Ion) paired with 30 W AC adapter for fast recharging.

Battery Capacity: 48 Wh

Charger Rating: 30 W

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

ℹ️

Everyday use and integrated graphics

Assess memory needs using your applications and current memory usage. Check device documentation for dual-channel support and recommended population; suitability of 2×8 GB or another configuration depends on model capacity and slot support.

Upgrade candidates

Products on this page: 0

OEM Hardware Specification Part number verification required

🔋 ASUS 48 Wh Lityum-İyon (Li-Ion) Internal Battery

This laptop is engineered with a 48 Wh Lityum-İyon (Li-Ion) internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →

No compatible components currently listed.

Source specifications 256 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Body

Weight 1.25 kg

Processor

FSB Parity No

Stepping B3

Thermal Design Power (TDP) 3.5 W

Processor frequency 1.6 GHz

ECC supported by processor No

Processor cores 2

Processor model N2600

Processor family Intel Atom®

Processor manufacturer Intel

Processor threads 4

System bus rate 2.5 GT/s

Processor cache 1 MB

Processor socket BGA 559

Processor cache type L2

Processor lithography 32 nm

Processor operating modes 64-bit

Processor series Intel Atom N2600 Series

Processor codename Cedarview

Bus type DMI

Ports & interfaces

Combo headphone/mic port Yes

Ethernet LAN (RJ-45) ports 1

DC-in jack Yes

HDMI ports quantity 1

DVI port No

S/PDIF out port No

ExpressCard slot No

USB 2.0 ports quantity 3

CardBus PCMCIA slot type No

Microphone in Yes

SmartCard slot No

Headphone outputs 1

TV-out No

VGA (D-Sub) ports quantity 1

Docking connector Yes

Technical details

Sustainability certificates ENERGY STAR

Processor special features

Intel Enhanced Halt State No

Intel VT-x with Extended Page Tables (EPT) No

Intel Demand Based Switching No

Intel® Small Business Advantage (Intel® SBA) No

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) No

Intel® Smart Response Technology No

Execute Disable Bit Yes

Thermal Monitoring Technologies Yes

Supported instruction sets SSE2, SSE3, SSSE3

Processor code SR0W2

Embedded options available Yes

Intel Virtualization Technology for Directed I/O (VT-d) No

Intel Virtualization Technology (VT-x) No

Intel Dual Display Capable Technology No

Intel FDI Technology No

Intel Rapid Storage Technology No

Processor ARK ID 58916

Conflict-Free processor No

Intel® Wireless Display (Intel® WiDi) No

Intel® My WiFi Technology (Intel® MWT) No

Intel® Anti-Theft Technology (Intel® AT) No

Intel® Identity Protection Technology (Intel® IPT) No

Intel® Turbo Boost Technology No

Intel® Clear Video HD Technology (Intel® CVT HD) No

Intel Clear Video Technology No

Intel® InTru™ 3D Technology No

Physical Address Extension (PAE) Yes

Intel® Quick Sync Video Technology No

Intel Trusted Execution Technology No

Camera

Front camera Yes

Front camera resolution (numeric) 0.3 MP

Performance

LED backlight Yes

Product type Netbook

Motherboard chipset Intel NM10

Compatible memory cards MMC, SD, SDHC

GPS (satellite) No

Memory

Internal memory 1 GB

Memory clock speed 800 MHz

Internal memory type DDR3-SDRAM

Memory layout (slots x size) 1 x 1 GB

Graphics

Graphics card GMA 3600

Discrete graphics card No

Discrete graphics card model Not available

On-board graphics card Yes

On-board graphics card base frequency 400 MHz

Storage

Optical drive type No

Total storage capacity 320 GB

HDD interface SATA

Storage media HDD

Card reader integrated Yes

Network

Ethernet LAN Yes

Cabling technology 10/100Base-T(X)

Ethernet LAN data rates 10,100 Mbit/s

Wi-Fi standards 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Audio

Built-in microphone Yes

Genel

Satılan Pazarlar CZ

Sisteme Eklenme Tarihi 2012-03-08

Design

Product colour White

Form factor Clamshell

Software

Operating system installed Windows 7 Starter

Operating system architecture 32-bit

Weight & dimensions

Width 262 mm

Depth 178 mm

Height (front) 2.36 cm mm

Height (rear) 3.64 cm mm

Other features

Networking features Fast Ethernet, WLAN

Graphics card family Intel

Battery

Battery capacity 4400 mAh

Number of battery cells 6

Battery life (max) 11 h

Battery technology Lithium-Ion (Li-Ion)

Hard drive

HDD capacity 320 GB

HDD speed 5400 RPM

Power

AC adapter power 30 W

Keyboard

Numeric keypad No

Pointing device Touchpad

Windows keys Yes

Display

Display diagonal 25.6 cm (10.1")

Display resolution 1024 x 600 pixels

Touchscreen No

Native aspect ratio 5:3

HD type Not supported

3D No

Packaging content

Cables included AC

AC adapter included Yes

Features

Memory form factor On-board

Security

Fingerprint reader No

Teknik

3D Uyumu Hayır

AC Adaptor Gücü 30 W

AC Sarma Adaptor Evet

Ag Arabirimi Fast Ethernet, WLAN

Ağırlık 1,25 kg

Atlama B3

Ayrik Ekran Kartı Modeli Mevcut değil

Ayrik Grafik Bagdastirici Hayır

Bellek Düzeni 1 x 1 GB

Birlesik Kulaklik Mikrofon Portu Evet

Bluetooth No

Bluetooth Versiyonu Hayır

Dahili Bellek Tipi DDR3-SDRAM

Dahili Mikrofon Evet

Dahili Sabit Disk Sürücüsü 320 GB

Depolama Ortami HDD

Derinlik 178 mm

Desteklenen Yonerge Setleri SSE2, SSE3, SSSE3

Yürütmeyi Devre Dışı Bırakma Biti (Execute Disable Bit) Evet

Dokunmatik Ekran Hayır

Ekran Çözünürlüğü 1024 x 600 Piksel

Ekspres Kart Yuvası Hayır

Enhanced Intel Speedstep Technology Yes

Entegre Grafik Kartı Evet

Entegre Kart Okuyucu Evet

Ethernet LAN Bağlantısı Evet

Ethernet LAN Rj 45 Port Sayısı 1

Ethernet LAN Veri Transfer Hızı 10,100 Mbit/s

Fis Ici Dc Evet

Fiziksel Adres Genisletme Evet

Form Faktörü Kapaklı

Fsb Paritesi Hayır

Genişletilmiş Sayfa Tabloları ile Intel VT-x (EPT) Hayır

Genişlik 262 mm

Gömülü Secenekler Mevcut Evet

Gps Hayır

Grafik Adaptor Ailesi Intel

Gtin Ean Upc 4716659039938

Hafiza Frekans Hızı 800 MHz

Hafiza Sekli Faktoru On-board

Hd Türü Desteklenmez

Hdmi Port Sayısı 1

Intel 64 Yes

Intel Aes New Instructions Intel Aes Ni No

Intel Akilli Is Avantaji Intel Sba Hayır

Intel Akilli Yanit Teknolojisi Hayır

Intel Clear Video Hd Teknoloji Intel Cvt Hd Hayır

Intel Clear Video Teknolojisi Hayır

Intel Dual Display Capable Tecknoloji Hayır

Intel Fast Memory Access No

Intel Fdi Teknoloji Hayır

Intel Flex Memory Access No

Intel Güvenilir Yürütme Teknolojisi Hayır

Intel Hirsizliga Karsi Teknolojisi Intel At Hayır

Intel Hizli Depolama Teknolojisi Hayır

Intel Hyper Threading Technology Intel Ht Technology Yes

Intel Insider No

Intel Intru 3D Teknolojisi Hayır

Intel Kablosuz Ekran Teknolojisi Intel Widi Hayır

Intel Kimlik Koruma Teknolojisi Intel Ipt Hayır

Intel My Wifi Technojisi Intel Mwt Hayır

Intel Quick Sync Video Teknolojisi Hayır

Intel Sanallaştırma Teknolojisi (VT-x) Hayır

Intel Talep Tabanli Acma Kapama Hayır

Intel Turbo Boost Teknolojisi Hayır

Intel Zenginlestirilmis Sonlandirma Durumu Hayır

Isaret Aygiti Dokunmalı tablet

İşlemci Intel Atom® N2600 Netbook

İşlemci Ark Idsi 58916

İşlemci Çalışma Modlari 64-bit

Toplam Çekirdek Sayısı 2

İşlemci Frekansı 1,6 GHz

İşlemci Kod Adi Cedarview

İşlemci Kodu SR0W2

İşlemci Litografi 32 nm

İşlemci On Bellek Türü L2

İşlemci Önbelleği 1 MB

İşlemci Tarafindan Desteklenen Ecc Hayır

İşlemci Üreticisi Intel

Isletme Sistemi Mimarisi 32-bit

Kablo Teknolojisi 10/100Base-T(X)

Kategori Laptops

Kulaklik Cikti Sayısı 1

Led Arka Isigi Evet

Marka ASUS

Masa Ustu Sarj Cihazı Evet

Mid Icin Intel Net Video Teknolojisi Intel Cvt For Mid Hayır

Mikrofon Giriş Fisi Evet

Model Serisi 1

On Kamera Evet

On Kamera Çözünürlüğü 1,2 MP

Optik Sürücüler Hayır

Otobus Tipi DMI

Parmak Izi Okuyucu Hayır

Pil Kapasitesi 48 Wh

Pil Ömrü 11 Saat

Pil Performansi 4400 mAh

Pil Sayısı 6

Pil Teknolojisi Lityum-İyon (Li-Ion)

Ram 1 GB

S Pdif Çıkışı Hayır

Sabit Bellek Arayüzü SATA

Sabit Disk Sürücüsü Hızı 5400 RPM

Sayısal Tuş Takımı Hayır

Sıralı İşlemci Sayısı 4

Sistem Busu 2,5 GT/s

Smartcard Yuvası Hayır

Surdurulebilirlik Sertifikaları ENERGY STAR

Termal Gozleme Teknolojileri Evet

Termal Tasarim Gücü 3,5 W

Toplam Depolama Kapasitesi 320 GB

Tv Çıkışı Hayır

Üretim Tarihi 2012

Ürün Adi 1011CX

Ürün Kodu 90OA3SB12111A81E239

Ürün Rengi Beyaz

Ürün Tipi Netbook

Usb 2 Bağlantı Noktasi Sayısı 3

Uyumlu Hafiza Kartları MMC, SD, SDHC

Uyumlu Ram RAM arttırımı desteklenmiyor: LPDDR/On-board (lehimli bellek).

Uyusum Sorunsuz İşlemci Hayır

Video Adaptoru Sürücüsü GMA 3600

Wi Fi Yes

Wi Fi Standardi Evet

Windows Tuslari Evet

Doğal En-Boy Oranı 5:3

Yerlesik Grafik Adaptoru Taban Frekansı 400 MHz

Yönlendirilmiş G/Ç için Intel Sanallaştırma Teknolojisi (VT-d) Hayır

Yükseklik Arkadan 3,64 cm

Yükseklik Onden 2,36 cm

Diğer Özellikler

Chipset Intel NM10

Ekran

Ekran Boyutu 21,2 cm (10.1")

Isletim Sistemi

İşletim Sistemi Windows 7 Starter
