DirectUpgrades Verified Hardware
ASUS EeeBox PC EB1021-B020E 2 GB ASUS
MASAüSTü AMD E E-350, 1,6 GHz, 2 Cores

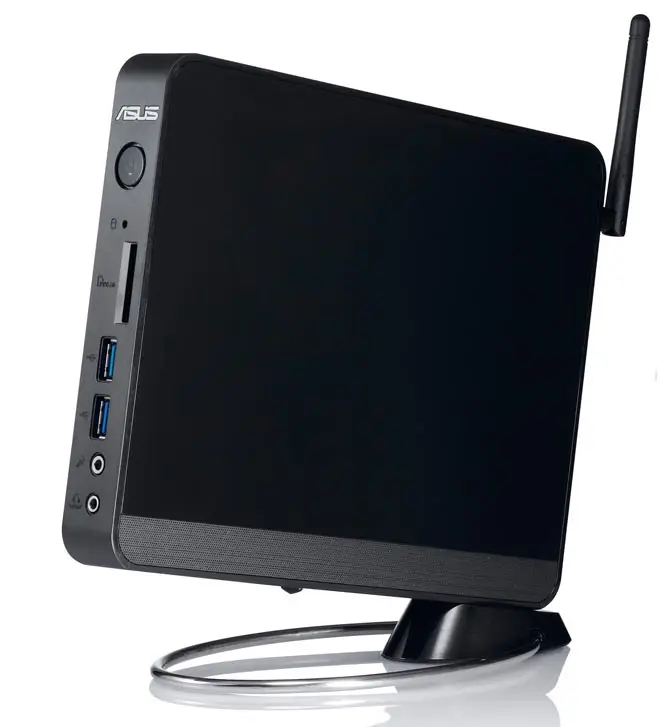

ASUS EeeBox PC EB1021-B020E 2 GB

Hardware specifications and upgrade assessment

Processor (CPU)
E-350
1,6 GHz
Device maximum RAM
4 GB
2x SO-DIMM DDR3 · Onboard / yükseltilemez · CPU 8 GB @ Not specified in source (çip külliyatı)
Primäre Schnittstelle
Not specified in source
Battery & Charger
OEM Battery
Standard AC

Architecture & Upgrade Diagnostics

Source Timing & Interface Data
Processor ● Installed

⚡ E-350

AMD E E-350, 1,6 GHz, 2 Cores

Max Turbo: 1,6 GHz
Cores: 2
Memory Architecture ● Aufrüstbar

🧠 2x SO-DIMM DDR3

Device record: DDR3 at 1333 MHz up to 4 GB.

Base Installed: 2 GB
Max Supported: 4 GB
CPU theoretical limit: 8 GB
Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: 250 GB
Clearance: Not specified in source
Battery & Power ● Source record

🔋 Internal Battery

High density battery paired with rapid AC adapter for fast recharging.

Battery Capacity: N/A
Charger Rating: N/A
ℹ️

Slot and capacity note

Source slot information: 2x SO-DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 ASUS High Capacity Li-Polymer Internal Battery

This laptop is engineered with a high performance Li-Polymer internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →
No compatible components currently listed.
Source specifications 67 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Genel

Sisteme Eklenme Tarihi 2011-05-04

Bağlantı

USB 2.0 bağlantı noktası sayısı 4
S/PDIF çıkışı Evet
USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı 2

Teknik

Ag Arabirimi Gigabit Ethernet
Ağırlık 1,17 kg
Bellek Düzeni 1 x 2 GB
Bellek Yuvası Sayısı 2x SO-DIMM
Brand ASUS
Category PC'ler/Iş Istasyonları
Dahili Bellek Tipi DDR3-SDRAM
Dahili Sabit Disk Sürücüsü 250 GB
Depolama Ortami HDD
Derinlik 223 mm
Dvi Bağlantı Noktasi Hayir
Ekran Icinde Hayir
Entegre Grafik Kartı Evet
Entegre Kart Okuyucu Evet
Ethernet LAN Bağlantısı Evet
Ethernet LAN Rj 45 Port Sayısı 1
Ethernet LAN Veri Transfer Hızı 10,100,1000 Mbit/s
Genişlik 178 mm
Gtin Ean Upc 4719543384503
Güç Gereksinimleri 40 W
Hafiza Frekans Hızı 1333 MHz
İşlemci E-350
İşlemci Ailesi AMD E
Toplam Çekirdek Sayısı 2
İşlemci Frekansı 1,6 GHz
İşlemci Üreticisi AMD
Isletme Sistemi Mimarisi 64-bit
Kablo Teknolojisi 10/100/1000Base-T(X)
Kasa Küçük Masaüstü
Kategori PC'ler/Iş Istasyonları
Kulaklik Cikti Sayısı 1
Marka ASUS
Mikrofon Giriş Fisi Evet
Dahili Grafik Bağdaştırıcı Modeli AMD Radeon HD 6310
Optik Sürücüler Hayir
Product Family EeeBox PC
Product Name EB1021-B020E
Product Series 1
Ram 2 GB
S Pdif Çıkışı Evet
Sabit Bellek Arayüzü SATA II
Sabit Disk Boyutu 2.5"
Sabit Disk Sürücüsü Hızı 5400 RPM
Toplam Depolama Kapasitesi 250 GB
Üretim Tarihi 2011
Ürün Adi EB1021-B020E
Ürün Ailesi EeeBox PC
Ürün Kodu EB1021-B020E
Ürün Rengi Siyah
Ürün Tipi Mini PC
Usb 2 Bağlantı Noktasi Sayısı 4
Usb 3 2 Gen 1 3 1 Gen 1 Tip A Port Sayısı 2
Uyumlu Hafiza Kartları MMC, SD, SDHC, SDXC
Uzaktan Kumanda Hayir
Vga D Sub Bağlantı Noktasi Sayısı 1
Wi Fi Evet
Yerlesik Grafik Bagdastirici Ailesi AMD Radeon HD 6000
Yuklu İşlemcilerin Sayısı 1
Yuklu Sabit Disk Sayısı 1
Yükseklik 27 mm

Diğer Özellikler

Chipset AMD A50M

Isletim Sistemi

İşletim Sistemi Windows 7 Home Premium

RAM

Bellek Kapasitesi 4 GB
