DirectUpgrades Verified Hardware
DELL PowerEdge R6525 480 GB R6525-3133 DELL
SERVER AMD EPYC 7302, 16 Cores

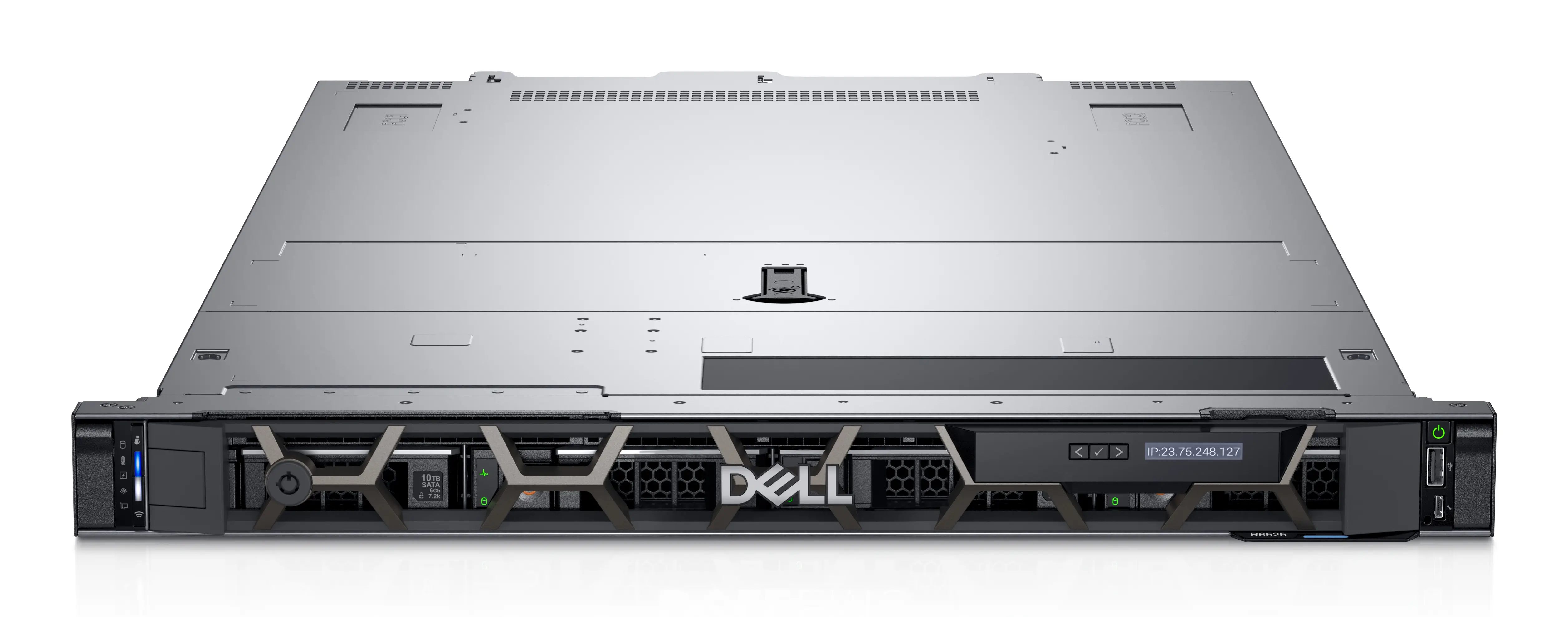

DELL PowerEdge R6525 480 GB R6525-3133

Hardware specifications and upgrade assessment

Processor (CPU)
7302
16 Cores
Device maximum RAM
256 GB
32 DDR4 · Onboard / yükseltilemez · CPU 4096 GB @ Not specified in source (çip külliyatı)
Primäre Schnittstelle
Not specified in source SATA
SATA
Battery & Charger
OEM Battery
Standard AC

Architecture & Upgrade Diagnostics

Source Timing & Interface Data
Processor ● Installed

⚡ 7302

AMD EPYC 7302, 16 Cores

Max Turbo: N/A
Cores: 16
Memory Architecture ● Aufrüstbar

🧠 32 DDR4

Device record: DDR4 at Not specified in source up to 256 GB.

Base Installed: 16 GB
Max Supported: 256 GB
CPU theoretical limit: 4096 GB
Storage Architecture ● Source record

💾 Not specified in source SATA

Recorded interface: SATA. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: 480 GB
Clearance: Not specified in source
Battery & Power ● Source record

🔋 Internal Battery

High density battery paired with rapid AC adapter for fast recharging.

Battery Capacity: N/A
Charger Rating: N/A
ℹ️

Slot and capacity note

Source slot information: 32. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 DELL High Capacity Li-Polymer Internal Battery

This laptop is engineered with a high performance Li-Polymer internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →
No compatible components currently listed.
Source specifications 60 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Bağlantı

USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı 1
USB 2.0 bağlantı noktası sayısı 1

Genel

Sisteme Eklenme Tarihi 2019-12-19

Teknik

Bellek Düzeni 1 x 16 GB
Bellek Yuvası Sayısı 32
Calisirken Takma Desteği Evet
Çalışma Isısı Aralığı 10 - 35 °C
Çalışma Yüksekliği 0 - 3048 m
Çalışmama Nemi 5 - 95%
Çalışmama Yüksekliği 0 - 12000 m
Calistirma Nem Aralığı 8 - 80%
Dahili Bellek Tipi DDR4-SDRAM
Depolama Sıcaklığı Aralığı Celsius -40 - 65 °C
Desteklenen Raid Kontrol Birimleri PERC H345
Desteklenen Sabit Sürücü Sayısı 4
Destekli Hard Disk Sürücüsü Boyutlari 3.5"
Entegre Grafik Kartı Hayir
Ethernet Arayuz Türü 10 Gigabit Ethernet
Ethernet LAN Bağlantısı Evet
Gecici Bellek Tipi Registered (buffered)
Genişlik 482 mm
Gtin Ean Upc 5397184363133
Güç Gereksinimleri 800 W
Hafiza Siralama 2
Hafiza Veri Aktarim Hızı 3200 MT/s
İletişim Seri Bağlantı Noktalari 1
İşlemci 7302
İşlemci Ailesi AMD EPYC
Toplam Çekirdek Sayısı 16
İşlemci Destek Frekansı 3,3 GHz
İşlemci Frekansı 3 GHz
İşlemci On Bellek Türü L3
İşlemci Önbelleği 128 MB
İşlemci Üreticisi AMD
Kablo Teknolojisi 10/100/1000Base-T(X)
Kasa Yatay (1U)
Kategori Sunucular
Kurulan Ssd Sayısı 1
Lan Kontroloru Broadcom 57412
Marka DELL
Dahili Grafik Bağdaştırıcı Modeli Mevcut değil
Pakete Dahil Kablolar AC
Raid Desteği Hayir
Ram 16 GB
Sert Durum Disk Sürücü Kapasite 480 GB
Sert Durum Disk Sürücüsü Arayuzleri SATA
Sıralı İşlemci Sayısı 32
Toplam Depolama Kapasitesi 480 GB
Ürün Adi R6525
Ürün Ailesi PowerEdge
Ürün Kodu R6525-3133
Ürün Rengi Siyah
Uyumlu İşletim Sistemi - Canonical Ubuntu Server LTS - Microsoft Windows Server with Hyper-V - Red Hat Enterprise Linux - SUSE Linux Enterprise Server - VMware
Uzaktan Yonetim iDRAC9 Enterprise X5
Vga D Sub Bağlantı Noktasi Sayısı 2
Yedek Güç Kaynagi Evet
Yuklu İşlemcilerin Sayısı 1
Yükseklik 42,8 mm

Isletim Sistemi

İşletim Sistemi Hayir

RAM

Bellek Kapasitesi 256 GB
