DirectUpgrades Verified Hardware

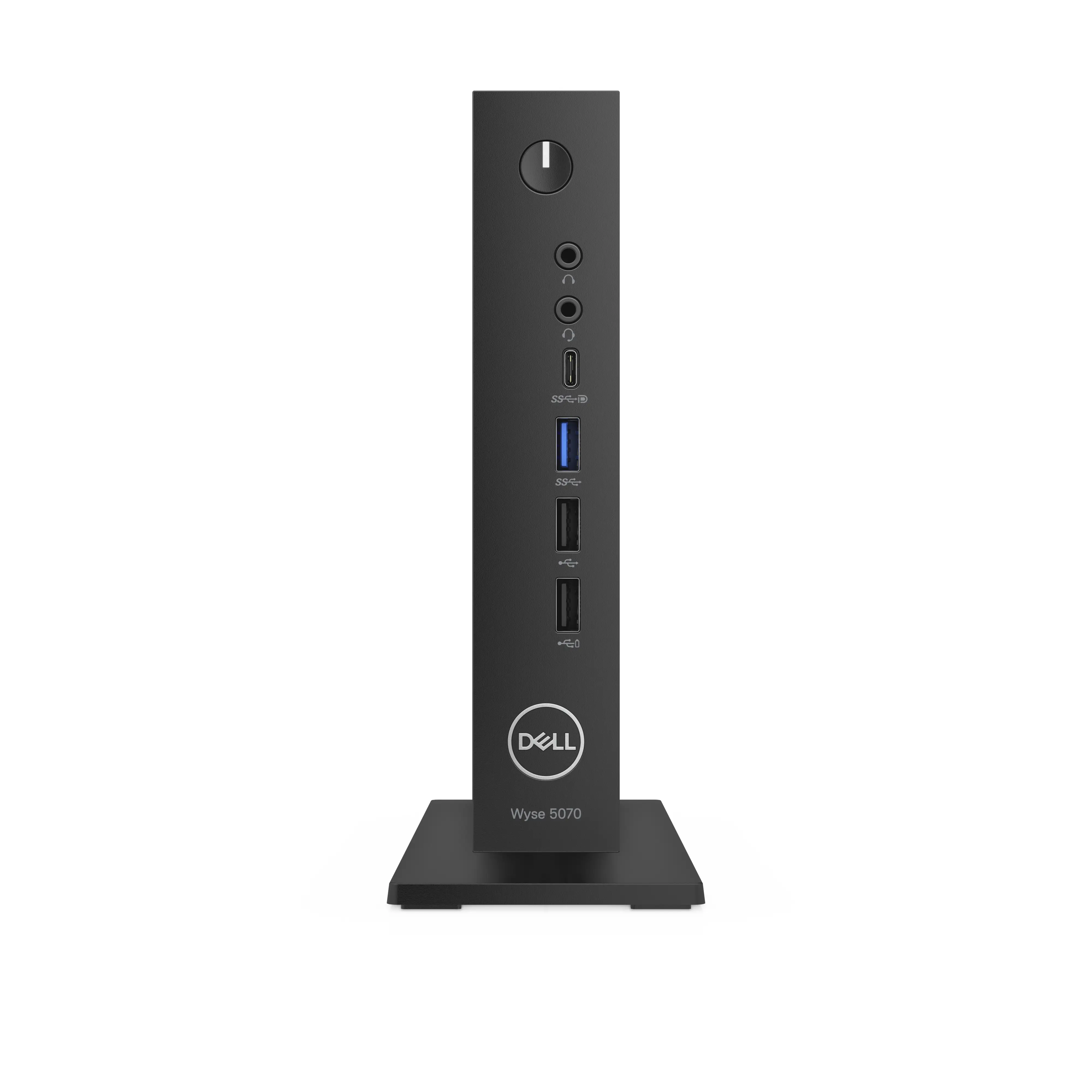

Dell Wyse 5070 5 GHz 483F5 Dell Wyse
THIN CLIENTS/BLADE PCS Intel® Celeron® J4105, 4 Cores

Dell Wyse 5070 5 GHz 483F5

Hardware specifications and upgrade assessment

Processor (CPU)
J4105
4 Cores
Device maximum RAM
8 GB
2x SO-DIMM DDR4 · Onboard / yükseltilemez · CPU 8 GB @ Not specified in source (çip külliyatı)
Primäre Schnittstelle
Not specified in source
Battery & Charger
OEM Battery
Standard AC

Architecture & Upgrade Diagnostics

Source Timing & Interface Data
Processor ● Installed

⚡ J4105

Intel® Celeron® J4105, 4 Cores

Max Turbo: N/A
Cores: 4
Memory Architecture ● Aufrüstbar

🧠 2x SO-DIMM DDR4

Device record: DDR4 at Not specified in source up to 8 GB.

Base Installed: 4 GB
Max Supported: 8 GB
CPU theoretical limit: 8 GB
Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: 32 GB
Clearance: Not specified in source
Battery & Power ● Source record

🔋 Internal Battery

High density battery paired with rapid AC adapter for fast recharging.

Battery Capacity: N/A
Charger Rating: N/A
ℹ️

Slot and capacity note

Source slot information: 2x SO-DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 Dell Wyse High Capacity Li-Polymer Internal Battery

This laptop is engineered with a high performance Li-Polymer internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →
No compatible components currently listed.
Source specifications 65 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Genel

Sisteme Eklenme Tarihi 2020-11-04

Bağlantı

USB 2.0 bağlantı noktası sayısı 2
USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı 5
Birleşik kulaklık/mikrofon portu Evet

Teknik

AC Giriş Frekansı 50 - 60 Hz
AC Giriş Voltajı 100 - 240 V
Ağırlık 1,13 kg
Ambalaj Derinliği 238 mm
Ambalaj Genişliği 473 mm
Ambalaj Yüksekliği 94 mm
Bellek Yuvası Sayısı 2x SO-DIMM
Birlesik Kulaklik Mikrofon Portu Evet
Brand Dell Wyse
Çalışma Isısı Aralığı 0 - 40 °C
Category Thin Clients/Blade Pcs
Dahili Bellek Tipi DDR4-SDRAM
Dahili Ses Realtek ALC3253
Depolama Ortami eMMC
Depolama Sıcaklığı Aralığı Celsius -40 - 70 °C
Derinlik 184 mm
Displayport 2
Ekran Icinde Hayir
Entegre Kart Okuyucu Hayir
Ethernet LAN Bağlantısı Evet
Ethernet LAN Rj 45 Port Sayısı 1
Fis Ici Dc Evet
Genişlik 35,6 mm
Gtin Ean Upc 5397184470183
Güç Gereksinimleri 65 W
Guvenli Platform Modulu Tpm Evet
Harici Güç Adaptoru Evet
İletişim Seri Bağlantı Noktalari 1
İşlemci J4105
İşlemci Ailesi Intel® Celeron®
Toplam Çekirdek Sayısı 4
İşlemci Destek Frekansı 2,5 GHz
İşlemci Frekansı 1,5 GHz
İşlemci Önbelleği 4 MB
İşlemci Üreticisi Intel
İşletim Sistemi Dili Çok dilli
Kablo Teknolojisi 10/100/1000Base-T(X)
Kategori Thin Clients/Blade Pcs
Kulaklik Cikti Sayısı 1
Marka Dell Wyse
Dahili Grafik Bağdaştırıcı Modeli Intel® UHD Graphics 600
Paket Ağırlığı 1,76 kg
Pakete Dahil Kablolar AC
Product Name 5070
Product Series 1
Ram 4 GB
Sadece Secili Pazarlarda Fare Dahil Evet
Stand Dahildir Evet
Toplam Depolama Kapasitesi 32 GB
Üretim Tarihi 2020
Ürün Adi 5070
Ürün Kodu 483F5
Ürün Rengi Siyah
Usb 2 Bağlantı Noktasi Sayısı 2
Usb 3 2 Gen 1 3 1 Gen 1 Tip A Port Sayısı 5
Usb Tip C Port Sayısı 1
Vesa Montaji Evet
Wi Fi Hayir
Yükseklik 184 mm

Isletim Sistemi

İşletim Sistemi Windows 10 IoT

RAM

Bellek Kapasitesi 8 GB
