Epson
LAZER YAZıCı
⚡ , 400 MHz

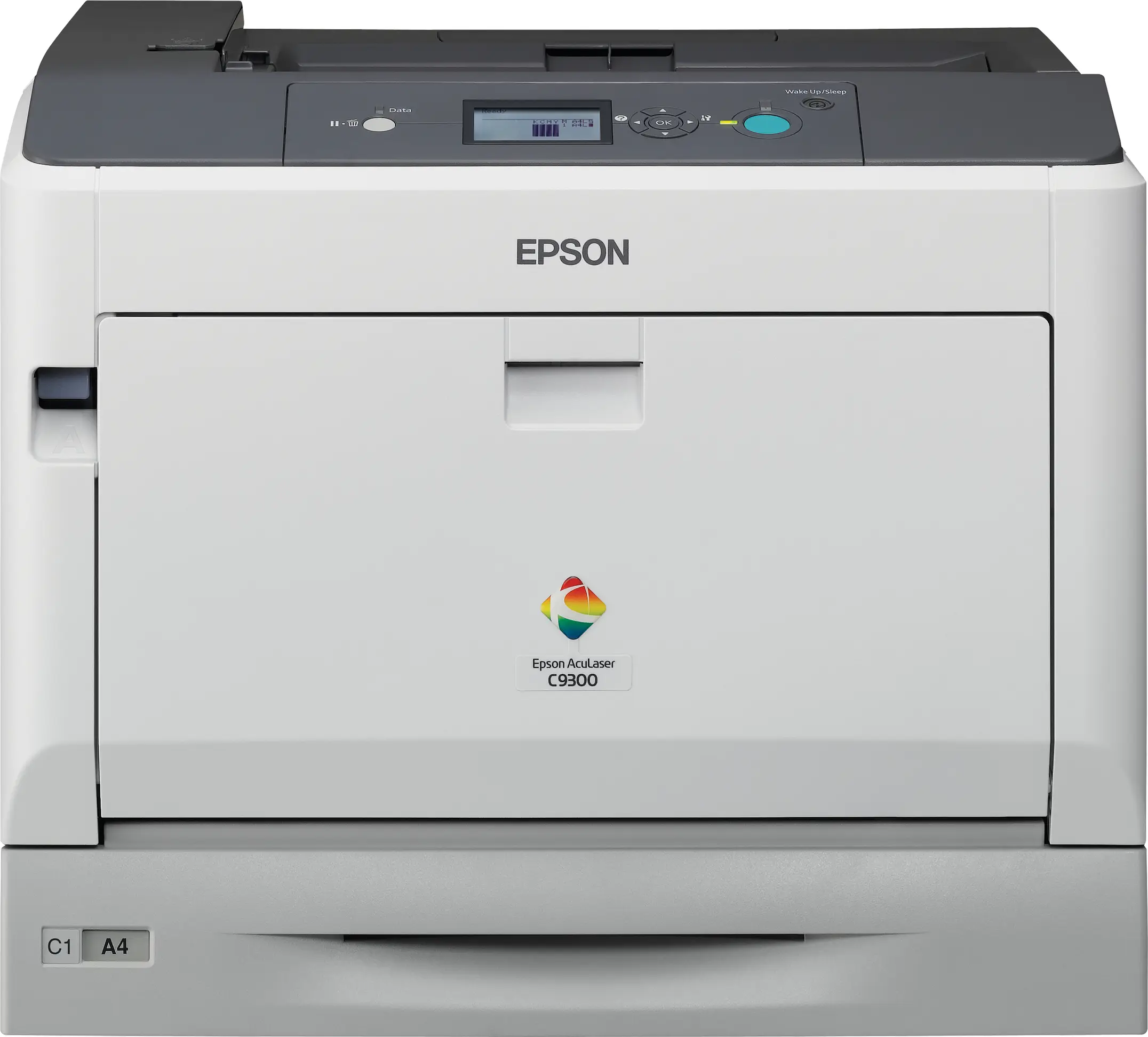

Epson Epson AcuLaser C9300N C11CB52011
Hardware specifications and upgrade assessment
Processor (CPU)
OEM CPU
400 MHz
Device maximum RAM
1024 MB
Not specified in source · Onboard / yükseltilemez · CPU Not specified in source @ Not specified in source (çip külliyatı)
Primäre Schnittstelle
Not specified in source
Battery & Charger
OEM Battery
Standard AC
⚡ Architecture & Upgrade Diagnostics
Source Timing & Interface Data
Processor
● Installed
⚡ OEM CPU
, 400 MHz
Max Turbo:
400 MHz
Memory Architecture
● Aufrüstbar
🧠 Not specified in source
Device record: at Not specified in source up to 1024 MB.
Base Installed:
256 MB
Max Supported:
1024 MB
CPU theoretical limit:
Not specified in source
Storage Architecture
● Source record
💾 Not specified in source
Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.
Installed SSD:
N/A
Clearance:
Not specified in source
Battery & Power
● Source record
🔋 Internal Battery
High density battery paired with rapid AC adapter for fast recharging.
Battery Capacity:
N/A
Charger Rating:
N/A
Upgrade candidates
Products on this page: 0
Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.
OEM Hardware Specification
Part number verification required
🔋 Epson High Capacity Li-Polymer Internal Battery
This laptop is engineered with a high performance Li-Polymer internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.
No compatible components currently listed.
Source specifications
190 parameters found
📋 Hardware Technical Specifications
Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.
Body
Weight
41 kg
Memory
Internal memory
256 MB
Maximum internal memory
1024 MB
System requirements
Server operating systems supported
Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64
Paper handling
ISO A-series sizes (A0...A9)
A3, A4, A5, A6
Paper tray media types
Envelopes, Plain paper
Maximum print size
297 x 420 mm
ISO B-series sizes (B0...B9)
B4, B5
ISO C-series sizes (C0...C9)
C5, C6
Non-ISO print media sizes
Executive, Legal, Letter
Envelopes sizes
10, C5, C6, DL
Paper tray media weight
60 - 216 g/m²
Maximum ISO A-series paper size
A3
Packaging content
Software CD
Yes
Documentation CD
Yes
Quick start guide
Yes
Manual
Yes
Cables included
AC
Network
Network ready
Yes
Ethernet LAN
Yes
Cabling technology
10/100/1000Base-T(X)
Ethernet LAN data rates
10,100,1000 Mbit/s
Supported network protocols (IPv4)
LPR, FTP, IPP, Connector 9100, WSD, AppleTalk
Graphics
Maximum resolution
4800 x 1200 DPI
Performance
Warm-up time
20 s
Sound pressure level (printing)
53 dB
Sound power level (standby)
25 dB
Operating temperature (T-T)
5 - 32 °C
Built-in processor
Yes
Printing
Print speed (black, normal quality, A4/US Letter)
30 ppm
Print speed (colour, normal quality, A4/US Letter)
30 ppm
Time to first page (black, normal)
8 s
Time to first page (colour, normal)
10 s
Packaging data
Package weight
55 kg
Quantity per pack
1 pc(s)
Package width
520 mm
Package depth
740 mm
Package height
635 mm
Ports & interfaces
USB connector
USB Type-B
Optional connectivity
Parallel
Features
Maximum duty cycle
100000 pages per month
Printing colours
Black, Cyan, Magenta, Yellow
Country of origin
China
Number of print cartridges
4
Page description languages
Epson ESC/P2, Epson FX, PCL 5c, PCL 6, PDF 1.6, PostScript 3
Windows operating systems supported
Windows 7, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Input & output capacity
Total input capacity
250 sheets
Total output capacity
150 sheets
Multi-Purpose tray
Yes
Multi-Purpose tray input capacity
155 sheets
Paper input type
Paper tray
Maximum input capacity
2055 sheets
Total number of input trays
1
Protocols
Management protocols
SNMP, HTTP, DHCP, BOOTP, APIPA, DDNS, mDNS, SNTP, SSDP, ENPC, SLP, WSD, LLTD, Ping
Genel
Satılan Pazarlar
NL, BE, CZ, FR, DE, PT, ES, HU, IT, PL, AT, GB, DK, TR, CH, SE, NO, UA, US, WW, LU, FI, RO, EE
Sisteme Eklenme Tarihi
2012-01-21
Garanti Süresi / Detayı
1 year
Camera
Mac operating systems supported
Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard
Software
Drivers included
Yes
Design
Product colour
Black, White
Display number of lines
5 lines
Other features
Colour
Yes
Print technology
Laser
Linux operating systems supported
Yes
Storage temperature (T-T)
0 - 35 °C
Standard interfaces
Ethernet, USB 2.0
Built-in display
Yes
Weight & dimensions
Width
500 mm
Depth
538 mm
Height
422 mm
Logistics data
Products per pallet
4 pc(s)
Pallet gross length
120 cm mm
Pallet gross width
80 cm mm
Pallet gross height
2.23 m mm
Products per pallet layer
1 pc(s)
Products per pallet layer (UK)
1 pc(s)
Products per pallet (UK)
4 pc(s)
Pallet length (UK)
120 cm mm
Pallet width (UK)
100 cm mm
Pallet height (UK)
2.23 m mm
Power
AC input voltage
220 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (printing)
458 W
Power consumption (max)
1020 W
Power consumption (ready)
56 W
Current rating
4.7 A
Operational conditions
Operating relative humidity (H-H)
15 - 85%
Storage relative humidity (H-H)
15 - 85%
Technical details
Sustainability certificates
ENERGY STAR
Processor
Processor frequency
400 MHz
Teknik
AC Giriş Frekansı
50 - 60 Hz
AC Giriş Voltajı
220 - 240 V
Aga Baglanmaya Hazir
Evet
Ağırlık
41 kg
Ambalaj Derinliği
740 mm
Ambalaj Genişliği
520 mm
Ambalaj Yüksekliği
635 mm
Baski Hızı Renkli Normal Kalite A4 Us Letter
30 ppm
Baski Kartuslarinin Renkleri
Siyah, Cam Göbeği, Macenta, Sarı
Baski Kartusu Sayısı
4
Baski Sirasinda Ortalama Enerji Tüketimi
458 W
Baski Teknolojisi
Lazer
Brand
Epson
Çalışma Dongusu Aylik A4
100000 Ay/Sayfa
Çalışma Isısı Aralığı
5 - 32 °C
Çalışmama Nemi
15 - 85%
Calistirma Nem Aralığı
15 - 85%
Category
Lazer Yazıcılar
Cok Amacli Tepsi
Evet
Cok Amacli Tepsi Giriş Kapasitesi
155 Kağıtlar
Dahili Ekran
Evet
Dahili Bellek
256 MB
Dahili İşlemci
Evet
Depolama Sıcaklığı Aralığı Celsius
0 - 35 °C
Derinlik
538 mm
Desteklenen Linux Çalışma Sistemleri
Evet
Desteklenen Mac Çalışma Sistemleri
Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard
Desteklenen Network Protokolleri Ipv4
LPR, FTP, IPP, Connector 9100, WSD, AppleTalk
Desteklenen Server Çalışma Sistemleri
Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64
Desteklenen Windows Çalışma Sistemleri
Windows 7, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Dokumantasyon Cdsi
Evet
Ekran Kablo Sayısı
5 satırlar
Ethernet LAN Bağlantısı
Evet
Ethernet LAN Veri Transfer Hızı
10,100,1000 Mbit/s
Genişlik
500 mm
Gtin Ean Upc
4895093305035, 8715946481364, 4053162314306
Güç Tüketimi Hazir
56 W
Güç Tüketimi Maksimum
1020 W
Hizli Baslangic Rehberi
Evet
Ilk Sayfa Çıkışı Renkli
10 s
Ilk Sayfa Çıkışı Siyah A4
8 s
Isinma Süresi
20 s
İşlemci Frekansı
400 MHz
Iso A Seri Boyutlari C0A9
A3, A4, A5, A6
Iso B Serisi Boyutlari B0 B9
B4, B5
Iso C Seri Boyutlari C0A9
C5, C6
Isosuz Baski Ortam Boyutu
İdari, Yasal, Standart (215.9 x 279.4 mm) (8.5 x 11 inç)
Istege Bagli Bağlantı
Paralel
Kablo Teknolojisi
10/100/1000Base-T(X)
Kagit Giriş Türü
Kağıt tepsisi
Kagit Tepsisi Medya Ağırlığı
60 - 216 g/m²
Kagit Tepsisi Medya Turleri
Zarflar, Düz kağıt
Kat Başına Miktar
1 adet
Kategori
Laser Printers
Kullanim Kilavuzu
Evet
Maksimum Baski Alani
297 x 420 mm
Maksimum Dahili Bellek
1024 MB
Maksimum Giriş Kapasitesi Sayfa
2055 Kağıtlar
Maksimum Iso A Seri Kagit Boyutu
A3
Marka
Epson
Megapiksel
4800 x 1200 DPI
Menşe Ülkesi
Çin
Nominal Akim
4,7 A
Paket Ağırlığı
55 kg
Paket Başına Miktar
1 adet
Pakete Dahil Kablolar
AC
Palet Başına Miktar
4 adet
Palet Başına Miktar Ingiltere
4 adet
Palet Genişliği
80 cm
Palet Genişliği Ingiltere
100 cm
Palet Katmani Başına Miktar Ingiltere
1 adet
Palet Uzunluğu
120 cm
Palet Uzunluğu Ingiltere
120 cm
Palet Yüksekliği
2,23 m
Palet Yüksekliği Ingiltere
2,23 m
Product Family
AcuLaser
Product Name
AcuLaser C9300N
Product Series
1
Renk
Evet
Sayfa Tanimlama Dilleri
Epson ESC/P2, Epson FX, PCL 5c, PCL 6, PDF 1.6, PostScript 3
Ses Basinci Seviyesi Baski
53 dB
Ses Gücü Seviyesi Bekleme
25 dB
Standart Arayuzler
Ethernet, USB 2.0
Surdurulebilirlik Sertifikaları
ENERGY STAR
Sürücüler Dahil
Evet
Toplam Çıkış Kapasitesi
150 Kağıtlar
Toplam Giriş Kapasitesi
250 Kağıtlar
Toplam Giriş Tepsisi Sayısı
1
Üretim Tarihi
2012
Ürün Adi
Epson AcuLaser C9300N
Ürün Ailesi
AcuLaser
Ürün Kodu
C11CB52011
Ürün Rengi
Siyah, Beyaz
Usb Konnektoru
B tipi USB
Wi Fi
No
Yazdirma Hızı Siyah Normal Kalite A4 Us Letter
30 ppm
Yazilim Cdsi
Evet
Yonetim Protokolleri
SNMP, HTTP, DHCP, BOOTP, APIPA, DDNS, mDNS, SNTP, SSDP, ENPC, SLP, WSD, LLTD, Ping
Yükseklik
422 mm
Zarf Boyutlari
10, C5, C6, DL
