Fujitsu

MASAüSTü ⚡ (2. nesil Intel® Core™ i7, 4 Cores)

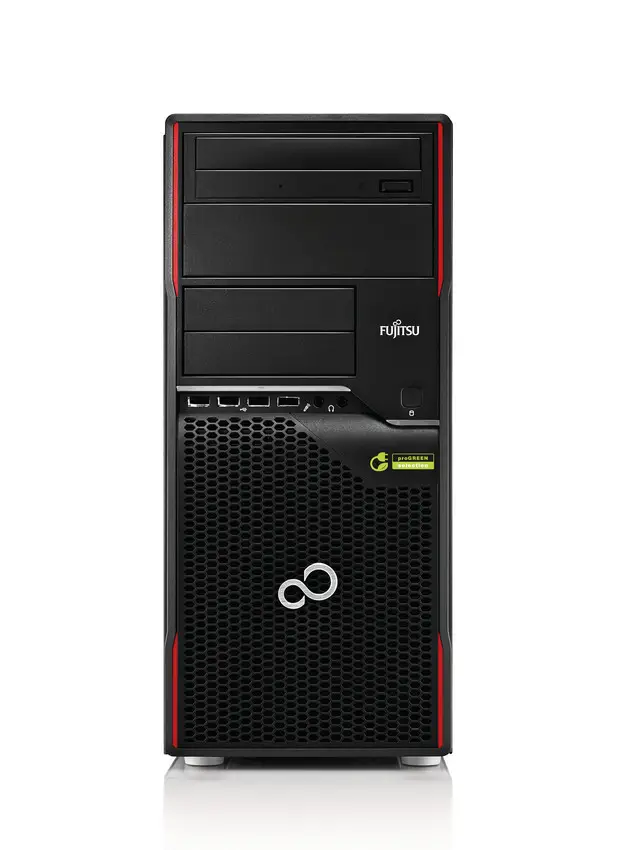

Fujitsu CELSIUS W W410 8 GB VFY:W4100WXP41FR

Hardware specifications and upgrade assessment

Processor (CPU)

OEM CPU

4 Cores

Device maximum RAM

32768 MB

4x DIMM DDR3 · Onboard / yükseltilemez · CPU Not specified in source @ Not specified in source (çip külliyatı)

Primäre Schnittstelle

Not specified in source

Battery & Charger

OEM Battery

Standard AC

⚡ Architecture & Upgrade Diagnostics

Source Timing & Interface Data

Processor ● Installed

⚡ OEM CPU

(2. nesil Intel® Core™ i7, 4 Cores)

Max Turbo: N/A

Cores: 4

Memory Architecture ● Aufrüstbar

🧠 4x DIMM DDR3

Device record: DDR3 at 1333 MHz up to 32768 MB.

Base Installed: 8 GB

Max Supported: 32768 MB

CPU theoretical limit: Not specified in source

Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: 128 GB

Clearance: Not specified in source

Battery & Power ● Source record

🔋 Internal Battery

High density battery paired with rapid AC adapter for fast recharging.

Battery Capacity: N/A

Charger Rating: N/A

ℹ️

Slot and capacity note

Source slot information: 4x DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 Fujitsu High Capacity Li-Polymer Internal Battery

This laptop is engineered with a high performance Li-Polymer internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →

No compatible components currently listed.

Source specifications 274 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

MSI Teknik Özellikler

Certification CE, FCC B, cCSAus, HCT, HCL entry, WHQL

Body

Weight 11 kg

Processor

Processor family Intel® Core™ i7

Processor socket LGA 1155 (Socket H2)

Processor manufacturer Intel

Processor generation 2nd gen Intel® Core™ i7

Number of processors installed 1

Processor threads 8

Tcase 72.6 °C

Processor boost frequency 3.8 GHz

Maximum internal memory supported by processor 32 GB

System bus rate 5 GT/s

Memory bandwidth supported by processor (max) 21 GB/s

Processor cache 8 MB

Processor cache type Smart Cache

Memory clock speeds supported by processor 1066,1333 MHz

Processor lithography 32 nm

Processor operating modes 64-bit

Processor series Intel Core i7-2600 Desktop Series

Processor codename Sandy Bridge

Bus type DMI

Processor frequency 3.4 GHz

FSB Parity No

Processor cores 4

Stepping D2

Thermal Design Power (TDP) 95 W

Maximum number of PCI Express lanes 16

Maximum number of SMP processors 1

PCI Express slots version 2.0

CPU multiplier (bus/core ratio) 34

ECC supported by processor No

Processor model i7-2600

Operational conditions

Operating relative humidity (H-H) 5 - 85%

Processor special features

Intel® My WiFi Technology (Intel® MWT) No

Intel® Anti-Theft Technology (Intel® AT) No

Intel® Identity Protection Technology (Intel® IPT) Yes

Intel® Turbo Boost Technology 2.0

Intel® Clear Video HD Technology (Intel® CVT HD) Yes

Intel Clear Video Technology No

Intel® InTru™ 3D Technology Yes

Memory types supported by processor DDR3-SDRAM

Intel® Quick Sync Video Technology Yes

Intel Trusted Execution Technology Yes

Intel Enhanced Halt State Yes

Intel VT-x with Extended Page Tables (EPT) Yes

Intel Demand Based Switching No

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) No

Execute Disable Bit Yes

Idle States Yes

Thermal Monitoring Technologies Yes

Processor package size 37.5 x 37.5 mm

Supported instruction sets AVX

Processor code SR00B

CPU configuration (max) 1

Embedded options available Yes

Intel Virtualization Technology for Directed I/O (VT-d) Yes

Intel Identity Protection Technology version 1.00

Intel Virtualization Technology (VT-x) Yes

Intel Dual Display Capable Technology Yes

Intel FDI Technology Yes

Intel Rapid Storage Technology No

Processor ARK ID 52213

Conflict-Free processor No

Intel® Wireless Display (Intel® WiDi) No

Storage

RAID levels 0, 1

Card reader integrated Yes

Number of HDDs installed 2

HDD interface SATA III

Technical details

Power supply 300 W

Ports & interfaces

USB 2.0 ports quantity 14

Microphone in Yes

Headphone outputs 1

eSATA ports quantity 1

Line-in Yes

Ethernet LAN (RJ-45) ports 1

DisplayPorts quantity 1

DVI-I ports quantity 1

Serial ports quantity 1

PS/2 ports quantity 2

Design

Chassis type Minitower

Cable lock slot type Kensington

Product colour Black

Audio

Audio output channels 5.1 channels

Graphics

Number of displays supported (on-board graphics) 2

On-board graphics card Yes

On-board graphics card model Intel® HD Graphics 2000

Graphics card Quadro 600

On-board graphics card family Intel® HD Graphics

On-board graphics card base frequency 850 MHz

On-board graphics card dynamic frequency (max) 1350 MHz

On-board graphics card ID 0x102

Maximum graphics card memory 1.024 GB

Other features

Power supply type AC

Networking features Gigabit Ethernet (10/100/1000)

Graphics card family NVIDIA

Compliance industry standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Memory

Memory channels Dual-channel

Internal memory 8 GB

Internal memory type DDR3-SDRAM

Maximum internal memory 32768 MB

Memory clock speed 1333 MHz

Memory slots 4x DIMM

Memory layout (slots x size) 2 x 4 GB

Ergonomics

Cable lock slot Yes

Expansion slots

PCI Express x1 slots 1

PCI Express x16 slots 1

PCI Express x4 slots 1

PCI slots 1

Features

SSD capacity 128 GB

RAID support Yes

Software

Drivers included Yes

Operating system installed Windows 7 Professional

Operating system architecture 64-bit

Security

Trusted Platform Module (TPM) Yes

HDD user password Yes

Password protection type BIOS

Power

Power supply input voltage 100 - 240 V

Power supply input frequency 50 - 60 Hz

Genel

Satılan Pazarlar DE

Sisteme Eklenme Tarihi 2012-01-09

Display

Display included No

Weight & dimensions

Width 175 mm

Depth 419 mm

Height 395 mm

Performance

Motherboard chipset Intel® Q67 Express

Product type Workstation

Operating temperature (T-T) 10 - 35 °C

Hard drive

HDD capacity 500 GB

HDD speed 7200 RPM

Teknik

Ag Arabirimi Gigabit Ethernet (10/100/1000)

Ağırlık 11 kg

Atlama D2

Bellek Düzeni 2 x 4 GB

Bellek Yuvası Sayısı 4x DIMM

Brand Fujitsu

Çalışma Isısı Aralığı 10 - 35 °C

Calistirma Nem Aralığı 5 - 85%

Category PC'ler/Iş Istasyonları

Cpu Cogaltici 34

Cpu Konfigurasyonu 1

Dahili Bellek Tipi DDR3-SDRAM

Dahili Sabit Disk Sürücüsü 500 GB

Derinlik 419 mm

Desteklenen Yonerge Setleri AVX

Yürütmeyi Devre Dışı Bırakma Biti (Execute Disable Bit) Evet

Displayport 1

Dvi I Bağlantı Noktasi Sayısı 1

Ekran Icinde Hayır

Endustri Standartlarina Uygunluk IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Enhanced Intel Speedstep Technology Yes

Entegre Grafik Kartı Evet

Entegre Kart Okuyucu Evet

Esata Port Sayısı 1

Ethernet LAN Rj 45 Port Sayısı 1

Fsb Paritesi Hayır

Genişletilmiş Sayfa Tabloları ile Intel VT-x (EPT) Evet

Genişlik 175 mm

Gömülü Secenekler Mevcut Evet

Grafik Adaptor Ailesi NVIDIA

Gtin Ean Upc 4051554390006

Güç Gereksinimler Giriş Frekansı 50 - 60 Hz

Güç Gereksinimleri 300 W

Güç Gereksinimleri Giriş Voltajı 100 - 240 V

Güç Kaynagi Türü AC

Guvenli Platform Modulu Tpm Evet

Hafiza Frekans Hızı 1333 MHz

Hafiza Kanallari Çift kanallı

Hdd Kullanici Sifresi Evet

İletişim Seri Bağlantı Noktalari 1

Intel 64 Yes

Intel Aes New Instructions Intel Aes Ni Yes

Intel Clear Video Hd Teknoloji Intel Cvt Hd Evet

Intel Clear Video Teknolojisi Hayır

Intel Dual Display Capable Tecknoloji Evet

Intel Fast Memory Access Yes

Intel Fdi Teknoloji Evet

Intel Flex Memory Access Yes

Intel Güvenilir Yürütme Teknolojisi Evet

Intel Hirsizliga Karsi Teknolojisi Intel At Hayır

Intel Hizli Depolama Teknolojisi Hayır

Intel Hyper Threading Technology Intel Ht Technology Yes

Intel Insider Yes

Intel Intru 3D Teknolojisi Evet

Intel Kablosuz Ekran Teknolojisi Intel Widi Hayır

Intel Kimlik Koruma Teknolojisi Intel Ipt Evet

Intel Kimlik Koruma Teknolojisi Versiyonu 1,00

Intel My Wifi Technojisi Intel Mwt Hayır

Intel Quick Sync Video Teknolojisi Evet

Intel Sanallaştırma Teknolojisi (VT-x) Evet

Intel Talep Tabanli Acma Kapama Hayır

Intel Turbo Boost Teknolojisi 2.0

Intel Zenginlestirilmis Sonlandirma Durumu Evet

İşlemci Ailesi Intel® Core™ i7

İşlemci Ark Idsi 52213

İşlemci Çalışma Modlari 64-bit

Toplam Çekirdek Sayısı 4

İşlemci Destek Frekansı 3,8 GHz

İşlemci Frekansı 3,4 GHz

İşlemci Kod Adi Sandy Bridge

İşlemci Kodu SR00B

İşlemci Litografi 32 nm

İşlemci Nesli 2. nesil Intel® Core™ i7

İşlemci On Bellek Türü Akıllı Önbellek

İşlemci Önbelleği 8 MB

İşlemci Paket Boyutu 37.5 x 37.5 mm

İşlemci Serisi Intel Core i7-2600 Desktop Series

İşlemci Tarafindan Desteklenen Bellek Bant Genişliği Maks 21 GB/s

İşlemci Tarafindan Desteklenen Bellek Tipleri DDR3-SDRAM

İşlemci Tarafindan Desteklenen Ecc Hayır

İşlemci Tarafindan Desteklenen Maksimum Ic Bellek 32 GB

İşlemci Tarafindan Desteklenen Saat Hizlari 1066,1333 MHz

İşlemci Üreticisi Intel

Isletme Sistemi Mimarisi 64-bit

Kablo Girişi Evet

Kablo Kilit Yuvası Evet

Kablo Kilit Yuvası Türü Kensington

Kasa Minitower

Kategori PCs/Workstations

Kulaklik Cikti Sayısı 1

Boşta Çalışma Durumları Evet

Maks Smp İşlemci Sayısı 1

Maksimum Dahili Bellek 32768 MB

Maksimum Grafik Bagdastiricisi Belleği 1,024 GB

Marka Fujitsu

Mid Icin Intel Net Video Teknolojisi Intel Cvt For Mid Hayır

Mikrofon Giriş Fisi Evet

Non Ecc Yes

Dahili Grafik Bağdaştırıcı Modeli Intel® HD Graphics 2000

Otobus Tipi DMI

Pci Delikleri 1

Pci Express Giriş Versiyonu 2.0

Pci Express Hatlarinin Maksimum Sayısı 16

Pci Express X1 Delik 1

Pci Express X16 Delik 1

Pci Express X4 Delik 1

Product Family CELSIUS

Product Name W410

Product Series W

Ps 2 Bağlantı Noktalari 2

Raid Desteği Evet

Raid Seviyesi 0, 1

Ram 8 GB

Sabit Bellek Arayüzü SATA III

Sabit Disk Sürücüsü Hızı 7200 RPM

Sert Durum Disk Sürücü Kapasite 128 GB

Sertifikalar Uygunluk Bildirimleri CE, FCC B, cCSAus, HCT, HCL entry, WHQL

Ses Çıkış Kanali Sayısı 5.1 kanallar

Sifre Koruma BIOS

Sıralı İşlemci Sayısı 8

Sistem Busu 5 GT/s

Sürücüler Dahil Evet

T Cantasi 72,6 °C

Termal Gozleme Teknolojileri Evet

Termal Tasarim Gücü 95 W

Üretim Tarihi 2012

Ürün Adi W410

Ürün Ailesi CELSIUS

Ürün Kodu VFY:W4100WXP41FR

Ürün Rengi Siyah

Ürün Tipi çalışma yeri

Usb 2 Bağlantı Noktasi Sayısı 14

Uyusum Sorunsuz İşlemci Hayır

Video Adaptoru Sürücüsü Quadro 600

Yerlesik Grafik Adaptoru Dinamik Frekansı Maks 1350 MHz

Yerlesik Grafik Adaptoru Idsi 0x102

Yerlesik Grafik Adaptoru Taban Frekansı 850 MHz

Yerlesik Grafik Bagdastirici Ailesi Intel® HD Graphics

Yerlesik Grafik Bagdastiricisi Tarafindan Desteklenen Ekran Sayısı 2

Yönlendirilmiş G/Ç için Intel Sanallaştırma Teknolojisi (VT-d) Evet

Yuklu İşlemcilerin Sayısı 1

Yuklu Sabit Disk Sayısı 2

Yükseklik 395 mm

Isletim Sistemi

İşletim Sistemi Windows 7 Professional

RAM

Bellek Kapasitesi 32 GB
