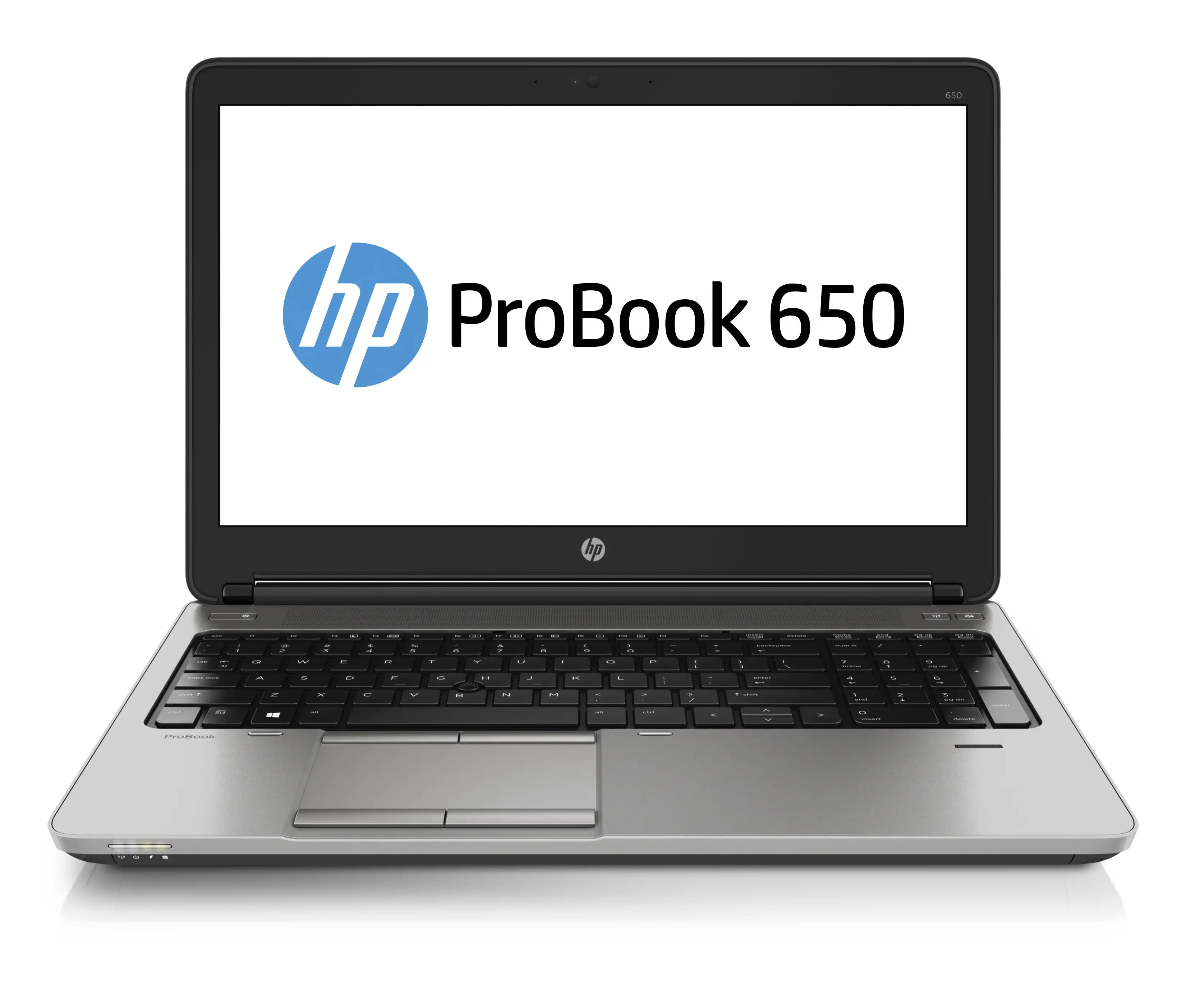

HP ProBook 650 G1 H0JY4ECR HP
LAPTOP i5-4310M (4. nesil Intel® Core™ i5, 2 Cores)

HP ProBook 650 G1 H0JY4ECR

Hardware specifications and upgrade assessment

Processor (CPU)
i5-4310M
2 Cores
Device maximum RAM
16 GB
2x SO-DIMM DDR3L · Onboard / yükseltilemez · CPU 32 GB @ Not specified in source (çip külliyatı)
Primäre Schnittstelle
Not specified in source SATA
SATA
Battery & Charger
55 Wh
45 W AC Adapter

Architecture & Upgrade Diagnostics

Source Timing & Interface Data
Processor ● Installed

⚡ i5-4310M

i5-4310M (4. nesil Intel® Core™ i5, 2 Cores)

Max Turbo: N/A
Cores: 2
Memory Architecture ● Aufrüstbar

🧠 2x SO-DIMM DDR3L

Device record: DDR3L at 1600 MHz up to 16 GB.

Base Installed: 8 GB
Max Supported: 16 GB
CPU theoretical limit: 32 GB
Storage Architecture ● Source record

💾 Not specified in source SATA

Recorded interface: SATA. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: 180 GB
Clearance: Not specified in source
Battery & Power ● Source record

🔋 55 Wh

Lityum-İyon (Li-Ion) paired with 45 W AC adapter for fast recharging.

Battery Capacity: 55 Wh
Charger Rating: 45 W
ℹ️

Slot and capacity note

Source slot information: 2x SO-DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

ℹ️

Everyday use and integrated graphics

Assess memory needs using your applications and current memory usage. Check device documentation for dual-channel support and recommended population; suitability of 2×8 GB or another configuration depends on model capacity and slot support.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 HP 55 Wh Lityum-İyon (Li-Ion) Internal Battery

This laptop is engineered with a 55 Wh Lityum-İyon (Li-Ion) internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →
No compatible components currently listed.
Source specifications 133 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Genel

Satılan Pazarlar NL
Sisteme Eklenme Tarihi 2016-11-15

İşlemci özellikleri

Yönlendirilmiş G/Ç (VT-d) için Intel® Sanallaştırma Teknolojisi Evet

Bağlantı

USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı 5
Birleşik kulaklık/mikrofon portu Evet
Wi-Fi standartlari 802.11a, 802.11b, 802.11g

Teknik

AC Adaptor Gücü 45 W
Ağırlık 2,32 kg
Ayrik Ekran Kartı Modeli Mevcut değil
Ayrik Grafik Bagdastirici Hayir
Bellek Düzeni 1 x 8 GB
Bellek Yuvası Sayısı 2x SO-DIMM
Birlesik Kulaklik Mikrofon Portu Evet
Bluetooth Evet
Bluetooth Versiyonu 4.0
Category Notebooklar/Dizüstü Bilgisayarlar
Cpu Konfigurasyonu 1
Dahili Bellek Tipi DDR3L-SDRAM
Dahili Hoparlör Sayısı 2
Dahili Mikrofon Evet
Depolama Ortami SSD
Derinlik 257 mm
Desteklenen Yonerge Setleri AVX 2.0, SSE4.1, SSE4.2
Yürütmeyi Devre Dışı Bırakma Biti (Execute Disable Bit) Evet
Displayport 1
Dokmeye Dayanikli Klavye Evet
Dokunmatik Ekran Hayir
Dvi Bağlantı Noktasi Hayir
Ekran Çözünürlüğü 1366 x 768 Piksel
Enhanced Intel Speedstep Technology Evet
Entegre Grafik Kartı Evet
Entegre Kart Okuyucu Evet
Ethernet LAN Bağlantısı Evet
Ethernet LAN Rj 45 Port Sayısı 1
Ethernet LAN Veri Transfer Hızı 10,100,1000 Mbit/s
Fis Ici Dc Evet
Form Faktörü Kapaklı
Genişletilmiş Sayfa Tabloları ile Intel VT-x (EPT) Evet
Genişlik 378 mm
Gömme Ses Dekoderleri DTS Studio Sound
Guvenli Platform Modulu Tpm Evet
Hafiza Frekans Hızı 1600 MHz
Hd Türü HD
İletişim Seri Bağlantı Noktalari 1
Intel Aes New Instructions Intel Aes Ni Evet
Intel Güvenilir Yürütme Teknolojisi Evet
Intel Guvenli Anahtar Evet
Intel Hirsizliga Karsi Teknolojisi Intel At Evet
Intel Hyper Threading Technology Intel Ht Technology Evet
Intel Insider Evet
Intel Intru 3D Teknolojisi Evet
Intel Kablosuz Ekran Teknolojisi Intel Widi Evet
Intel Kimlik Koruma Teknolojisi Intel Ipt Evet
Intel Quick Sync Video Teknolojisi Evet
Intel Sanallaştırma Teknolojisi (VT-x) Evet
Intel Segment Etiketleme Firma
Intel Talep Tabanli Acma Kapama Evet
Intel Tsx Ni Evet
Intel Turbo Boost Teknolojisi 2.0
Isaret Aygiti Dokunmalı tablet
İşlemci i5-4310M
İşlemci Ailesi Intel® Core™ i5
İşlemci Ark Idsi 80373
İşlemci Çalışma Modlari 64-bit
Toplam Çekirdek Sayısı 2
İşlemci Destek Frekansı 3,4 GHz
İşlemci Frekansı 2,7 GHz
İşlemci Kod Adi Haswell
İşlemci Litografi 22 nm
İşlemci Nesli 4. nesil Intel® Core™ i5
İşlemci On Bellek Türü Akıllı Önbellek
İşlemci Önbelleği 3 MB
İşlemci Paket Boyutu 37.5 x 37.5 x 4.7 mm
İşlemci Serisi Intel Core i5-4300 Mobile series
İşlemci Tarafindan Desteklenen Ecc Hayir
İşlemci Üreticisi Intel
Isletme Sistemi Mimarisi 64-bit
Kablo Kilit Yuvası Evet
Kategori Notebooklar/Dizüstü Bilgisayarlar
Kurulan Ssd Sayısı 1
Led Arka Isigi Evet
Maksimum Yerlesik Grafik Bagdastiricisi Belleği 2 GB
Marka HP
Masa Ustu Sarj Cihazı Evet
Menşe Ülkesi Çin
Mobil Ag Bağlantısi Evet
Mobil Ag Olusturma 3G
Dahili Grafik Bağdaştırıcı Modeli Intel® HD Graphics 4600
On Kamera Evet
Optik Sürücüler DVD süper multi DL
Otobus Tipi DMI2
Parmak Izi Okuyucu Evet
Pci Express Giriş Versiyonu 3.0
Pci Express Hatlarinin Maksimum Sayısı 16
Pci Express Konfigurasyonlari 1x16, 2x8, 1x8+2x4
Pil Kapasitesi 55 Wh
Pil Sayısı 6
Pil Teknolojisi Lityum-İyon (Li-Ion)
Ram 8 GB
Sayısal Tuş Takımı Evet
Sert Durum Disk Sürücü Kapasite 180 GB
Sert Durum Disk Sürücüsü Arayuzleri SATA
Sıralı İşlemci Sayısı 4
Sistem Busu 5 GT/s
Surdurulebilirlik Sertifikaları ENERGY STAR
T Bağlantısi 100 °C
Termal Gozleme Teknolojileri Evet
Termal Tasarim Gücü 37 W
Toplam Depolama Kapasitesi 180 GB
Toplam Ssd Kapasitesi 180 GB
Üretim Tarihi 2016
Ürün Adi 650 G1
Ürün Ailesi ProBook
Ürün Kodu H0JY4ECR
Ürün Rengi Siyah, Gümüş
Ürün Serisi 600
Ürün Tipi Laptop
Usb 3 2 Gen 1 3 1 Gen 1 Tip A Port Sayısı 5
Vga D Sub Bağlantı Noktasi Sayısı 1
Wi Fi Evet
Wi Fi Standardi Evet
Doğal En-Boy Oranı 16:9
Yerlesik Grafik Adaptoru Dinamik Frekansı Maks 1250 MHz
Yerlesik Grafik Adaptoru Directx Versiyonu 11.2/12
Yerlesik Grafik Adaptoru Opengl Versiyonu 4.3
Yerlesik Grafik Adaptoru Taban Frekansı 400 MHz
Yerlesik Grafik Bagdastirici Ailesi Intel® HD Graphics
Yönlendirilmiş G/Ç için Intel Sanallaştırma Teknolojisi (VT-d) Evet
Yükseklik 25,3 mm

RAM

Bellek Kapasitesi 16 GB

Ekran

Ekran Boyutu 39,6 cm (15.6")

İşlemci

İşlemci Soketi Soket G3

Isletim Sistemi

İşletim Sistemi Windows 7 Professional
