LAPTOP ⚡ , 1,73 GHz

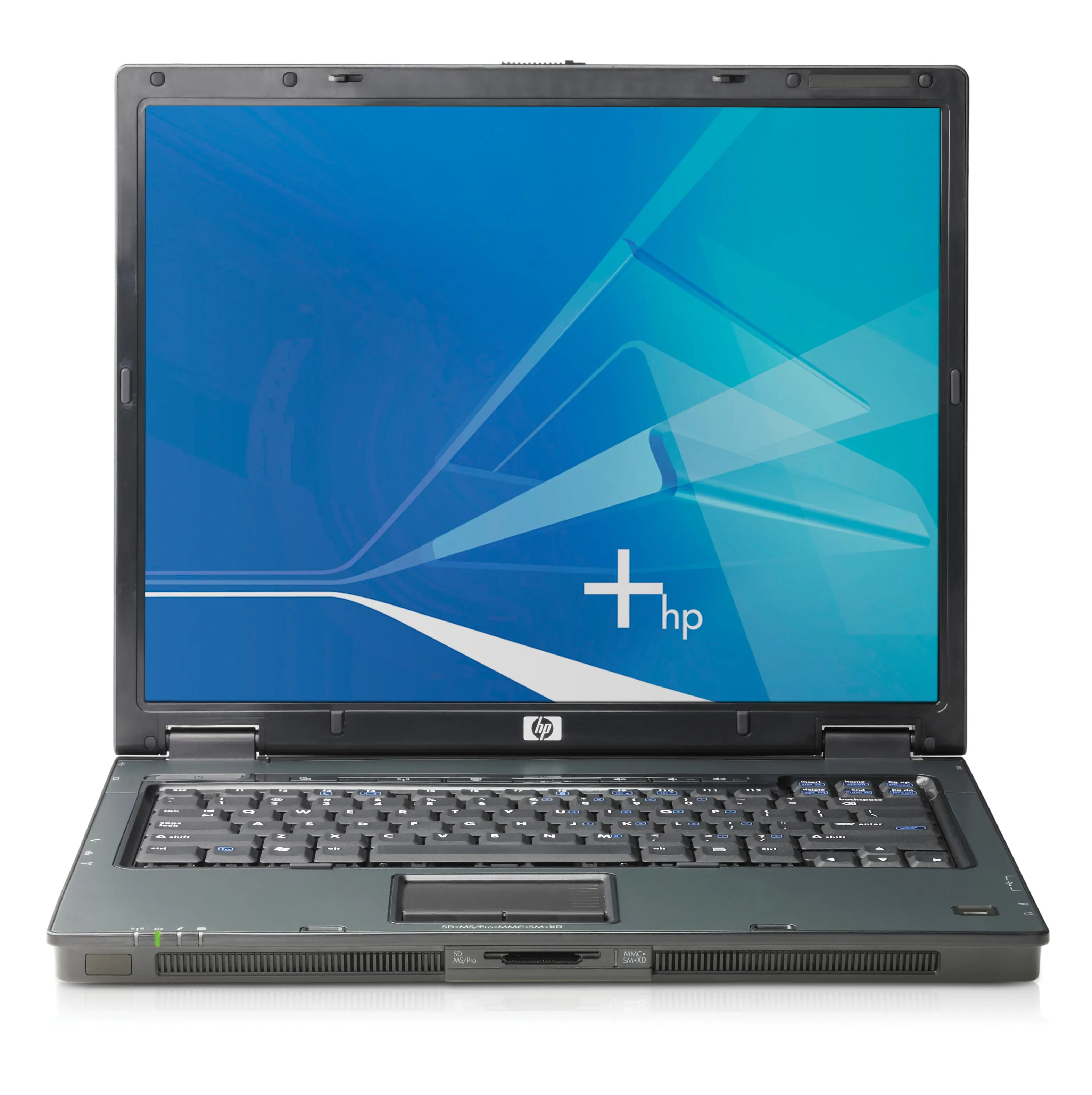

HP Compaq nc6120 Intel Pentium-M 740 512M/60G 15" XGA DVD/CD-RW Fixed Graphics WXP Pro PY505EA

Hardware specifications and upgrade assessment

Processor (CPU)

OEM CPU

1,73 GHz

Device maximum RAM

2 GB

2x SO-DIMM DDR-SDRAM · Onboard / yükseltilemez · CPU Not specified in source @ Not specified in source (çip külliyatı)

Primäre Schnittstelle

Not specified in source

Battery & Charger

OEM Battery

Standard AC

⚡ Architecture & Upgrade Diagnostics

Source Timing & Interface Data

Processor ● Installed

⚡ OEM CPU

, 1,73 GHz

Max Turbo: 1,73 GHz

Memory Architecture ● Aufrüstbar

🧠 2x SO-DIMM DDR-SDRAM

Device record: DDR-SDRAM at Not specified in source up to 2 GB.

Base Installed: 0,5 GB

Max Supported: 2 GB

CPU theoretical limit: Not specified in source

Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: 60 GB

Clearance: Not specified in source

Battery & Power ● Source record

🔋 Internal Battery

High density battery paired with rapid AC adapter for fast recharging.

Battery Capacity: N/A

Charger Rating: N/A

ℹ️

Slot and capacity note

Source slot information: 2x SO-DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 HP High Capacity Li-Polymer Internal Battery

This laptop is engineered with a high performance Li-Polymer internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →

No compatible components currently listed.

Source specifications 76 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Genel

Satılan Pazarlar US, CH

Sisteme Eklenme Tarihi 2005-12-15

Satışa Çıkış Tarihi 2005-08-01

Bağlantı

G/Ç Bağlantı Noktası 4 USB 2.0 ports, VGA, headphone, microphone, Power, RJ-11, RJ-45, Lock, S-Video, Firewire (1394a), Parallel, Serial, Fast IR

USB 2.0 bağlantı noktası sayısı 4

IEEE 1394/Firewire bağlantı noktası sayısı 1

S/PDIF çıkışı Hayir

Diğer Özellikler

Beraberinde gelen AC adaptör tipi AC

Chipset Intel® 915GM Express

Teknik

Ag Arabirimi NetXtreme Gigabit (10/100/1000 NIC) PCI Express Ethernet

Ağırlık 2,7 kg

Ayrik Ekran Kartı Modeli Intel® GMA 900

Ayrik Grafik Bagdastirici Evet

Bellek Yukseltme 2 GB

Bellek Yuvası Sayısı 2x SO-DIMM

Boyutlar Gxdxy 328,6 x 267 x 30,3 mm

Çalışma Isısı Aralığı 10 - 35 °C

Çalışmama Nemi 5 - 90%

Calistirma Nem Aralığı 10 - 90%

Cardbus Pcmcia Yuva Cesidi Tipi III

Cardbus Pcmcia Yuva Sayısı 1

Centrino Teknolojisi Intel Centrino Mobile

Cok Bolmeli Aygitlar Optional external Multibay II devices

Dahili Bellek Tipi DDR-SDRAM

Dahili Modem Evet

Dahili Sabit Disk Sürücüsü 40, 60, 80 or 100 GB (5400 rpm)

Dahili Ses ADI AC '97 CODEC

Depolama Sıcaklığı Aralığı Celsius -20 - 60 °C

Dvi Bağlantı Noktasi Hayir

Ekran Çözünürlüğü 1024 x 768 Piksel

Ethernet LAN Rj 45 Port Sayısı 1

Fis Ici Dc Evet

Genisletme Yuvalari 2 x Type I/II PCMCIA / 1 x Type III PCMCIA digital media: 6 in 1 reader

Grafik Alt Sistemi Adi Intel GMA 900

Gtin Ean Upc 0882780147751, 882780147751, 0882780147638, 882780147638, 0882780147539, 882780147539, 0882780147553, 882780147553, 0882780147591, 882780147591, 0882780147560, 882780147560, 0882780147577, 882780147577, 0882780147614, 882780147614, 0882780147690, 882780147690, 0882780147607, 882780147607, 0882780147652, 882780147652, 0882780147621, 882780147621, 0882780147584, 882780147584, 0882780147720, 882780147720, 0882780147782, 882780147782, 0882780147744, 882780147744, 0882780147676, 882780147676, 0882780147713, 882780147713, 0882780147775, 882780147775, 0882780147768, 882780147768, 0882780147683, 882780147683, 0882780147669, 882780147669, 0882780147706, 882780147706, 0882780147645, 882780147645, 0882780147874, 882780147874

Güç Gereksinimleri 65W AC

Guvenlik Yonetimi Drive Lock, Smart Card as an accessory, Kensington Lock (all sold separately)

Hazir Cal Uyan Hayir

İletişim Seri Bağlantı Noktalari 1

Isaret Aygiti Dokunmalı tablet

İşlemci Frekansı 1,73 GHz

İşlemci On Bellek Türü L2

İşlemci On Taraf Bus 533 MHz

İşlemci Önbelleği 2 MB

Kablosuz Teknolojileri Intel LAN 802.11b/g Mini PCI card, Bluetooth, Y

Kizilotesi Veri Noktasi Evet

Klavye Touch pad

Kulaklik Cikti Sayısı 1

Maksimum Grafik Bagdastiricisi Belleği 0,128 GB

Masa Ustu Sarj Cihazı Hayir

Menşe Ülkesi Çin

Mikrofon Giriş Fisi Evet

Modem 56K

Modem Hızı 56 Kbit/s

Modem Rj 11 Bağlantı Noktalari 1

Opsiyonel 2Nci Pil Ile Pil Ömrü 9 Saat

Paralel Port Sayısı 1

Pil Ömrü 4,5 Saat

Pil Türü 6-cell

Ram 0,5 GB

Sabit Disk Sürücüsü Hızı 5400 RPM

Ses ADI AC '97 CODEC, Integrated 16-bit Sound Blaster Pro-compatible audio, Integrated stereo speakers, Stereo headphone/line out, Stereo microphone in

Smartcard Yuvası Hayir

Toplam Depolama Kapasitesi 60 GB

Tv Çıkış Tipi S-Video

Tv Çıkışı Evet

Tv Ici Bağlantı Noktasi Hayir

Ürünle Gelen Yazilim Adobe Acrobat Reader, HP Local Recovery by Altiris, HP One-Touch Button Software, HP Mobile Print Driver, Synaptics Touchpad Driver, HP Help & Support, HP ProtectTools Security Manager: BIOS Configuration f HP ProtectTools, Credential Manager f HP ProtectTools, HP Wireless Assistant, Sonic RecordNow!, Symantec Norton Antivirus (60-day live update), InterVideo WinDVD - DVD Player; InterVideo WinDVD Creator – DVD Authoring; HP Client Manager Software, HP ProtectTools Security Manager: Smart Card Security f HP ProtectTools

Uyumlu İşletim Sistemi FreeDOS, Windows 2000 drivers available on www.hp.com (May vary by country)

Vga D Sub Bağlantı Noktasi Sayısı 1

Wake On Lan Hazir Hayir

Doğal En-Boy Oranı 4:3

Yerlestirme Cozumleri HP Docking Station, HP Advanced Docking Station, Vertical Stand, HP External MultiBay II cradle (all sold separately)

Ekran

Ekran Boyutu 38,1 cm (15")

Isletim Sistemi

İşletim Sistemi Windows XP Professional

RAM

Bellek Kapasitesi 2 GB
