MASAüSTü ⚡ AMD Phenom II X6, 2,7 GHz, 6 Cores

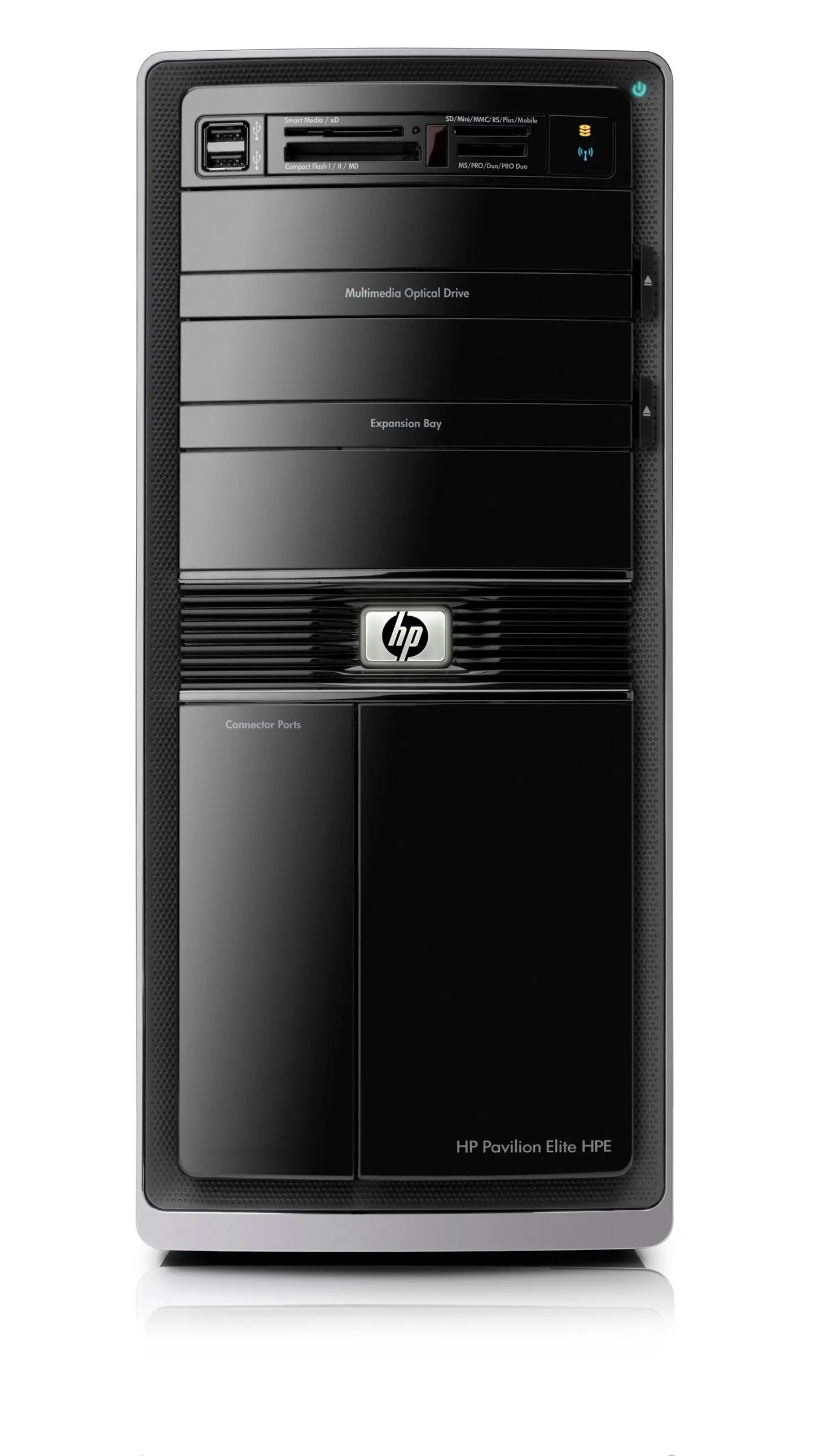

HP Pavilion HPE-502c QP698AA

Hardware specifications and upgrade assessment

Processor (CPU)

AMD Phenom II X6

2,7 GHz

Device maximum RAM

16 GB

Not specified in source DDR3 · Onboard / yükseltilemez · CPU Not specified in source @ Not specified in source (çip külliyatı)

Primäre Schnittstelle

Not specified in source

Battery & Charger

OEM Battery

Standard AC

⚡ Architecture & Upgrade Diagnostics

Source Timing & Interface Data

Processor ● Installed

⚡ AMD Phenom II X6

AMD Phenom II X6, 2,7 GHz, 6 Cores

Max Turbo: 2,7 GHz

Cores: 6

Memory Architecture ● Aufrüstbar

🧠 Not specified in source DDR3

Device record: DDR3 at 1333 MHz up to 16 GB.

Base Installed: 8 GB

Max Supported: 16 GB

CPU theoretical limit: Not specified in source

Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: 1 TB

Clearance: Not specified in source

Battery & Power ● Source record

🔋 Internal Battery

High density battery paired with rapid AC adapter for fast recharging.

Battery Capacity: N/A

Charger Rating: N/A

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 HP High Capacity Li-Polymer Internal Battery

This laptop is engineered with a high performance Li-Polymer internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →

No compatible components currently listed.

Source specifications 127 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Graphics

On-board graphics card model Not available

Discrete graphics card model AMD Radeon HD 6570

Discrete graphics card memory 1 GB

On-board graphics card No

Features

Country of origin China

Network

Ethernet LAN Yes

Cabling technology 10/100/1000Base-T(X)

Wi-Fi standards 802.11a, 802.11b, 802.11g

Ethernet LAN data rates 10,100,1000 Mbit/s

Top Wi-Fi standard Wi-Fi 4 (802.11n)

Optical drive

BD interface type SATA

LightScribe Yes

Power

Power supply input voltage 100 - 240 V

Power supply input frequency 50 - 60 Hz

Ports & interfaces

Ethernet LAN (RJ-45) ports 1

DC-in jack Yes

USB 2.0 ports quantity 6

Microphone in Yes

Headphone outputs 2

VGA (D-Sub) ports quantity 1

HDMI ports quantity 1

DVI port Yes

Mini PCI Express slots 1

Display

Display included No

Software

Operating system installed Windows 7 Home Premium

Other features

Graphics card family AMD

Genel

Sisteme Eklenme Tarihi 2012-02-20

Processor

Processor model 1045T

Processor family AMD Phenom II X6

Processor manufacturer AMD

Processor socket Socket AM3

Processor frequency 2.7 GHz

Number of processors installed 1

Processor cores 6

Hard drive

HDD capacity 1 TB

HDD speed 7200 RPM

Design

Product colour Black, Grey

Chassis type Midi Tower

Number of 3.5" bays 3

Number of 5.25" bays 2

Weight & dimensions

Width 177.8 mm

Depth 431.8 mm

Height 400 mm

Memory

Memory clock speed 1333 MHz

Internal memory 8 GB

Internal memory type DDR3-SDRAM

Maximum internal memory 16 GB

Performance

Product type PC

Motherboard chipset AMD 785G

Compatible memory cards Memory Stick (MS), MMC, MMC+, MS Duo, MS PRO, MS PRO Duo, SD, SmartMedia, xD

Storage

Optical drive type DVD Super Multi DL

Number of HDDs installed 1

HDD interface SATA II

Card reader integrated Yes

Total storage capacity 1 TB

Technical details

Power supply 300 W

Audio

Audio system HD

Expansion slots

PCI Express x1 slots 3

PCI Express x16 slots 1

Teknik

3 5 Bolme Sayısı 3

5 25 Bolme Sayısı 2

Ayrik Ekran Kartı Modeli AMD Radeon HD 6570

Ayrik Grafik Bagdastirici Belleği 1 GB

Bd Arayüzü Türü SATA

Brand HP

Category PC'ler/Iş Istasyonları

Cd Dvd Etiketi Yazdirma Evet

Dahili Bellek Tipi DDR3-SDRAM

Dahili Sabit Disk Sürücüsü 1 TB

Dahili Ses HD

Derinlik 431,8 mm

Dvi Bağlantı Noktasi Evet

Ekran Icinde Hayır

Entegre Grafik Kartı Hayır

Entegre Kart Okuyucu Evet

Ethernet LAN Bağlantısı Evet

Ethernet LAN Rj 45 Port Sayısı 1

Ethernet LAN Veri Transfer Hızı 10,100,1000 Mbit/s

Fis Ici Dc Evet

Genişlik 177,8 mm

Grafik Adaptor Ailesi AMD

Gtin Ean Upc 0886111710690, 886111710690

Güç Gereksinimler Giriş Frekansı 50 - 60 Hz

Güç Gereksinimleri 300 W

Güç Gereksinimleri Giriş Voltajı 100 - 240 V

Hafiza Frekans Hızı 1333 MHz

Hdmi Port Sayısı 1

İşlemci Ailesi AMD Phenom II X6

Toplam Çekirdek Sayısı 6

İşlemci Frekansı 2,7 GHz

İşlemci Üreticisi AMD

Kablo Teknolojisi 10/100/1000Base-T(X)

Kasa Midi Dikey (Tower)

Kategori PCs/Workstations

Kulaklik Cikti Sayısı 2

Marka HP

Menşe Ülkesi Çin

Mikrofon Giriş Fisi Evet

Mini Pci Express Girisleri 1

Dahili Grafik Bağdaştırıcı Modeli Mevcut değil

Optik Sürücüler DVD süper multi DL

Pci Express X1 Delik 3

Pci Express X16 Delik 1

Product Family Pavilion

Product Name HPE-502c

Product Series HPE-500

Ram 8 GB

Sabit Bellek Arayüzü SATA II

Sabit Disk Sürücüsü Hızı 7200 RPM

Toplam Depolama Kapasitesi 1 TB

Üretim Tarihi 2012

Ürün Adi HPE-502c

Ürün Ailesi Pavilion

Ürün Kodu QP698AA

Ürün Rengi Siyah, Gri

Ürün Tipi PC

Usb 2 Bağlantı Noktasi Sayısı 6

Uyumlu Hafiza Kartları Bellek Çubuğu (MS), MMC, MMC+, MS Duo, MS PRO, MS PRO Duo, SD, SmartMedia, xD

Vga D Sub Bağlantı Noktasi Sayısı 1

Wi Fi Yes

Wi Fi Standardi Wi-Fi 4 (802.11n)

Yuklu İşlemcilerin Sayısı 1

Yuklu Sabit Disk Sayısı 1

Yükseklik 400 mm

Isletim Sistemi

İşletim Sistemi Windows 7 Home Premium

RAM

Bellek Kapasitesi 16 GB

Bağlantı

Wi-Fi standartlari 802.11a, 802.11b, 802.11g
