LAPTOP ⚡ M520, 2,3 GHz

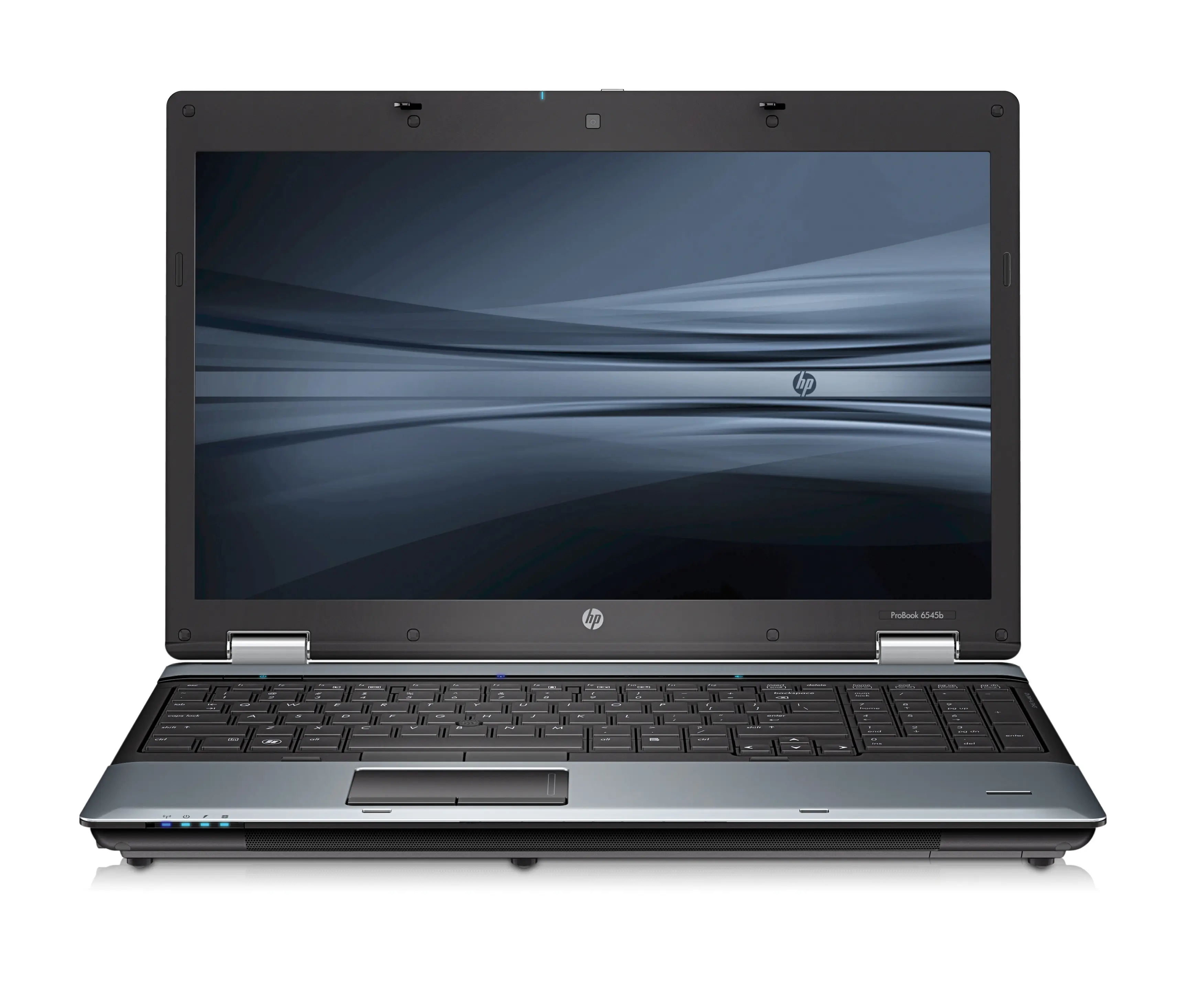

HP ProBook 6545b NN194EA

Hardware specifications and upgrade assessment

Processor (CPU)

M520

2,3 GHz

Device maximum RAM

4 GB

2x SO-DIMM DDR2-SDRAM · Onboard / yükseltilemez · CPU 8 GB @ Not specified in source (çip külliyatı)

Primäre Schnittstelle

Not specified in source

Battery & Charger

OEM Battery

Standard AC

⚡ Architecture & Upgrade Diagnostics

Source Timing & Interface Data

Processor ● Installed

⚡ M520

M520, 2,3 GHz

Max Turbo: 2,3 GHz

Memory Architecture ● Aufrüstbar

🧠 2x SO-DIMM DDR2-SDRAM

Device record: DDR2-SDRAM at Not specified in source up to 4 GB.

Base Installed: 2 GB

Max Supported: 4 GB

CPU theoretical limit: 8 GB

Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: 250 GB

Clearance: Not specified in source

Battery & Power ● Source record

🔋 Internal Battery

High density battery paired with rapid AC adapter for fast recharging.

Battery Capacity: N/A

Charger Rating: N/A

ℹ️

Slot and capacity note

Source slot information: 2x SO-DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 HP High Capacity Li-Polymer Internal Battery

This laptop is engineered with a high performance Li-Polymer internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →

No compatible components currently listed.

Source specifications 88 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Genel

Satılan Pazarlar UA, CH

Sisteme Eklenme Tarihi 2009-10-18

Satışa Çıkış Tarihi 2009-10-22

Garanti Süresi / Detayı Garanti: 1 yıl depoda tutma (bazı ülkelerde teslim ve iade (yükseltme olanağı vardır, ayrı satılır)), birincil batarya için 1 yıllık garanti

Bağlantı

G/Ç Bağlantı Noktası 4 USB 2.0 ports, VGA, DisplayPort, stereo microphone in, stereo headphone/line out, 1394a, power connector, RJ-45, RJ-11, serial port, docking connector, secondary battery connector

USB 2.0 bağlantı noktası sayısı 4

IEEE 1394/Firewire bağlantı noktası sayısı 1

S/PDIF çıkışı Hayir

Diğer Özellikler

Beraberinde gelen AC adaptör tipi AC

Chipset AMD M880G

Özellikler

CD/DVD etiketi yazdırma Evet

Teknik

Ag Arabirimi Gigabit Ethernet

Ağırlık 2,69 kg

Ayrik Ekran Kartı Modeli AMD Mobility Radeon HD 4200

Ayrik Grafik Bagdastirici Evet

Bellek Düzeni 1 x 2 GB

Bellek Yukseltme 8 GB

Bellek Yuvası Sayısı 2x SO-DIMM

Bluetooth Evet

Bluetooth Versiyonu 2.1+EDR

Boyutlar Gxdxy 371,4 x 248 x 34,8 mm

Çalışma Isısı Aralığı 5 - 35 °C

Çalışmama Nemi 5 - 95%

Calistirma Nem Aralığı 10 - 90%

Cardbus Pcmcia Yuva Cesidi Hayir

Dahili Bellek Tipi DDR2-SDRAM

Dahili Hoparlör Sayısı 2

Dahili Modem Evet

Dahili Ses Yüksek Çözünürlüklü Ses

Depolama Sıcaklığı Aralığı Celsius -20 - 60 °C

Derinlik 248 mm

Dvi Bağlantı Noktasi Hayir

Ekran Çözünürlüğü 1600 x 900 Piksel

Ekspres Kart Yuvası Evet

Entegre Kart Okuyucu Evet

Ethernet LAN Rj 45 Port Sayısı 1

Fis Ici Dc Evet

Genisletme Yuvalari Slots available for additional devices: 1 ExpressCard/54 slot, Media Card Reader

Genişlik 371,4 mm

Grafik Alt Sistemi Adi ATI Mobility Radeon HD 4200 (Integrated Graphics)

Gtin Ean Upc 0884962637128, 884962637128, 0884962637067, 884962637067, 0884962633199, 884962633199, 0884962636770, 884962636770, 0884962730539, 884962730539, 0884962637074, 884962637074, 0884962637463, 884962637463, 0884962637470, 884962637470, 0884962636794, 884962636794, 0884962637081, 884962637081, 0884962637098, 884962637098, 0884962636787, 884962636787, 0884962637456, 884962637456, 0884962637104, 884962637104, 0884962637111, 884962637111, 0884962637449, 884962637449, 0884962730546, 884962730546

Güç Gereksinimleri External 90W HP Smart AC Adapter, HP Fast Charge 6-cell (55 WHr) Li-Ion battery or 9-cell (93 WHr) Li-Ion battery, optional HP (52 WHr) Extended Life Battery, optional HP (95 WHr) Ultra-Capacity Battery, HP Long Life Battery

Guvenlik Yonetimi McAfee Security Solution, Kensington Lock slot

Hd Türü HD+

Hp Protection Araclari HP ProtectTools, TPM Embedded Security Chip 1.2, Enhanced Pre-Boot Security, HP Spare Key, HP Disk Sanitizer, Enhanced Drive Lock, Drive Encryption for HP ProtectTools, Credential Manager for HP ProtectTools, File Sanitizer for HP ProtectTools

İletişim Seri Bağlantı Noktalari 1

Intel Segment Etiketleme Firma

Isaret Aygiti Dokunmalı tablet

İşlemci M520

İşlemci Frekansı 2,3 GHz

İşlemci On Bellek Türü L2

İşlemci Önbelleği 1 MB

Kablosuz Teknolojileri IEEE 802.11a/b/g/n, Y

Kategori Notebooklar/Dizüstü Bilgisayarlar

Kizilotesi Veri Noktasi Hayir

Klavye Full-sized + numeric keypad

Klavye Düzeni AZERTY

Kulaklik Cikti Sayısı 1

Maksimum Sabit Sürücü 500 GB

Marka HP

Masa Ustu Sarj Cihazı Evet

Menşe Ülkesi Çin

Mikrofon Giriş Fisi Evet

Minimum Sabit Disk Alani 250 GB

Modem V.92

Modem Hızı 56 Kbit/s

Modem Rj 11 Bağlantı Noktalari 1

Ram 2 GB

Sabit Bellek Arayüzü SATA

Sabit Disk Denetleyicisi SATA (7200 rpm)

Sabit Disk Sürücüsü Hızı 7200 RPM

Ses High Definition Audio, stereo speakers, stereo headphone/line out, stereo microphone in, integrated microphone (integrated dual-microphone array with webcam)

Smartcard Yuvası Evet

Toplam Depolama Kapasitesi 250 GB

Tv Çıkışı Hayir

Tv Ici Bağlantı Noktasi Hayir

Ürün Adi ProBook 6545b Notebook PC

Ürün Ailesi ProBook

Ürün Kodu NN194EA

Ürünle Gelen Yazilim HP Help and Support Center, HP ProtectTools Security Manager, HP QuickLaunch Buttons Software, HP 3D DriveGuard, Microsoft Office Professional 2007 60-day Convertible Trial, McAfee Total Protection, PDF Complete SE, Synaptics Touchpad Driver, Microsoft Windows Live Messenger (select models), HP Webcam Software HP Recovery Manager (Vista only), WinDVD 8 (select models), HP QuickLook 3, HP QuickWeb, Roxio Creator Business 10 (select models), HP Power Assistant, Skype, WinZip 12

Uyumlu İşletim Sistemi Genuine Windows 7 Ultimate, Genuine Windows Vista Home Basic, Genuine Windows Vista Enterprise, SuSE Linux Enterprise Desktop 10, FreeDOS

Vga D Sub Bağlantı Noktasi Sayısı 1

Doğal En-Boy Oranı 16:9

Yerlestirme Cozumleri HP 90W Docking Station, HP 120W Advanced Docking Station, HP Monitor Stand, HP Basic Adjustable Stand, HP Adjustable Notebook Stand (all sold separately)

Yükseklik Onden 3,48 cm mm

Ekran

Ekran Boyutu 39,6 cm (15.6")

Isletim Sistemi

İşletim Sistemi Windows 7 Professional

RAM

Bellek Kapasitesi 4 GB
