DirectUpgrades Verified Hardware
Lenovo IdeaPad 330 4 GB 81D1009MUS Lenovo
LAPTOP Intel® Celeron® N4000, 2 Cores

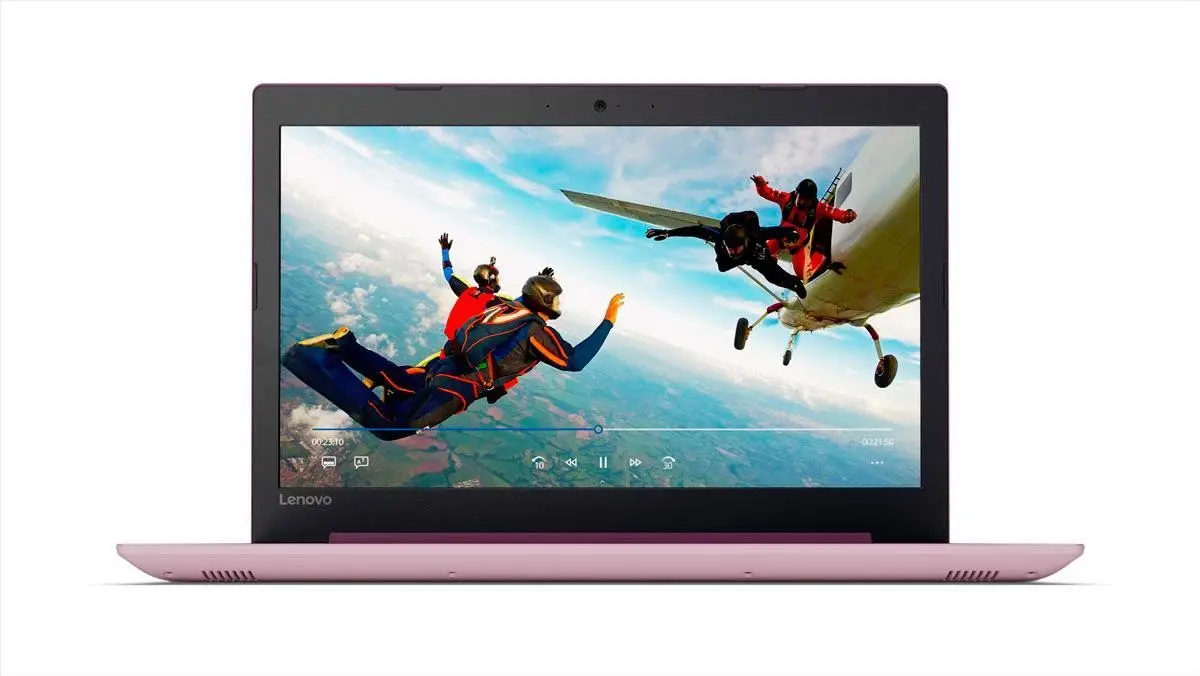

Lenovo IdeaPad 330 4 GB 81D1009MUS

Hardware specifications and upgrade assessment

Processor (CPU)
N4000
2 Cores
Device maximum RAM
8 GB
1x SO-DIMM DDR4 · Onboard / yükseltilemez · CPU 8 GB @ Not specified in source (çip külliyatı)
Primäre Schnittstelle
Not specified in source
Battery & Charger
OEM Battery
Standard AC

Architecture & Upgrade Diagnostics

Source Timing & Interface Data
Processor ● Installed

⚡ N4000

Intel® Celeron® N4000, 2 Cores

Max Turbo: N/A
Cores: 2
Memory Architecture ● Aufrüstbar

🧠 1x SO-DIMM DDR4

Device record: DDR4 at Not specified in source up to Not specified in source.

Base Installed: 4 GB
Max Supported: Not specified in source
CPU theoretical limit: 8 GB
Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: 1 TB
Clearance: Not specified in source
Battery & Power ● Source record

🔋 Internal Battery

Lityum-İyon (Li-Ion) paired with rapid AC adapter for fast recharging.

Battery Capacity: N/A
Charger Rating: N/A
ℹ️

Slot and capacity note

Source slot information: 1x SO-DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 Lenovo High Capacity Lityum-İyon (Li-Ion) Internal Battery

This laptop is engineered with a high performance Lityum-İyon (Li-Ion) internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →
No compatible components currently listed.
Source specifications 120 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Genel

Satılan Pazarlar UA
Sisteme Eklenme Tarihi 2019-01-12

Bağlantı

USB 2.0 bağlantı noktası sayısı 1
USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı 1
Birleşik kulaklık/mikrofon portu Evet
Wi-Fi standartlari 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)

İşlemci özellikleri

Yönlendirilmiş G/Ç (VT-d) için Intel® Sanallaştırma Teknolojisi Evet

Teknik

AC Adaptor Frekansı 50 - 60 Hz
AC Adaptor Voltaj Girdisi 100 - 240 V
Ağırlık 2,2 kg
Bellek Yuvası Sayısı 1x SO-DIMM
Bluetooth Evet
Bluetooth Versiyonu 4.1
Cpu Konfigurasyonu 1
Dahili Bellek Tipi DDR4-SDRAM
Dahili Hoparlör Sayısı 2
Dahili Mikrofon Evet
Dahili Sabit Disk Sürücüsü 1 TB
Dahili Ses Dolby Ses
Depolama Ortami HDD
Derinlik 260 mm
Yürütmeyi Devre Dışı Bırakma Biti (Execute Disable Bit) Evet
Dokunmatik Ekran Hayir
Ekran Parlaklığı 200 cd/m²
Enhanced Intel Speedstep Technology Evet
Entegre Grafik Kartı Evet
Entegre Kart Okuyucu Evet
Ethernet LAN Bağlantısı Evet
Ethernet LAN Rj 45 Port Sayısı 1
Ethernet LAN Veri Transfer Hızı 10,100 Mbit/s
Fis Ici Dc Evet
Form Faktörü Kapaklı
Genişletilmiş Sayfa Tabloları ile Intel VT-x (EPT) Evet
Genişlik 378 mm
Gömülü Secenekler Mevcut Hayir
Gtin Ean Upc 0192651208383, 192651208383
Guvenli Platform Modulu Tpm Evet
Hdmi Port Sayısı 1
Hdmi Versiyonu 1.4a
Hoparlör Gücü 1,5 W
Intel 64 Evet
Intel Aes New Instructions Intel Aes Ni Evet
Intel Akilli Yanit Teknolojisi Hayir
Intel Guvenli Anahtar Evet
Intel Guvenli Anahtar Teknolojisi Versiyonu 1,00
Intel Hirsizliga Karsi Teknolojisi Intel At Hayir
Intel Hyper Threading Technology Intel Ht Technology Hayir
Intel Kimlik Koruma Teknolojisi Intel Ipt Evet
Intel Kimlik Koruma Teknolojisi Versiyonu 1,00
Intel Os Korumasi Evet
Intel Quick Sync Video Teknolojisi Evet
Intel Sanallaştırma Teknolojisi (VT-x) Evet
Intel Smart Response Teknolojisi Versiyonu 0,00
Intel Turbo Boost Teknolojisi Hayir
Intel Yazilim Koruma Uzantilari Intel Sgx Evet
Intel Zenginlestirilmis Sonlandirma Durumu Evet
Isaret Aygiti Dokunmalı tablet
İşlemci N4000
İşlemci Ailesi Intel® Celeron®
İşlemci Ark Idsi 128988
İşlemci Çalışma Modlari 64-bit
Toplam Çekirdek Sayısı 2
İşlemci Destek Frekansı 2,6 GHz
İşlemci Frekansı 1,1 GHz
İşlemci Kod Adi Gemini Lake
İşlemci Litografi 14 nm
İşlemci Önbelleği 4 MB
İşlemci Paket Boyutu 25 x 24 mm
İşlemci Üreticisi Intel
Isletme Sistemi Mimarisi 64-bit
Kablo Kilit Yuvası Evet
Kategori Notebooklar/Dizüstü Bilgisayarlar
Boşta Çalışma Durumları Evet
Led Arka Isigi Evet
Maksimum Yerlesik Grafik Bagdastiricisi Belleği 8 GB
Marka Lenovo
Mobil Ag Bağlantısi Hayir
Muhafaza Malzemesi Akrilonitril bütadien stiren (ABS)
Dahili Grafik Bağdaştırıcı Modeli Intel® UHD Graphics 600
On Kamera Evet
Parmak Izi Okuyucu Hayir
Pci Express Giriş Versiyonu 2.0
Pci Express Hatlarinin Maksimum Sayısı 6
Pci Express Konfigurasyonlari 1x2, 1x2+2x1, 1x4, 2x1, 4x1
Pil Teknolojisi Lityum-İyon (Li-Ion)
Ram 4 GB
Sayısal Tuş Takımı Evet
Senaryo Tasarim Gücü Sdp 4,8 W
Sifre Koruma Açılış, Süpervisör
Sifre Korumasi Evet
Sıralı İşlemci Sayısı 2
Surdurulebilirlik Sertifikaları ENERGY STAR
T Bağlantısi 105 °C
Termal Gozleme Teknolojileri Evet
Termal Tasarim Gücü 6 W
Toplam Depolama Kapasitesi 1 TB
Toplam Hdd Kapasitesi 1 TB
Uart Evet
Ürün Adi 330
Ürün Ailesi IdeaPad
Ürün Kodu 81D1009MUS
Ürün Rengi Mor
Ürün Tipi Laptop
İş Parçacığı Sayısı 12
Uyumlu Hafiza Kartları MMC, SD, SDHC, SDXC
Uyumluluk Sertifikaları RoHS
Uyusum Sorunsuz İşlemci Evet
Wi Fi Standardi Wi-Fi 5 (802.11ac)
Doğal En-Boy Oranı 16:9
Yerlesik Grafik Adaptoru Dinamik Frekansı Maks 650 MHz
Yerlesik Grafik Adaptoru Directx Versiyonu 12.0
Yerlesik Grafik Adaptoru Idsi 0x3185
Yerlesik Grafik Adaptoru Maksimum Frekansı 650 MHz
Yerlesik Grafik Adaptoru Taban Frekansı 200 MHz
Yerlesik Grafik Bagdastirici Ailesi Intel® UHD Graphics
Yuklu Sabit Disk Sayısı 1
Yükseklik 22,9 mm

Ekran

Ekran Boyutu 39,6 cm (15.6")

İşlemci

İşlemci Soketi BGA 1090

Isletim Sistemi

İşletim Sistemi Windows 10 Home
