DirectUpgrades Verified Hardware

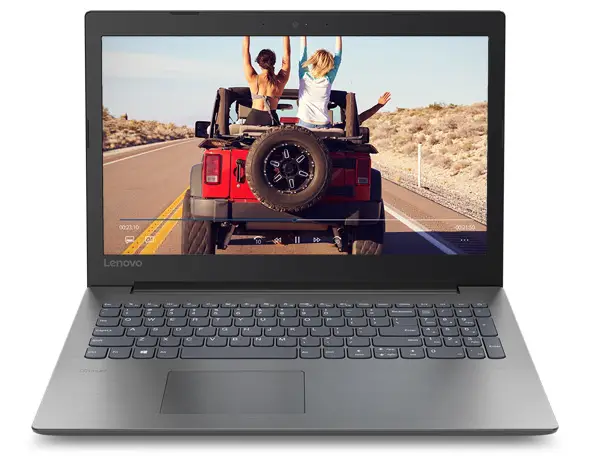

Lenovo ideapad 330-15ARR 8 GB 81D2004FRU Lenovo
LAPTOP AMD Ryzen™ 3 2200U (AMD Ryzen 2000 Series, 2 Cores)

Lenovo ideapad 330-15ARR 8 GB 81D2004FRU

Hardware specifications and upgrade assessment

Processor (CPU)
2200U
2 Cores
Device maximum RAM
16 GB
1x SO-DIMM DDR4 · Yükseltilebilir · CPU 32 GB @ Not specified in source (çip külliyatı)
Primäre Schnittstelle
Not specified in source
Battery & Charger
OEM Battery
Standard AC

Architecture & Upgrade Diagnostics

Source Timing & Interface Data
Processor ● Installed

⚡ 2200U

AMD Ryzen™ 3 2200U (AMD Ryzen 2000 Series, 2 Cores)

Max Turbo: N/A
Cores: 2
Memory Architecture ● Aufrüstbar

🧠 1x SO-DIMM DDR4 On-board + SO-DIMM

Device record: DDR4 On-board + SO-DIMM at 2400 MHz up to 16 GB.

Base Installed: 8 GB
Max Supported: 16 GB
CPU theoretical limit: 32 GB
Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: 500 GB
Clearance: Not specified in source
Battery & Power ● Source record

🔋 Internal Battery

Lityum-İyon (Li-Ion) paired with rapid AC adapter for fast recharging.

Battery Capacity: N/A
Charger Rating: N/A
ℹ️

Slot and capacity note

Source slot information: 1x SO-DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

ℹ️

Everyday use and integrated graphics

Assess memory needs using your applications and current memory usage. Check device documentation for dual-channel support and recommended population; suitability of 2×8 GB or another configuration depends on model capacity and slot support.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 Lenovo High Capacity Lityum-İyon (Li-Ion) Internal Battery

This laptop is engineered with a high performance Lityum-İyon (Li-Ion) internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →
No compatible components currently listed.
Source specifications 87 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Genel

Satılan Pazarlar RU, AM
Sisteme Eklenme Tarihi 2018-11-12

Bağlantı

USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı 2
Birleşik kulaklık/mikrofon portu Evet
USB 3.2 Gen 1 (3.1 Gen 1) Tip-C port sayısı 1
Wi-Fi standartlari Wi-Fi 5 (802.11ac)

Teknik

3D Uyumu Hayir
Ağırlık 2,2 kg
Anten Tipi 1x1
Ayrik Ekran Kartı Modeli Mevcut değil
Ayrik Grafik Bagdastirici Hayir
Bellek Düzeni 1 x 4 GB
Bellek Yuvası Sayısı 1x SO-DIMM
Bluetooth Evet
Bluetooth Versiyonu 4.1
Dahili Bellek Tipi DDR4-SDRAM
Dahili Hoparlör Sayısı 2
Dahili Mikrofon Evet
Dahili Sabit Disk Sürücüsü 500 GB
Dahili Ses Dolby Ses
Depolama Ortami HDD
Derinlik 260 mm
Dokunmatik Ekran Hayir
Ekran Çözünürlüğü 1920 x 1080 Piksel
Ekran Parlaklığı 200 cd/m²
Entegre Grafik Kartı Evet
Entegre Kart Okuyucu Evet
Ethernet LAN Bağlantısı Evet
Ethernet LAN Rj 45 Port Sayısı 1
Ethernet LAN Veri Transfer Hızı 10,100,1000 Mbit/s
Fis Ici Dc Evet
Form Faktörü Kapaklı
Genişlik 378 mm
Guvenli Platform Modulu Tpm Evet
Hafiza Frekans Hızı 2400 MHz
Hafiza Sekli Faktoru On-board + SO-DIMM
Hd Türü Full HD kalitesi
Hdmi Port Sayısı 1
Hdmi Versiyonu 1.4a
Hoparlör Gücü 1,5 W
Isaret Aygiti Dokunmalı tablet
İşlemci 2200U
İşlemci Ailesi AMD Ryzen™ 3
Toplam Çekirdek Sayısı 2
İşlemci Destek Frekansı 3,4 GHz
İşlemci Frekansı 2,5 GHz
İşlemci Nesli AMD Ryzen 2000 Series
İşlemci Önbelleği 4 MB
İşlemci Üreticisi AMD
Kablo Kilit Yuvası Evet
Kategori Notebooklar/Dizüstü Bilgisayarlar
Led Arka Isigi Evet
Maksimum Ic Hafiza 64Bit 16 GB
Marka Lenovo
Masa Ustu Sarj Cihazı Hayir
Muhafaza Malzemesi Akrilonitril bütadien stiren (ABS)
Dahili Grafik Bağdaştırıcı Modeli AMD Radeon Vega 3
On Kamera Evet
On Kamera Çözünürlüğü 0,3 MP
Optik Sürücüler Hayir
Oto Fokus Hayir
Parmak Izi Okuyucu Hayir
Pil Teknolojisi Lityum-İyon (Li-Ion)
Ram 8 GB
Sabit Disk Boyutu 2.5"
Sabit Disk Sürücüsü Hızı 5400 RPM
Sayısal Tuş Takımı Evet
Sifre Koruma HDD, Açılış, Süpervisör
Sifre Korumasi Evet
Surdurulebilirlik Sertifikaları EPEAT Silver, ENERGY STAR
Toplam Depolama Kapasitesi 500 GB
Ürün Adi ideapad 330-15ARR
Ürün Ailesi IdeaPad
Ürün Kodu 81D2004FRU
Ürün Rengi Siyah
Ürün Tipi Laptop
Uyumlu Hafiza Kartları MMC, SD, SDHC, SDXC
Uyumluluk Sertifikaları RoHS
Wi Fi Evet
Wi Fi Standardi Wi-Fi 5 (802.11ac)
Windows Tuslari Evet
Doğal En-Boy Oranı 16:9
Yuklu Sabit Disk Sayısı 1
Yükseklik 22,9 mm

Ekran

Ekran Boyutu 39,6 cm (15.6")

Isletim Sistemi

İşletim Sistemi FreeDOS

RAM

Bellek Kapasitesi 16 GB
