QNAP

NAS ⚡ Intel Xeon E, 6 Cores

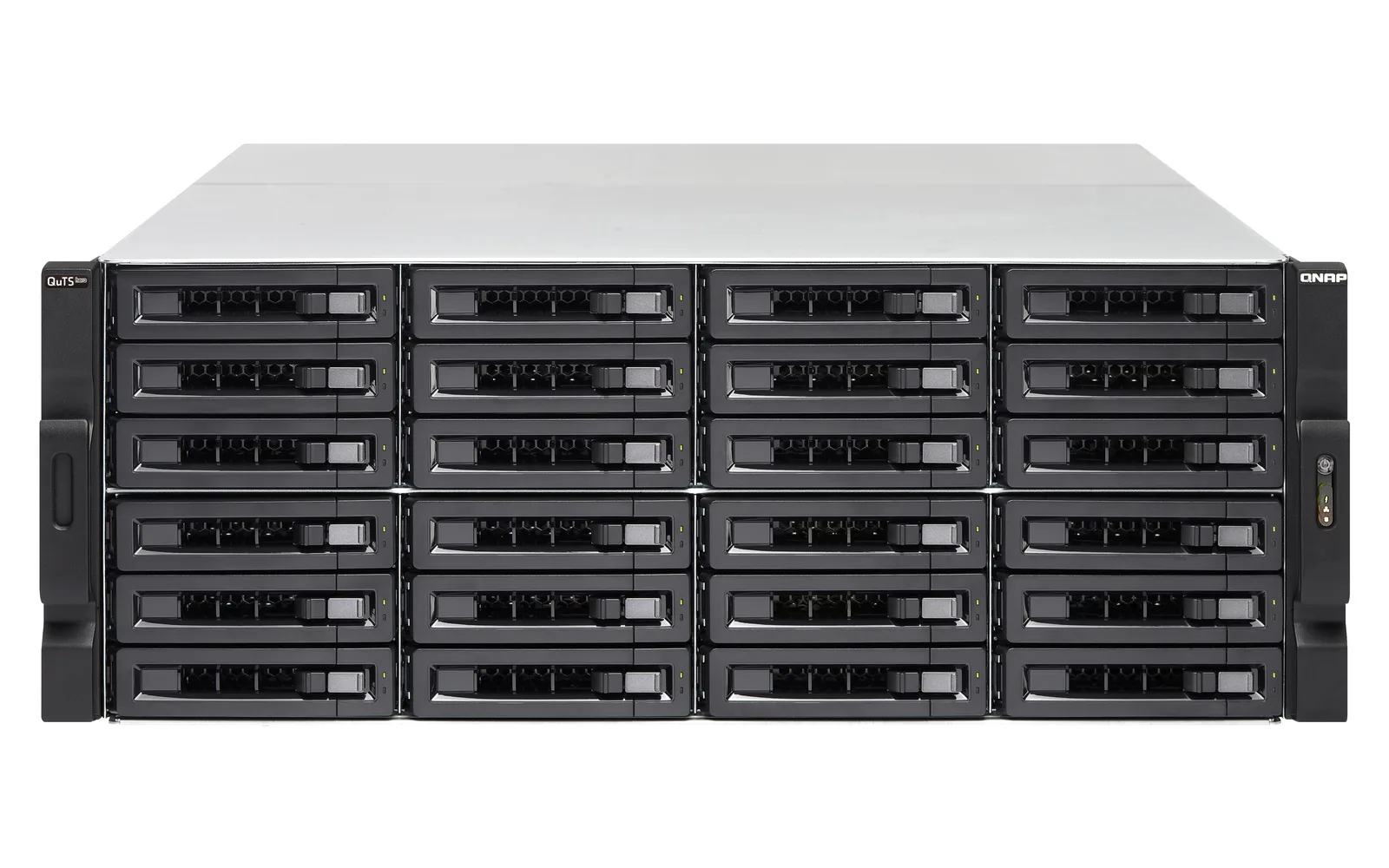

QNAP TS-H2483XU-RP TS-H2483XU-RP-E2136-128G/240TB-G

Hardware specifications and upgrade assessment

Processor (CPU)

Intel Xeon E

6 Cores

Device maximum RAM

Not specified in source

4 DDR4 · Yükseltilebilir · CPU Not specified in source @ Not specified in source (çip külliyatı)

Primäre Schnittstelle

Not specified in source

Battery & Charger

OEM Battery

Standard AC

⚡ Architecture & Upgrade Diagnostics

Source Timing & Interface Data

Processor ● Installed

⚡ Intel Xeon E

Intel Xeon E, 6 Cores

Max Turbo: N/A

Cores: 6

Memory Architecture ● Aufrüstbar

🧠 4 DDR4 UDIMM

Device record: DDR4 UDIMM at Not specified in source up to Not specified in source.

Base Installed: 128 GB

Max Supported: Not specified in source

CPU theoretical limit: Not specified in source

Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: N/A

Clearance: Not specified in source

Battery & Power ● Source record

🔋 Internal Battery

High density battery paired with rapid AC adapter for fast recharging.

Battery Capacity: N/A

Charger Rating: N/A

ℹ️

Slot and capacity note

Source slot information: 4. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 QNAP High Capacity Li-Polymer Internal Battery

This laptop is engineered with a high performance Li-Polymer internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →

No compatible components currently listed.

Source specifications 226 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Body

Weight 20.7 kg

Display

Type NAS

Processor

Processor threads 12

Processor boost frequency 4.5 GHz

Bus type DMI3

Processor frequency 3.3 GHz

Processor cores 6

Processor model E-2136

Processor family Intel Xeon E

Processor manufacturer Intel

Performance

Backup features Cloud, iSCSI LUN

Fan diameter 8 cm mm

Share folder access right management Yes

Built-in FTP server Yes

System log Yes

Hot spare Yes

Disk scan Yes

Operating temperature (T-T) 0 - 40 °C

Reset button Yes

Buzzer Yes

Multilingual support Yes

Access Control List (ACL) Yes

Backup function Yes

Other features

Linux operating systems supported Ubuntu 14.04

Number of processors supported 1

Storage temperature (T-T) -20 - 70 °C

Browser supported Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox

Wake-on-LAN ready Yes

On/off switch Yes

Snapshot Yes

Design

Product colour Aluminium, Black

Chassis type Rack (4U)

Number of fans 3 fan(s)

LED indicators HDD, LAN, Status

Cooling type Active

Device class Large Enterprise Business

Ports & interfaces

Fiber optic connector SFP+

USB port Yes

Fiber ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4

Ethernet LAN (RJ-45) ports 6

PCI Express x4 (Gen 3.x) slots 1

PCI Express x8 (Gen 3.x) slots 1

Weight & dimensions

Width 481 mm

Depth 672 mm

Height 176.2 mm

Packaging data

Number of screws 192

Package weight 28.6 kg

Memory

Memory slots 4

Flash memory 5000 MB

Internal memory 128 GB

Internal memory type DDR4

Maximum RAM supported 128 GB

Hard drive

Storage drive sizes supported 2.5,3.5"

Features

RAID support Yes

Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Security algorithms HTTPS, SNMPv2, SNMPv3, SSH

S.M.A.R.T. support Yes

Memory form factor UDIMM

Network

Ethernet LAN data rates 100,1000,10000 Mbit/s

DHCP server Yes

Jumbo frames support Yes

iSCSI support Yes

Ethernet LAN Yes

Ethernet LAN data rate supported (max) 10000 Mbit/s

Dynamic DNS (DDNS) Yes

Processor special features

Intel Trusted Execution Technology Yes

Intel Enhanced Halt State Yes

Intel VT-x with Extended Page Tables (EPT) Yes

Execute Disable Bit Yes

Idle States Yes

CPU configuration (max) 1

Embedded options available No

Intel Virtualization Technology for Directed I/O (VT-d) Yes

Intel Virtualization Technology (VT-x) Yes

Intel Secure Key Technology version 1.00

Intel TSX-NI version 1.00

Packaging content

Power cables quantity 2

Cables included AC, LAN (RJ-45)

Power

AC input voltage 100 - 240 V

Number of power supply units 2

Power consumption (typical) 173.4 W

Fan voltage 12 V

Power supply unit (PSU) capacity 800 W

Redundant power supply (RPS) support Yes

System requirements

Other operating systems supported IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11

Server operating systems supported Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Operational conditions

Operating relative humidity (H-H) 5 - 95%

Power supply

Power supply location Built-in

Storage

Total installed storage capacity 240 TB

RAID levels 0, 1, 5, 6, 10, 50, 60, JBOD

Hot-swap drive bays Yes

Supported file systems FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4

Supported storage drive interfaces Serial ATA II, Serial ATA III

Number of storage drives supported 24

Supported storage drive types HDD & SSD

Storage drives installed Yes

Installed storage drive type HDD

Online RAID migration Yes

Online RAID expansion Yes

RAID rebuild Yes

Disk roaming Yes

Genel

Sisteme Eklenme Tarihi 2022-06-28

Ürün Broşürü (PDF) /dokumanlar/nas/2026/qnap/qnap-ts-h2483xu-rp-nas-yatay-4u-intel-xeon-e-e-2136-128-gb-ddr4-240-tb-hdd-aluminyum-siyah-1872536/brosur.pdf

Garanti Süresi / Detayı 3 years

Kullanım Kılavuzu (PDF) /dokumanlar/nas/2026/qnap/qnap-ts-h2483xu-rp-nas-yatay-4u-intel-xeon-e-e-2136-128-gb-ddr4-240-tb-hdd-aluminyum-siyah-1872536/kullanim-kilavuzu.pdf

Protocols

Management protocols SNMP

Camera

Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina

Teknik

AC Giriş Voltajı 100 - 240 V

Ağırlık 20,7 kg

Bağlantı Kontrol Listesi Acl Evet

Bellek Yuvası Sayısı 4

Brand QNAP

Calisirken Degistirilebilir Sürücü Bolmeleri Evet

Çalışma Isısı Aralığı 0 - 40 °C

Calistirma Nem Aralığı 5 - 95%

Category Depolama Sunucuları

Cevrimici Raid Gecisi Evet

Cevrimici Raid Genislemesi Evet

Cihaz Sınıfı Büyük Kurumsal İşletme

Cok Dilli Destek Evet

Cpu Konfigurasyonu 1

Dahili Bellek Tipi DDR4

Depolama Sıcaklığı Aralığı Celsius -20 - 70 °C

Derinlik 672 mm

Desteklenen Depolama Sürücüsü Arayuzleri Serial ATA II, Serial ATA III

Desteklenen Depolama Sürücüsü Tipleri HDD & SSD

Desteklenen Diger Çalışma Sistemleri IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11

Desteklenen Dosya Sistemleri FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4

Desteklenen Ethernet LAN Veri Hızı Maks 10000 Mbit/s

Desteklenen İşlemci Sayısı 1

Desteklenen Linux Çalışma Sistemleri Ubuntu 14.04

Desteklenen Mac Çalışma Sistemleri Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina

Desteklenen Maksimum Ram 128 GB

Desteklenen Saklama Suruculeri 2.5,3.5"

Desteklenen Saklama Sürücüsü Sayısı 24

Desteklenen Server Çalışma Sistemleri Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Desteklenen Tarayicilar Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox

Desteklenen Windows Çalışma Sistemleri Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Yürütmeyi Devre Dışı Bırakma Biti (Execute Disable Bit) Evet

Dhcp Sunucu Evet

Dinamik Dn Ddns Evet

Disk Dolasimi Evet

Disk Taramasi Evet

Ecc Yes

Elektrikli Zil Evet

Enhanced Intel Speedstep Technology Yes

Enstantane Fotograf Evet

Entegre Acma Kapama Dugmesi Evet

Ethernet LAN Bağlantısı Evet

Ethernet LAN Rj 45 Port Sayısı 6

Ethernet LAN Veri Transfer Hızı 100,1000,10000 Mbit/s

Etkin Yedekli Evet

Fan Capi 8 cm

Fan Sayısı 3 fan(lar)

Fan Voltajı 12 V

Fiber Kanal Bağlantı Noktalari 2

Fiber Optik Bağlantı SFP+

Flash Bellek 5000 MB

Genişletilmiş Sayfa Tabloları ile Intel VT-x (EPT) Evet

Genişlik 481 mm

Gömülü Secenekler Mevcut Hayır

Gtin Ean Upc 5050914188641

Güç Kablosu Miktari 2

Güç Kaynagi Sayısı 2

Güç Kaynagi Unitesi Psu Kapasitesi 800 W

Güç Kaynagi Yeri Gömme

Güç Tüketimi 173,4 W

Guvenlik Algoritmasi Destekli HTTPS, SNMPv2, SNMPv3, SSH

Hafiza Sekli Faktoru UDIMM

İletişim Led Gostergeleri HDD, LAN, durum

Intel 64 Yes

Intel Güvenilir Yürütme Teknolojisi Evet

Intel Guvenli Anahtar Teknolojisi Versiyonu 1,00

Intel Sanallaştırma Teknolojisi (VT-x) Evet

Intel Tsx Ni Yes

Intel Tsx Ni Versiyonu 1,00

Intel Zenginlestirilmis Sonlandirma Durumu Evet

Iscsi Desteği Evet

İşlemci Ailesi Intel Xeon E

Toplam Çekirdek Sayısı 6

İşlemci Destek Frekansı 4,5 GHz

İşlemci Frekansı 3,3 GHz

İşlemci Üreticisi Intel

Jumbo Frames Desteği Evet

Kasa Yatay (4U)

Kategori NAS & Storage Servers

Boşta Çalışma Durumları Evet

Kurulu Depolama Sürücüsü Evet

Kurulu Depolama Sürücüsü Tipi HDD

Marka QNAP

Otobus Tipi DMI3

Paket Ağırlığı 28,6 kg

Pakete Dahil Kablolar AC, LAN (RJ-45)

Paylasim Klasoru Erişim Hakki Yonetimi Evet

Pci Ekspress X8 Gen 3 X Yuvalari 1

Pci Express X4 Gen 3 X Yuvası 1

Product Name TS-H2483XU-RP

Product Series 1

Raid Desteği Evet

Raid Seviyesi 0, 1, 5, 6, 10, 50, 60, JBOD

Raid Yeniden Kurma Evet

Ram 128 GB

Reset Tusu Evet

S M A R T Destek Evet

Sıralı İşlemci Sayısı 12

Sistem Gunlugu Evet

Soğutma Türü Aktif

Tip NAS

Toplam Kurulu Depolama Kapasitesi 240 TB

Ürün Adi TS-H2483XU-RP

Ürün Kodu TS-H2483XU-RP-E2136-128G/240TB-G

Ürün Rengi Alüminyum, Siyah

Usb 3 2 Gen 2 3 1 Gen 2 Tip A Port Sayısı 4

Usb 3 2 Gen 2 3 1 Gen 2 Tip C Port Sayısı 2

Usb Bağlantı Noktasi Evet

Vida Sayısı 192

Wake On Lan Hazir Evet

Yedek Güç Kaynagi Evet

Yedekleme Fonksiyonu Evet

Yedekleme Ozellikleri Bulut, iSCSI LUN

Yerlesik Ftp Sunucusu Evet

Yonetim Protokolleri SNMP

Yönlendirilmiş G/Ç için Intel Sanallaştırma Teknolojisi (VT-d) Evet

Yükseklik 176,2 mm
