Samsung
DIGITAL KAMERA

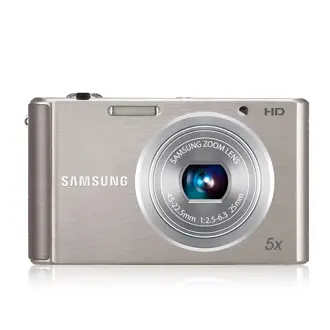

Samsung 77 EC-ST77ZZBPSGB
Hardware specifications and upgrade assessment
Processor (CPU)
OEM CPU
Not specified in source
Device maximum RAM
Not specified in source
1 · Onboard / yükseltilemez · CPU Not specified in source @ Not specified in source (çip külliyatı)
Primäre Schnittstelle
Not specified in source
Battery & Charger
OEM Battery
Standard AC
⚡ Architecture & Upgrade Diagnostics
Source Timing & Interface Data
Processor
● Installed
⚡ OEM CPU
High performance multi-core processor powering demanding workloads and fast memory buses.
Max Turbo:
N/A
Memory Architecture
● Aufrüstbar
🧠 1
Device record: at Not specified in source up to Not specified in source.
Base Installed:
0 MB
Max Supported:
Not specified in source
CPU theoretical limit:
Not specified in source
Storage Architecture
● Source record
💾 Not specified in source
Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.
Installed SSD:
N/A
Clearance:
Not specified in source
Battery & Power
● Source record
🔋 Internal Battery
Lityum-İyon (Li-Ion) paired with rapid AC adapter for fast recharging.
Battery Capacity:
N/A
Charger Rating:
N/A
ℹ️
Slot and capacity note
Source slot information: 1. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.
Upgrade candidates
Products on this page: 0
Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.
OEM Hardware Specification
Part number verification required
🔋 Samsung High Capacity Lityum-İyon (Li-Ion) Internal Battery
This laptop is engineered with a high performance Lityum-İyon (Li-Ion) internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.
No compatible components currently listed.
Source specifications
221 parameters found
📋 Hardware Technical Specifications
Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.
MSI Teknik Özellikler
Display
TFT
Body
Weight
101 g
Weight & dimensions
Width
90 mm
Depth
16.9 mm
Height
52.6 mm
Camera
White balance
Auto, Cloudy, Custom modes, Daylight, Fluorescent, Tungsten
Album organization
Yes
Scene modes
Backlight, Beach, Close-up (macro), Dawn, Documents, Fireworks, Night landscape, Night portrait, Panorama, Portrait, Snow, Sunset, Landscape
Shooting modes
Auto, Movie, Program, Scene
Photo effects
Negative film
Camera playback
Movie, Single image, Slide show, Thumbnails
Playback zoom (max)
14.4x
Camera file system
DCF 2.0, DPOF 1.1, Exif 2.21
Mac operating systems supported
Yes
Total megapixels
16.4 MP
Picture quality
Still image resolution(s)
1024 x 768,1920 x 1080,1984 x 1488,2592 x 1944,3648 x 2736,4608 x 2592,4608 x 3072,4608 x 3456
Image stabilizer
Yes
Camera type
Compact camera
Megapixel (approx.)
16.1 MP
Sensor type
CCD
Maximum image resolution
4608 x 3456 pixels
Other features
Panorama
Yes
Minimum system requirements
USB
CD-ROM
VGA 1024 x 768 px
DirectX 9.0c+
Mac compatibility
Yes
Compatible operating systems
Windows XP SP2+
Windows Vista
Windows 7
Mac OS 10.4+
Video capability
Yes
Effective sensor resolution
16100000 pixels
Aperture range (F-F)
2.5 - 6.3
On/off switch
Yes
Built-in flash
Yes
Camera shutter speed
1/8 - 1/2000 s
Focal length (35mm film equivalent)
25 - 125 mm
Digital SLR
No
Minimum processor
Power Mac G3/Intel Pentium III, 500 MHz
Minimum storage drive space
250 MB
Date imprinting
Yes
Lens system
Optical zoom
5x
Digital zoom
5x
Focal length range
4.2 - 22.5 mm
Minimum focal length (35mm film equiv)
25 mm
Maximum focal length (35mm film equiv)
125 mm
Minimum aperture number
2.5
Maximum aperture number
6.3
Combined zoom
25x
Performance
Operating temperature (T-T)
0 - 40 °C
Compatible memory cards
microSDHC
Image formats supported
EXIF
Operational conditions
Operating relative humidity (H-H)
5 - 85%
Ports & interfaces
USB version
2.0
Power
Power source type
AC, Battery, USB
Battery
Number of batteries supported
1
Battery level indicator
Yes
Battery type
BP70A
Battery technology
Lithium-Ion (Li-Ion)
Battery voltage
3.7 V
Battery capacity
740 mAh
Packaging content
Batteries included
Yes
Cables included
USB
AC adapter included
Yes
Focusing
Focus
TTL
Focus adjustment
Auto
Auto Focus (AF) object detection
Face
Normal focusing range (tele)
2.5 - ∞ m
Normal focusing range (wide)
0.8 - ∞ m
Normal focusing range
0.8 - ∞/1.5 - ∞ m
Macro focusing range (tele)
1 - 1.5 m
Macro focusing range (wide)
0.05 - 0.8 m
Display
Display diagonal
6.86 cm (2.7")
Touchscreen
No
HD type
HD
3D
No
Display resolution (numeric)
230000 pixels
Second display
No
Exposure
ISO sensitivity (min)
80
ISO sensitivity (max)
3200
Light exposure modes
Auto
Light exposure correction
± 2EV (1/3EV step)
ISO sensitivity
80, 100, 200, 400, 800, 1600, 3200, Auto
Light exposure control
Program AE
Light metering
Centre-weighted, Spot
Features
Interface
USB 2.0
Windows operating systems supported
Yes
Shutter
Fastest camera shutter speed
1/2000 s
Slowest camera shutter speed
8 s
Memory
Internal memory
0 MB
Memory slots
1
Maximum memory card size
8 GB
Flash
Flash modes
Auto, Fill-in, Flash off, Red-eye reduction, Slow synchronization
Flash range (wide)
0.2 - 3.5 m
Flash range (tele)
1 - 2 m
Flash recharging time
4 s
Video
Video recording
Yes
Maximum video resolution
1280 x 720 pixels
Video resolutions
320 x 240,640 x 480,1280 x 720 pixels
Motion JPEG frame rate
30 fps
Resolution at capture speed
1280x720@28fps, 640x480@30fps
Analog signal format system
NTSC, PAL
Audio
Audio system
Mono
Built-in microphone
Yes
Genel
Satılan Pazarlar
GB, IE
Sisteme Eklenme Tarihi
2012-03-07
Design
Tripod mounting supported
Yes
Product colour
Silver
Teknik
35 Mm Fotograf Makinasi Lensi Esdegeri
25 - 125 mm
3D Uyumu
Hayır
AC Sarma Adaptor
Evet
Aciklik Aralığı
2,5 - 6,3
Ağırlık
101 g
Album Duzenleme
Evet
Analog Sinyal Formati Sistemi
NTSC, PAL
Asgari İşlemci
Power Mac G3/Intel Pentium III, 500 MHz
Asgari Ram
256 MB
Bellek Yuvası Sayısı
1
Beyaz Dengesi
Otomatik, Bulutlu, Gelenek çeşitleri, Günışığı, Florasan, Wolfram
Brand
Samsung
Çalışma Isısı Aralığı
0 - 40 °C
Calistirma Nem Aralığı
5 - 85%
Category
Dijital Fotoğraf Makinaları
Dahili Flas
Evet
Dahili Bellek
0 MB
Dahili Mikrofon
Evet
Dahili Ses
Tek
Derinlik
16,9 mm
Desteklenen Mac Çalışma Sistemleri
Evet
Desteklenen Pil Sayısı
1
Desteklenen Resim Formatlari
EXIF
Desteklenen Windows Çalışma Sistemleri
Evet
Dijital Slr
Hayır
Dijital Zum
5x
Dokunmatik Ekran
Hayır
Donanim Onkosullari
USB CD-ROM VGA 1024 x 768 px DirectX 9.0c+
Ekran Ozellikleri
TFT
En Hizli Fotograf Makinesi Objektif Hızı
1/2000 s
En Yavas Kamera Perde Hızı
8 s
Entegre Acma Kapama Dugmesi
Evet
Flas Alani Genis
0,2 - 3,5 m
Flas Alani Tele
1 - 2 m
Flas Modlari
Otomatik, Doldurma, Kapalı flaş, Kırmızı göz azaltma, Yavaş senkronizasyon
Flas Yukleme Zamani
4 s
Fotograf Cekme Modu
Otomatik, Film, Program, Manzara
Fotograf Efektleri
Negatif film
Fotograf Makinasi Pleybek
Film, Tek görüntü, Slayt gösterisi, Mini resimler
Fotograf Makinesi Etkin Çözünürlüğü
16100000 Piksel
Fotograf Makinesi Türü
Kompakt kamera
Genişlik
90 mm
Gtin Ean Upc
8806071891095
Güç Kaynagi Türü
AC, Pil, USB
Hareketli Jpeg Goruntuleme Hızı
30 fps
Hd Türü
HD
Hdmi
No
Ikinci Lcd Ekran
Hayır
Isik Olcme
Merkezi ağırlık, Spot
Isik Pozlama Denetimi
Program AE
Isik Pozlamasi Duzeltme
± 2EV (1/3EV step)
Isiklama Tipi
Otomatik
Iso Duyarlılığı Maksimum
3200
Iso Duyarlılığı Minimum
80
Iso Hassasiyeti
80, 100, 200, 400, 800, 1600, 3200, Otomatik
Kamera Dosya Sistemi
DCF 2.0, DPOF 1.1, Exif 2.21
Kamera Gosterge Çözünürlüğü
230000 Piksel
Kategori
Digital Cameras
Kombine Zoom
25x
Macintosh Bağlantısi
Evet
Makro Odaklama Alani Genis
0.05 - 0.8 m
Makro Odaklama Alani Tele
1 - 1.5 m
Maksimum Aciklik
6,3
Maksimum Hafiza Kartı Buyuklugu
8 GB
Maksimum Odak Uzunluğu 35 Mm Film
125 mm
Maksimum Resim Çözünürlüğü
4608 x 3456 Piksel
Maksimum Video Çözünürlüğü
1280 x 720 Piksel
Marka
Samsung
Megapiksel
16,1 MP
Minimum Aciklik
2,5
Minimum Odak Uzunluğu 35 Mm Film
25 mm
Minimum Ram
256 MB
Minimum Sabit Disk Alani
250 MB
Normal Odaklama Alani
0.8 - ∞/1.5 - ∞
Normal Odaklama Aralığı Genis
0.8 - ∞
Normal Odaklama Aralığı Tele
2.5 - ∞
Odak
TTL
Odak Ayari
Otomatik
Odaklama Mesafesi
4.2 - 22.5 mm
Optik Yakinlastirici
5x
Opturator Hızı
1/8 - 1/2000 s
Otomatik Odak Af Nesne Algilama
Yüz
Pakete Dahil Kablolar
USB
Panoramik
Evet
Pictbridge
Yes
Pil Performansi
740 mAh
Pil Seviyesi Gostergesi
Evet
Pil Teknolojisi
Lityum-İyon (Li-Ion)
Pil Türü
BP70A
Pil Voltajı
3,7 V
Piller Dahil
Evet
Pleybek Zum
14,4x
Product Family
ST
Product Name
77
Product Series
1
Resim Sabitleyici
Evet
Sabit Resim Yakalama Çözünürlüğü
1024 x 768,1920 x 1080,1984 x 1488,2592 x 1944,3648 x 2736,4608 x 2592,4608 x 3072,4608 x 3456
Sahne Modlari
arka ışık, Sahil, Yakın çekim (makro), Dawn, belgeler, Havaifişek, Gece manzarası, Gece portresi, Panorama, Portre, Kar, günbatımı, Peyzaj
Sensor Tipi
CCD
Standart Bağlantı
USB 2.0
Tarih Baskisi
Evet
Toplam Megapiksel
16,4 MP
Tripod Montaji Destekli
Evet
Üretim Tarihi
2012
Ürün Adi
77
Ürün Ailesi
ST
Ürün Kodu
EC-ST77ZZBPSGB
Ürün Rengi
Gümüş
Usb Versiyonu
2.0
Uyumlu Hafiza Kartları
microSDHC
Uyumlu İşletim Sistemi
Windows XP SP2+ Windows Vista Windows 7 Mac OS 10.4+
Video Çözünürlüğü
320 x 240,640 x 480,1280 x 720
Video Kaydi
Evet
Video Yetenegi
Evet
Wi Fi
No
Yakalama Hızınde Çözünürlük
1280x720@28fps, 640x480@30fps
Yükseklik
52,6 mm
Ekran
Ekran Boyutu
6,86 cm (2.7")
