DirectUpgrades Verified Hardware
Samsung NP570Z5E NP570Z5E-S04DE Samsung
LAPTOP i7-3635QM (3. nesil Intel® Core™ i7, 4 Cores)

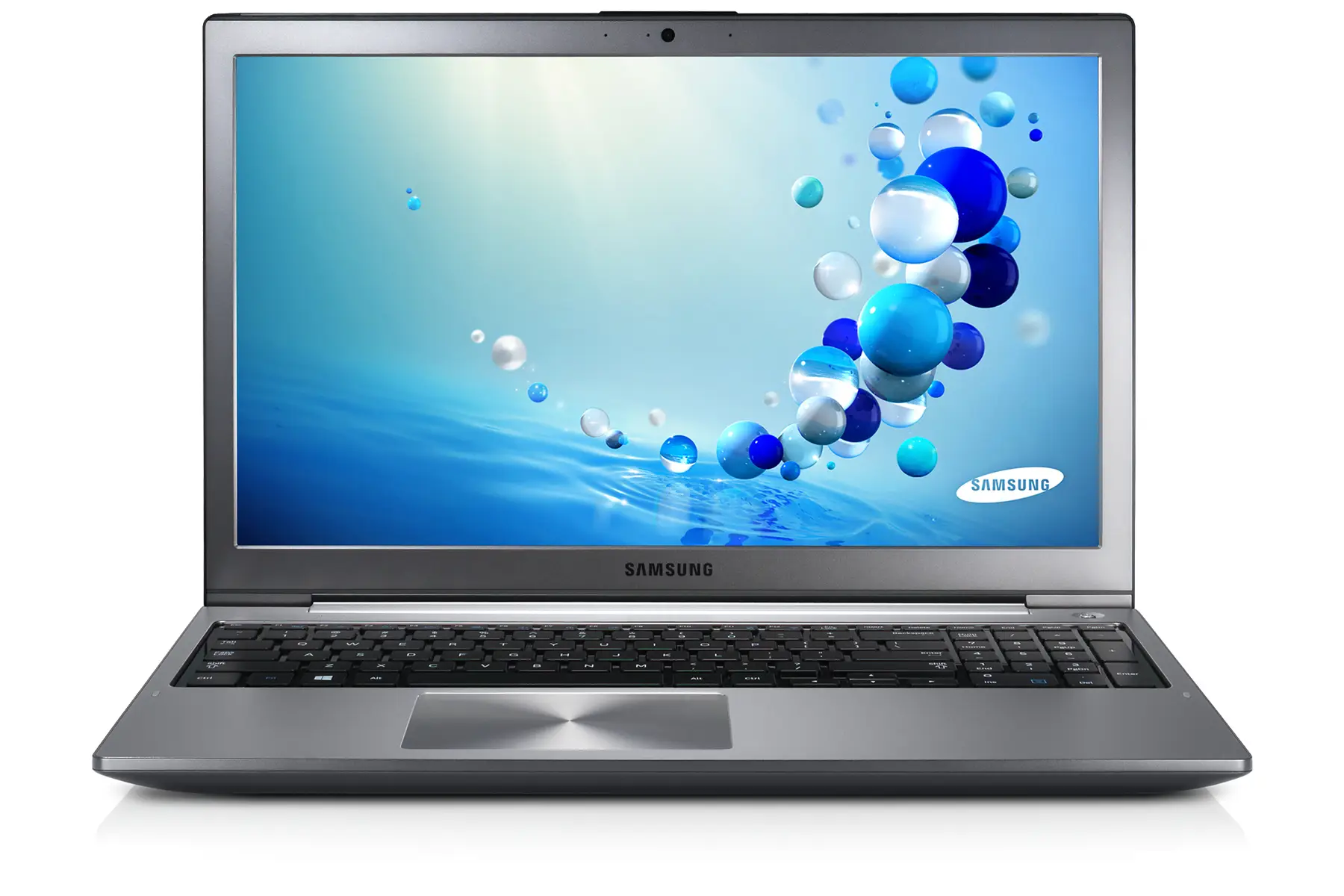

Samsung NP570Z5E NP570Z5E-S04DE

Hardware specifications and upgrade assessment

Processor (CPU)
i7-3635QM
4 Cores
Device maximum RAM
32 GB
2x SO-DIMM DDR3 · Onboard / yükseltilemez · CPU 32 GB @ Not specified in source (çip külliyatı)
Primäre Schnittstelle
Not specified in source
Battery & Charger
57 Wh
90 W AC Adapter

Architecture & Upgrade Diagnostics

Source Timing & Interface Data
Processor ● Installed

⚡ i7-3635QM

i7-3635QM (3. nesil Intel® Core™ i7, 4 Cores)

Max Turbo: N/A
Cores: 4
Memory Architecture ● Aufrüstbar

🧠 2x SO-DIMM DDR3

Device record: DDR3 at 1600 MHz up to Not specified in source.

Base Installed: 8 GB
Max Supported: Not specified in source
CPU theoretical limit: 32 GB
Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: 1 TB
Clearance: Not specified in source
Battery & Power ● Source record

🔋 57 Wh

Lityum-İyon (Li-Ion) paired with 90 W AC adapter for fast recharging.

Battery Capacity: 57 Wh
Charger Rating: 90 W
ℹ️

Slot and capacity note

Source slot information: 2x SO-DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 Samsung 57 Wh Lityum-İyon (Li-Ion) Internal Battery

This laptop is engineered with a 57 Wh Lityum-İyon (Li-Ion) internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →
No compatible components currently listed.
Source specifications 134 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Genel

Sisteme Eklenme Tarihi 2013-01-10

Bağlantı

USB 2.0 bağlantı noktası sayısı 2
USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı 2

İşlemci özellikleri

Yönlendirilmiş G/Ç (VT-d) için Intel® Sanallaştırma Teknolojisi Evet

Teknik

64 Bit Programlama Evet
AC Adaptor Frekansı 50 - 60 Hz
AC Adaptor Gücü 90 W
Ağırlık 2,25 kg
Ayrik Ekran Kartı Modeli AMD Radeon HD 8870M
Ayrik Grafik Bagdastirici Evet
Ayrik Grafik Bagdastirici Belleği 2 GB
Bellek Düzeni 4 x 2 GB
Bellek Yuvası Sayısı 2x SO-DIMM
Bluetooth Evet
Bluetooth Versiyonu 4.0
Cpu Konfigurasyonu 1
Dahili Bellek Tipi DDR3-SDRAM
Dahili Hoparlör Sayısı 2
Dahili Mikrofon Evet
Dahili Sabit Disk Sürücüsü 1 TB
Depolama Ortami HDD
Derinlik 249,9 mm
Desteklenen Yonerge Setleri AVX
Yürütmeyi Devre Dışı Bırakma Biti (Execute Disable Bit) Evet
Dokunmatik Ekran Evet
Dvi Bağlantı Noktasi Hayir
Ekran Çözünürlüğü 1366 x 768 Piksel
Ekran Parlaklığı 220 cd/m²
Enhanced Intel Speedstep Technology Evet
Entegre 4G Wimax Evet
Entegre Kart Okuyucu Evet
Ethernet LAN Bağlantısı Evet
Ethernet LAN Rj 45 Port Sayısı 1
Ethernet LAN Veri Transfer Hızı 10,100,1000 Mbit/s
Fis Ici Dc Evet
Form Faktörü Kapaklı
Genişletilmiş Sayfa Tabloları ile Intel VT-x (EPT) Evet
Genişlik 374,6 mm
Gömülü Secenekler Mevcut Hayir
Grafik Imc Tasbaski 22 nm
Gtin Ean Upc 8806085410480
Hafiza Frekans Hızı 1600 MHz
Hd Türü HD
Hdmi Port Sayısı 1
Hoparlör Gücü 2 W
Intel 64 Evet
Intel Aes New Instructions Intel Aes Ni Evet
Intel Clear Video Hd Teknoloji Intel Cvt Hd Evet
Intel Fast Memory Access Evet
Intel Fdi Teknoloji Evet
Intel Flex Memory Access Evet
Intel Güvenilir Yürütme Teknolojisi Hayir
Intel Guvenli Anahtar Evet
Intel Hirsizliga Karsi Teknolojisi Intel At Evet
Intel Hyper Threading Technology Intel Ht Technology Evet
Intel Intru 3D Teknolojisi Evet
Intel Kablosuz Ekran Teknolojisi Intel Widi Evet
Intel Kimlik Koruma Teknolojisi Intel Ipt Evet
Intel My Wifi Technojisi Intel Mwt Evet
Intel Quick Sync Video Teknolojisi Evet
Intel Sanallaştırma Teknolojisi (VT-x) Evet
Intel Smart Cache Evet
Intel Talep Tabanli Acma Kapama Hayir
Intel Turbo Boost Teknolojisi 2.0
Isaret Aygiti Dokunmalı tablet
İşlemci i7-3635QM
İşlemci Ailesi Intel® Core™ i7
İşlemci Ark Idsi 71460
İşlemci Çalışma Modlari 64-bit
Toplam Çekirdek Sayısı 4
İşlemci Destek Frekansı 3,4 GHz
İşlemci Frekansı 2,4 GHz
İşlemci Kod Adi Ivy Bridge
İşlemci Litografi 22 nm
İşlemci Nesli 3. nesil Intel® Core™ i7
İşlemci On Bellek Türü Akıllı Önbellek
İşlemci Önbelleği 6 MB
İşlemci Paket Boyutu 31 x 24 mm
İşlemci Serisi Intel Core i7-3600 Mobile series
İşlemci Tarafindan Desteklenen Ecc Hayir
İşlemci Üreticisi Intel
Isletme Sistemi Mimarisi 64-bit
Kablo Kilit Yuvası Hayir
Kategori Notebooklar/Dizüstü Bilgisayarlar
Klavye Düzeni QWERTY
Boşta Çalışma Durumları Evet
Kullanim Kilavuzu Evet
Led Arka Isigi Evet
Marka Samsung
Mikrofon Giriş Fisi Evet
Model Ailesi 5
Model Serisi 1
Dahili Grafik Bağdaştırıcı Modeli Intel® HD Graphics 4000
On Kamera Çözünürlüğü 1280 x 720 Piksel
Otobus Tipi DMI
Pci Express Giriş Versiyonu 3.0
Pci Express Hatlarinin Maksimum Sayısı 16
Pci Express Konfigurasyonlari 1x16, 1x8, 2x4, 2x8
Pil Kapasitesi 57 Wh
Pil Ömrü 8 Saat
Pil Sayısı 4
Pil Teknolojisi Lityum-İyon (Li-Ion)
Ram 8 GB
Sabit Disk Sürücüsü Hızı 5400 RPM
Sayısal Tuş Takımı Evet
Sıralı İşlemci Sayısı 8
Sistem Busu 5 GT/s
T Bağlantısi 105 °C
Tam Boyutlu Klavye Evet
Termal Gozleme Teknolojileri Evet
Termal Tasarim Gücü 35 W
Toplam Depolama Kapasitesi 1 TB
Üretim Tarihi 2013
Ürün Adi NP570Z5E
Ürün Ailesi 5
Ürün Kodu NP570Z5E-S04DE
Ürün Rengi Gri
Ürün Tipi Laptop
Usb 2 Bağlantı Noktasi Sayısı 2
Usb 3 2 Gen 1 3 1 Gen 1 Tip A Port Sayısı 2
Uyusum Sorunsuz İşlemci Evet
Wi Fi Evet
Wi Fi Standardi Evet
Wwan Yüklenmiş
Doğal En-Boy Oranı 16:9
Yerlesik Grafik Adaptoru Dinamik Frekansı Maks 1200 MHz
Yerlesik Grafik Adaptoru Idsi 0x166
Yerlesik Grafik Adaptoru Taban Frekansı 650 MHz
Yönlendirilmiş G/Ç için Intel Sanallaştırma Teknolojisi (VT-d) Evet
Yuklu Sabit Disk Sayısı 1
Yükseklik 22,9 mm

Ekran

Ekran Boyutu 39,6 cm (15.6")

İşlemci

İşlemci Soketi BGA 1224

Isletim Sistemi

İşletim Sistemi Windows 8
