TERRA · Server

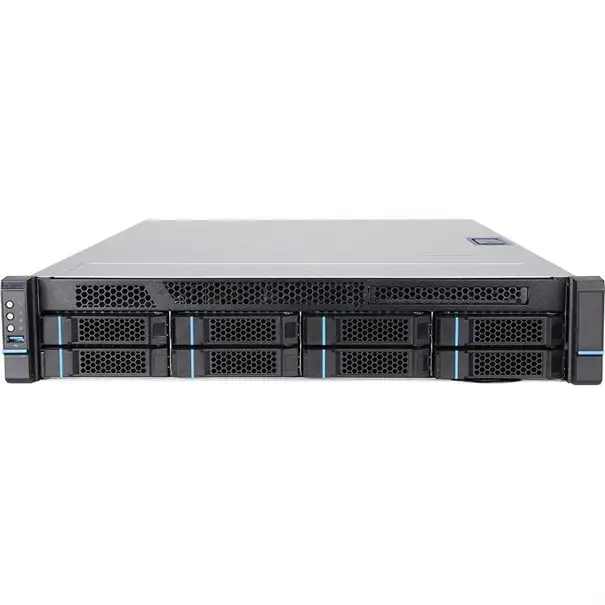

TERRA SERVER 3230 G4 92 TB 1100183
Product / variant code: 1100183
Catalog specifications and upgrade research
Installed component specifications do not establish free slots or upgrade support. Check the model service documentation and exact part number.
Device summary and source informationTERRA SERVER 3230 G4 92 TB 1100183 · DDR4 · Not specified in source · SATA Open details
Hardware information in the source record
Processor
- Processor
- Intel Xeon E, 6 Cores
- Cores
- 6
RAM
- Memory type
- DDR4
- Module form
- Not specified in source
- Slot information
- 4x DIMM
- Maximum capacity
- Not specified in source
- Installed memory
- 16 GB
Storage
- SSD form
- Not specified in source
- SSD interface
- SATA
- Installed capacity
- Not specified in source
- Installed SSD count
- 2
Battery and power
- Battery capacity
- Not specified in source
- Battery technology
- Not specified in source
- Adapter power
- Not specified in source
Show compatibility notes
Slot and capacity note
Source slot information: 4x DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.
BIOS and manufacturer support
Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.
Upgrade candidates
RAM and SSD candidates are shown as separate component groups. Products are matched against the source technical terms; compatibility is unverified and physical, electrical, capacity, firmware and service-document checks remain necessary.
No candidates were found using the available source information and candidate scan. This does not mean the device cannot be upgraded.
This list is a limited catalog sample. Amazon links open search results and include an affiliate tag. Exact part number matching for batteries, adapters and other spares is not yet available.
Inspect source specifications
Values are shown as recorded in the catalog; they do not imply independent compatibility testing. Conflicting fields are omitted from the summary above.
Genel
- Satılan Pazarlar
- GB, DK, CH
- Sisteme Eklenme Tarihi
- 2019-10-31
Bağlantı
- USB 2.0 bağlantı noktası sayısı
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Tip-A port sayısı
- 2
Teknik
- Ağırlık
- 24 kg
- Ayrik Ekran Kartı Modeli
- Aspeed AST2500
- Ayrik Grafik Bagdastirici
- Evet
- Bellek Yuvası Sayısı
- 4x DIMM
- Çalışma Isısı Aralığı
- 10 - 35 °C
- Calistirma Nem Aralığı
- 10 - 75%
- Dahili Bellek Tipi
- DDR4-SDRAM
- Derinlik
- 660 mm
- Ecc
- Evet
- Ethernet Arayuz Türü
- 10 Gigabit Ethernet, 100 Gigabit Ethernet, Gigabit Ethernet
- Ethernet LAN Bağlantısı
- Evet
- Ethernet LAN Rj 45 Port Sayısı
- 4
- Gecici Bellek Tipi
- Unregistered (unbuffered)
- Genişlik
- 438 mm
- Grafik Alt Sistemi Ekran Kartı Belleği
- 32 MB
- Gtin Ean Upc
- 4039407054763
- Güç Gereksinimler Giriş Frekansı
- 50/60 Hz
- Güç Gereksinimleri
- 700 W
- İşlemci Ailesi
- Intel Xeon E
- Toplam Çekirdek Sayısı
- 6
- İşlemci Destek Frekansı
- 4,8 GHz
- İşlemci Frekansı
- 3,4 GHz
- İşlemci On Bellek Türü
- L2
- İşlemci Önbelleği
- 12 MB
- Kablo Teknolojisi
- 10/100/1000Base-T(X)
- Kasa
- Yatay
- Kategori
- Sunucular
- Kurulan Ssd Sayısı
- 2
- Lan Kontroloru
- Intel® I210-AT
- Marka
- TERRA
- Optik Sürücüler
- DVD±RW
- Raf Montaji
- Evet
- Raid Desteği
- Evet
- Raid Seviyesi
- 1
- Ram
- 16 GB
- Sert Durum Disk Sürücü Kapasite
- 960 GB
- Sert Durum Disk Sürücüsü Arayuzleri
- SATA
- Sertifikalar Uygunluk Bildirimleri
- ISO9001
- Toplam Depolama Kapasitesi
- 1,92 TB
- Ürün Adi
- SERVER 3230 G4
- Ürün Ailesi
- TERRA
- Ürün Kodu
- 1100183
- Uyumlu İşletim Sistemi
- Windows Server 2019 Windows Server 2016
- Vga D Sub Bağlantı Noktasi Sayısı
- 1
- Yuklu İşlemcilerin Sayısı
- 1
- Yükseklik
- 87 mm
Diğer Özellikler
- Chipset
- Intel C246
İşlemci
- İşlemci Soketi
- LGA 1151 (Soket H4)
Isletim Sistemi
- İşletim Sistemi
- Hayir
RAM
- Bellek Kapasitesi
- 128 GB
