DELL · Sunucular

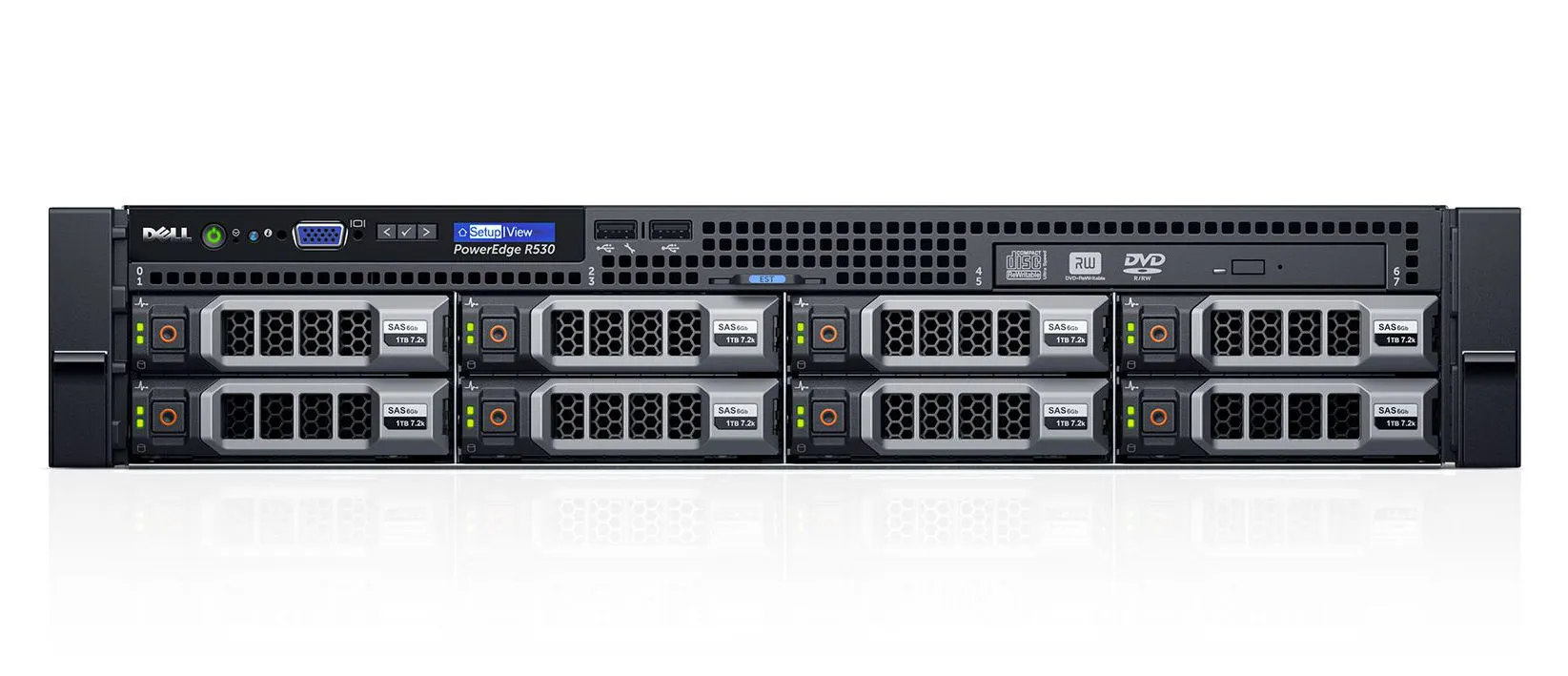

DELL R530 1 TB TTCYD
Product / variant code: TTCYD
Catalog specifications and upgrade research
Installed component specifications do not establish free slots or upgrade support. Check the model service documentation and exact part number.
Device summary and source informationDELL R530 1 TB TTCYD · DDR4 · Not specified in source · Not specified in source Open details
Hardware information in the source record
Processor
- Processor
- E5-2620V4, 8 Cores
- Cores
- 8
RAM
- Memory type
- DDR4
- Module form
- Not specified in source
- Slot information
- 12
- Maximum capacity
- Not specified in source
- Installed memory
- Not specified in source
Storage
- SSD form
- Not specified in source
- SSD interface
- Not specified in source
- Installed capacity
- 1 TB GB
- Installed SSD count
- Not specified in source
Battery and power
- Battery capacity
- Not specified in source
- Battery technology
- Not specified in source
- Adapter power
- Not specified in source
Show compatibility notes
Slot and capacity note
Source slot information: 12. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.
BIOS and manufacturer support
Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.
Upgrade candidates
RAM and SSD candidates are shown as separate component groups. Products are matched against the source technical terms; compatibility is unverified and physical, electrical, capacity, firmware and service-document checks remain necessary.
No candidates were found using the available source information and candidate scan. This does not mean the device cannot be upgraded.
This list is a limited catalog sample. Amazon links open search results and include an affiliate tag. Exact part number matching for batteries, adapters and other spares is not yet available.
Inspect source specifications
Values are shown as recorded in the catalog; they do not imply independent compatibility testing. Conflicting fields are omitted from the summary above.
Bağlantı
- USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı
- 1
- USB 2.0 bağlantı noktası sayısı
- 3
Genel
- Satılan Pazarlar
- AT, DE, UA, FR, NL
- Sisteme Eklenme Tarihi
- 2017-12-19
İşlemci özellikleri
- Yönlendirilmiş G/Ç (VT-d) için Intel® Sanallaştırma Teknolojisi
- Evet
Diğer Özellikler
- Chipset
- Intel C610
Teknik
- Atlama
- R0
- Bellek Düzeni
- 1 x 16 GB
- Bellek Yuvası Sayısı
- 12
- Calisirken Takma Desteği
- Evet
- Çalışma Isısı Aralığı
- 10 - 35 °C
- Çalışma Yüksekliği
- 0 - 3048 m
- Çalışmama Nemi
- 5 - 95%
- Çalışmama Yüksekliği
- 0 - 12000 m
- Calistirma Nem Aralığı
- 10 - 80%
- Cpu Konfigurasyonu
- 2
- Dahili Bellek Tipi
- DDR4-SDRAM
- Dahili Sabit Disk Sürücüsü
- 1 TB GB
- Dell E Deger Kodu
- PER530_EL0001A_Q4FY17_FG0006_BTP_NB
- Depolama Sıcaklığı Aralığı Celsius
- 40 - 65 °C
- Derinlik
- 668 mm
- Desteklenen Depolama Sürücüsü Arayuzleri
- SATA
- Desteklenen Sabit Sürücü Sayısı
- 8
- Desteklenen Yonerge Setleri
- AVX 2.0
- Destekli Hard Disk Sürücüsü Boyutlari
- 3.5"
- Yürütmeyi Devre Dışı Bırakma Biti (Execute Disable Bit)
- Evet
- Ecc
- Evet
- Enhanced Intel Speedstep Technology
- Evet
- Ethernet Arayuz Türü
- Hızlı Eternet, Gigabit Ethernet
- Ethernet LAN Bağlantısı
- Evet
- Ethernet LAN Rj 45 Port Sayısı
- 4
- Fiziksel Adres Genisletme
- Evet
- Fiziksel Adres Uzantisi Pae
- 46 bit
- Fsb Paritesi
- Hayir
- Genişletilmiş Sayfa Tabloları ile Intel VT-x (EPT)
- Evet
- Genişlik
- 482,4 mm
- Gömülü Secenekler Mevcut
- Evet
- Grafik Adaptor Ailesi
- Matrox
- Grafik Alt Sistemi Ekran Kartı Belleği
- 16 MB
- Gtin Ean Upc
- 5397184018934
- Guvenilir Platform Modulu Versiyonu
- 1.2
- Guvenli Platform Modulu Tpm
- Evet
- Hafiza Frekans Hızı
- 2133 MHz
- İletişim Seri Bağlantı Noktalari
- 1
- Intel 64
- Evet
- Intel Aes New Instructions Intel Aes Ni
- Evet
- Intel Flex Memory Access
- Hayir
- Intel Güvenilir Yürütme Teknolojisi
- Evet
- Intel Guvenli Anahtar
- Evet
- Intel Guvenli Anahtar Teknolojisi Versiyonu
- 1,00
- Intel Hyper Threading Technology Intel Ht Technology
- Evet
- Intel Kimlik Koruma Teknolojisi Intel Ipt
- Hayir
- Intel Kimlik Koruma Teknolojisi Versiyonu
- 0,00
- Intel Os Korumasi
- Evet
- Intel Sanallaştırma Teknolojisi (VT-x)
- Evet
- Intel Talep Tabanli Acma Kapama
- Evet
- Intel Tsx Ni
- Evet
- Intel Tsx Ni Versiyonu
- 1,00
- Intel Turbo Boost Teknolojisi
- 2.0
- Intel Virtualization Teknolojisi Intel Vt
- VT-d, VT-x
- Intel Zenginlestirilmis Sonlandirma Durumu
- Evet
- İşlemci
- E5-2620V4
- İşlemci Ailesi
- Intel® Xeon® E5 v4
- İşlemci Ark Idsi
- 92986
- İşlemci Çalışma Modlari
- 64-bit
- Toplam Çekirdek Sayısı
- 8
- İşlemci Destek Frekansı
- 3 GHz
- İşlemci Frekansı
- 2,1 GHz
- İşlemci Kod Adi
- Broadwell
- İşlemci Kodu
- SR2R6
- İşlemci Litografi
- 14 nm
- İşlemci On Bellek Türü
- Akıllı Önbellek
- İşlemci Önbelleği
- 20 MB
- İşlemci Paket Boyutu
- 45 x 52.5 mm
- İşlemci Serisi
- Intel Xeon E5-2600 v4
- İşlemci Tarafindan Desteklenen Bellek Bant Genişliği Maks
- 68,3 GB/s
- İşlemci Tarafindan Desteklenen Bellek Kanallari
- Dörtlü
- İşlemci Tarafindan Desteklenen Bellek Tipleri
- DDR4-SDRAM
- İşlemci Tarafindan Desteklenen Ecc
- Evet
- İşlemci Tarafindan Desteklenen Maksimum Ic Bellek
- 1,53 TB GB
- İşlemci Tarafindan Desteklenen Saat Hizlari
- 1600,1866,2133 MHz
- İşlemci Üreticisi
- Intel
- İşlemcilerle Uyumlu
- Intel® Xeon®
- Kablo Teknolojisi
- 10/100/1000Base-T(X)
- Kasa
- Yatay (2U)
- Kategori
- Sunucular
- Boşta Çalışma Durumları
- Evet
- Maks Smp İşlemci Sayısı
- 2
- Marka
- DELL
- Olculebilirlik
- 2S
- Optik Sürücüler
- DVD±RW
- Otobus Tipi
- QPI
- Pci Express Giriş Versiyonu
- 3.0
- Pci Express Hatlarinin Maksimum Sayısı
- 40
- Pci Express Konfigurasyonlari
- x4, x8, x16
- Pci Express X1 Delik
- 1
- Pci Express X16 Delik
- 2
- Pci Express X4 Delik
- 1
- Pci Express X8 Delik
- 1
- Qpi Bağlantı Sayısı
- 2
- Raid Desteği
- Evet
- Ram
- 16 GB
- Sabit Bellek Arayüzü
- SATA
- Sabit Disk Boyutu
- 3.5"
- Sabit Disk Sürücüsü Hızı
- 7200 RPM
- Sıralı İşlemci Sayısı
- 16
- Sistem Busu
- 8 GT/s
- T Cantasi
- 74 °C
- Termal Gozleme Teknolojileri
- Evet
- Termal Tasarim Gücü
- 85 W
- Toplam Depolama Kapasitesi
- 1 TB GB
- Ürün Adi
- R530
- Ürün Ailesi
- PowerEdge
- Ürün Kodu
- TTCYD
- Uyumlu İşletim Sistemi
- Windows Server 2008 SP2 (x86/x64) Windows Server 2012 SP2 (x86/x64) Windows Server 2008 R2 (x64) Windows Server 2012 R2 (x64) Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware vSphere
- Uyusum Sorunsuz İşlemci
- Evet
- Vga D Sub Bağlantı Noktasi Sayısı
- 2
- Video Adaptoru Sürücüsü
- G200
- Yedek Güç Kaynagi
- Evet
- Yuklu İşlemcilerin Sayısı
- 1
- Yuklu Sabit Disk Sayısı
- 1
- Yükseklik
- 86,8 mm
İşlemci
- İşlemci Soketi
- LGA 2011-v3
RAM
- Bellek Kapasitesi
- 192 GB
