Fujitsu · Sunucular

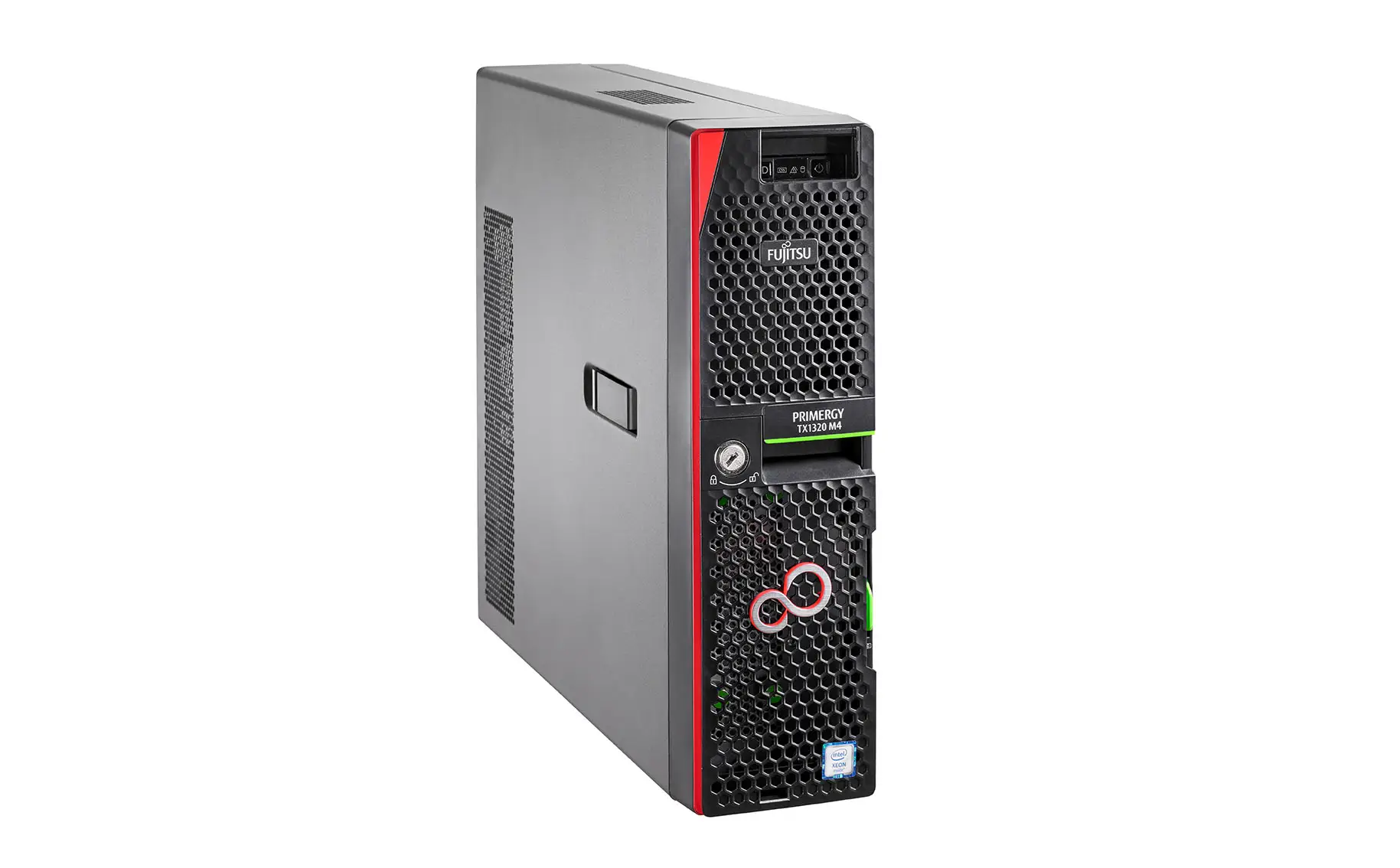

Fujitsu TX1320M4 2 TB T1324SC220IN
Product / variant code: T1324SC220IN
Catalog specifications and upgrade research
Installed component specifications do not establish free slots or upgrade support. Check the model service documentation and exact part number.
Show processor and memory limits
Primary technical source: CPU library
Intel Xeon E-2124
- CPU maximum RAM
- 128 GB
- CPU speed limit for this memory type
- Not specified in source
- Maximum RAM in device record
- Not specified in source
- CPU memory channels / ECC
- Çift kanallı / Evet
DDR4-2666
The CPU limit is the primary capacity reference. It is not a tested device upgrade capacity; motherboard, BIOS, soldered memory and slot support need separate verification. Channel count is not physical slot count.
Device summary and source informationFujitsu TX1320M4 2 TB T1324SC220IN · DDR4 · Not specified in source · Not specified in source Open details
Hardware information in the source record
Processor
- Processor
- Intel® Xeon® E-2124
- Cores
- Not specified in source
RAM
- Memory type
- DDR4
- Module form
- Not specified in source
- Slot information
- 4
- Maximum capacity
- Not specified in source
- Installed memory
- Not specified in source
Storage
- SSD form
- Not specified in source
- SSD interface
- Not specified in source
- Installed capacity
- 2 TB
- Installed SSD count
- Not specified in source
Battery and power
- Battery capacity
- Not specified in source
- Battery technology
- Not specified in source
- Adapter power
- Not specified in source
Show compatibility notes
Slot and capacity note
Source slot information: 4. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.
BIOS and manufacturer support
Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.
Upgrade candidates
RAM and SSD candidates are shown as separate component groups. Products are matched against the source technical terms; compatibility is unverified and physical, electrical, capacity, firmware and service-document checks remain necessary.
No candidates were found using the available source information and candidate scan. This does not mean the device cannot be upgraded.
This list is a limited catalog sample. Amazon links open search results and include an affiliate tag. Exact part number matching for batteries, adapters and other spares is not yet available.
Inspect source specifications
Values are shown as recorded in the catalog; they do not imply independent compatibility testing. Conflicting fields are omitted from the summary above.
Genel
- Sisteme Eklenme Tarihi
- 2020-12-25
Bağlantı
- USB 2.0 bağlantı noktası sayısı
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı
- 4
İşlemci özellikleri
- Yönlendirilmiş G/Ç (VT-d) için Intel® Sanallaştırma Teknolojisi
- Evet
Genişletme yuvaları
- PCI Express x4 (Gen 3.x) yuvası
- 1
- PCI Ekspress x8 (Gen 3.x) yuvaları
- 2
Teknik
- Ağırlık
- 10 kg
- Bellek Düzeni
- 1 x 16 GB
- Bellek Yuvası Sayısı
- 4
- Brand
- Fujitsu
- Çalışma Isısı Aralığı
- 5 - 45 °C
- Calistirma Nem Aralığı
- 10 - 85%
- Category
- Sunucular
- Cpu Konfigurasyonu
- 1
- Dahili Bellek Tipi
- DDR4-SDRAM
- Dahili Sabit Disk Sürücüsü
- 2 TB
- Derinlik
- 399 mm
- Desteklenen Sabit Sürücü Sayısı
- 4
- Yürütmeyi Devre Dışı Bırakma Biti (Execute Disable Bit)
- Evet
- Ecc
- Evet
- Enhanced Intel Speedstep Technology
- Evet
- Entegre Grafik Kartı
- Evet
- Ethernet Arayuz Türü
- Gigabit Ethernet
- Ethernet LAN Bağlantısı
- Evet
- Ethernet LAN Rj 45 Port Sayısı
- 3
- Genişletilmiş Sayfa Tabloları ile Intel VT-x (EPT)
- Evet
- Genişlik
- 98 mm
- Gömülü Secenekler Mevcut
- Hayir
- Güç Gereksinimleri
- 450 W
- Hafiza Frekans Hızı
- 2666 MHz
- İletişim Seri Bağlantı Noktalari
- 1
- Intel 64
- Evet
- Intel Güvenilir Yürütme Teknolojisi
- Evet
- Intel Guvenli Anahtar Teknolojisi Versiyonu
- 1,00
- Intel Sanallaştırma Teknolojisi (VT-x)
- Evet
- Intel Tsx Ni
- Evet
- Intel Tsx Ni Versiyonu
- 1,00
- Intel Yazilim Koruma Uzantilari Intel Sgx
- Evet
- Intel Zenginlestirilmis Sonlandirma Durumu
- Evet
- İşlemci
- E-2124
- İşlemci Ailesi
- Intel® Xeon®
- İşlemci Destek Frekansı
- 4,3 GHz
- İşlemci Frekansı
- 3,3 GHz
- İşlemci Önbelleği
- 8 MB
- İşlemci Üreticisi
- Intel
- Kablo Teknolojisi
- 10/100/1000Base-T(X)
- Kasa
- Dikey (Tower)
- Kategori
- Sunucular
- Boşta Çalışma Durumları
- Evet
- Lan Kontroloru
- Intel I210
- Marka
- Fujitsu
- Dahili Grafik Bağdaştırıcı Modeli
- Mevcut değil
- Optik Sürücüler
- Hayir
- Otobus Tipi
- DMI3
- Pci Ekspress X8 Gen 3 X Yuvalari
- 2
- Pci Express X4 Gen 3 X Yuvası
- 1
- Product Family
- PRIMERGY
- Product Name
- TX1320M4
- Product Series
- RX1330 M4
- Raid Desteği
- Evet
- Ram
- 16 GB
- Sabit Bellek Arayüzü
- Serial ATA III, Serial Attached SCSI (SAS)
- Sabit Disk Boyutu
- 2.5"
- Toplam Depolama Kapasitesi
- 2 TB
- Ürün Adi
- TX1320M4
- Ürün Ailesi
- PRIMERGY
- Ürün Kodu
- T1324SC220IN
- Ürün Rengi
- Siyah, Kırmızı
- Usb 2 Bağlantı Noktasi Sayısı
- 4
- Usb 3 2 Gen 1 3 1 Gen 1 Tip A Port Sayısı
- 4
- Uyumlu İşletim Sistemi
- Microsoft Hyper-V Server 2016 Microsoft Windows Server 2016 Datacenter Microsoft Windows Server 2016 Standard Microsoft Windows Server 2016 Essentials Microsoft Windows Storage Server 2016 Standard Microsoft Hyper-V Server 2012 R2 Microsoft Windows Server 2012 R2 Datacenter Microsoft Windows Server 2012 R2 Standard Microsoft Windows Server 2012 R2 Essentials Microsoft Windows Server 2012 R2 Foundation Microsoft Windows Storage Server 2012 R2 Standard Microsoft Hyper-V Server 2012 Microsoft Windows Server 2012 Datacenter Microsoft Windows Server 2012 Standard Microsoft Windows Server 2012 Essentials Microsoft Windows Server 2012 Foundation VMware vSphere 6.5 VMware vSphere 6.0 SUSE Linux Enterprise Server 12 Red Hat Enterprise Linux 7 Univention Corporate Server 4
- Vga D Sub Bağlantı Noktasi Sayısı
- 1
- Yönlendirilmiş G/Ç için Intel Sanallaştırma Teknolojisi (VT-d)
- Evet
- Yuklu İşlemcilerin Sayısı
- 1
- Yuklu Sabit Disk Sayısı
- 2
- Yükseklik
- 340 mm
Isletim Sistemi
- İşletim Sistemi
- Hayir
RAM
- Bellek Kapasitesi
- 64 GB
