HP
THIN CLIENTS/BLADE PCS
⚡ AMD Sempron 2100+, 1 GHz

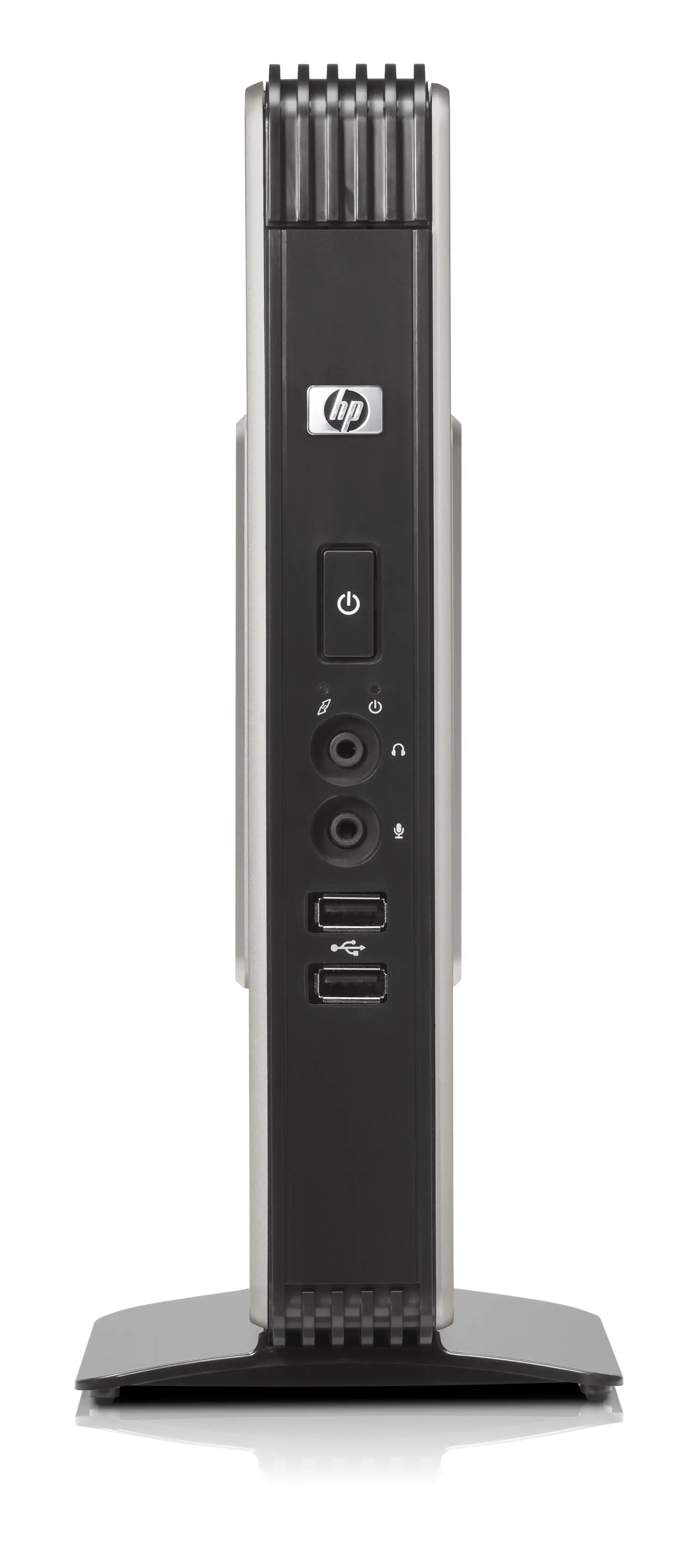

HP Compaq t5735 Thin Client 1 GHz GY231AA
Verified Hardware Upgrade & Compatibility Guide • 100% Real OEM Database Specifications
Processor (CPU)
2100+
1 GHz
Maximum Supported RAM
64 GB
2x SO-DIMM
Primary Interface
NVMe
Battery & Charger
OEM Battery
Standard AC
⚡ Architecture & Upgrade Diagnostics
Verified OEM Timing & Interface Analysis
Processor
● Installed
⚡ 2100+
AMD Sempron 2100+, 1 GHz
Max Turbo:
1 GHz
Memory Architecture
● Upgradeable
🧠 2x
Motherboard supports standard sockets at high speed up to 64 GB.
Base Installed:
N/A
Max Supported:
64 GB
Storage Architecture
● Upgradeable
💾 NVMe
Supports high-speed solid-state drives. Form factor is standard 2280.
Installed SSD:
1 GB
Clearance:
Single-sided 2280
Battery & Power
● Verified OEM
🔋 Internal Battery
High density battery paired with rapid AC adapter for fast recharging.
Battery Capacity:
N/A
Charger Rating:
N/A
Verified Compatible Upgrades
Showing top verified compatible upgrades out of 0
OEM Hardware Specification
Direct Fit Guarantee
🔋 HP High Capacity Li-Polymer Internal Battery
This laptop is engineered with a high performance Li-Polymer internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.
No compatible components currently listed.
100% Verified Database Specs
60 parameters found
📋 OEM Hardware Technical Specifications (product_specifications table)
Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.
Genel
Garanti Süresi / Detayı
Standart garanti bildirimi: 3 yıl alma ve iade servisi (Belirli sınırlamalar vardır)
Satılan Pazarlar
UA, CH
Sisteme Eklenme Tarihi
2008-01-02
Satışa Çıkış Tarihi
2008-12-06
Bağlantı
G/Ç Bağlantı Noktası
8 USB 2.0 ports (two in front, four in rear, two in secure USB compartment), 1 VGA, 1 DVI-D, 2 PS/2, 1 serial, 1 RJ-45 and 1 optional Expansion Module with PCI or PCIe x1, including 1 parallel and second serial port
Teknik
Ag Arabirimi
10/100 BaseT Fast Ethernet, twisted pair (RJ-45), TCP/IP with DNS and DHCP, Point-to-Point Protocol (PPP), Direct Connection through RS-232, Wake on LAN (WOL), PXE
Ağırlık
1,6 kg
Ağırlık Imperiyal
3.5 lb
with stand lbs
Arka Delikler
4 USB 2.0; 1 VGA-in; 1 DVI-D; 2 PS/2; 1 RJ-45; 1 parallel; 1 serial
Bağlantılar
TCP/IP, DNS, DHCP, PPP, WOL, PXE
Boyut Imperial
4,57 cm (1.8")
Boyut Notu İngiliz Ölçü Standardi
With stand
Boyut Notu Metrik
With stand
Boyutlar Gxdxy
45,7 x 215,1 x 266,7 mm
Boyutlar Metrik Sehpa Ile
45,7 x 215,1 x 266,7 mm
Çalışma Isısı Aralığı
10 - 40 °C
Dahili Ses
Output: Internal amplified speaker, 1/8-inch mini, full 16-bit stereo, 44 kHz sample rate; Input: 1/8-inch mini microphone, Mic In/Headphone Out
Depolama Sıcaklığı Aralığı Celsius
-30 - 60 °C
Desteklenen Tarayicilar
Debian Iceweasel (Firefox) browser
Ergonomik Ozellikler
Safety: UL 1950, CSA 950, TÜV-GS (EN60 950) approved; RF Interference: FCC Class B, CE Mark, EN55022B, VCCI
German ZH1/618, EN29241-3, approved
Fiber Kanal Protokolleri
USB or PS/2, VGA-type video output, local printer support
G C Bağlantı Noktasi
8 USB 2.0 ports (two in front, four in rear, two in secure USB compartment), 1 VGA, 1 DVI-D, 2 PS/2, 1 serial, 1 RJ-45 and 1 optional Expansion Module with PCI or PCIe x1, including 1 parallel and second serial port
Genisletme Yuvalari
Optional Expansion Module (1 PCI and PCIe, 1 parallel, 1 serial port)
Grafik Alt Sistemi Adi
ATI Radeon X1250 graphics with support for high-resolution monitors up to 2048 x 1536 or up to 32-bit color depth
Grafik Kartı Notu
32 MB reserved for graphics memory
Gtin
0883585596133
Gtin Ean Upc
0883585596133, 883585596133, 0883585486687, 883585486687, 0883585596157, 883585596157, 0883585596232, 883585596232, 0883585596287, 883585596287, 0883585596294, 883585596294, 0883585486762, 883585486762, 0883585596270, 883585596270, 0883585486779, 883585486779, 0883585486755, 883585486755, 0883585486786, 883585486786, 0883585596249, 883585596249, 0883585596256, 883585596256, 0883585596263, 883585596263, 0883585486694, 883585486694, 0883585486700, 883585486700, 0883585486717, 883585486717, 0883585486724, 883585486724, 0883585596072, 883585596072, 0883585596089, 883585596089, 0883585596096, 883585596096, 0883585486656, 883585486656, 0883585596102, 883585596102, 0883585486663, 883585486663, 0883585596119, 883585596119, 0883585596126, 883585596126, 0883585486731, 883585486731, 0883585486748, 883585486748, 0883585486670, 883585486670, 0883585596140, 883585596140, 0883585596164, 883585596164, 0883585596171, 883585596171, 0883585596188, 883585596188, 0883585596195, 883585596195, 0883585596201,
Güç Gereksinimleri
Worldwide auto-sensing 100-240 VAC, 50-60 Hz energy-saving automatic power-down, surge-tolerant 50 W power supply
Güç Kaynagi Türü
100-240 VAC, 50-60 Hz
Isaret Aygiti
HP PS/2 2-Button Optical Scroll Mouse.
İşlemci
2100+
İşlemci Ailesi
AMD Sempron
İşlemci Frekansı
1 GHz
Kasa
Standard Thin Client
Kategori
Thin Clients/Blade Pcs
Klavye
HP USB Standard keyboard.
Marka
HP
Menşe Ülkesi
Çin
Model Ailesi
Compaq
Model Serisi
1
Modem
N
Multimedya
Internal amplified speaker, 1/8-inch mini, full 16-bit stereo, 44-kHz sample rate; 1/8 inch mini microphone
Rom Tipi
Flash RAM
Sertifikalar Uygunluk Bildirimleri
UL 1950; CSA 950; TUV-GS (EN60 950); FCC Class B; CE Mark; EN55022B; VCCI
Ses
Output: Internal amplified speaker, 1/8-inch mini, full 16-bit stereo, 44 kHz sample rate; Input: 1/8-inch mini microphone, Mic In/Headphone Out
Standart Hafiza Kapasitesi
512 MB
Toplam Depolama Kapasitesi
1 GB
Unspsc Kodu
43211506
Üretim Tarihi
2008
Ürün Adi
Compaq t5735 Thin Client
Ürün Boyutlari Sehpa Ile G X D X Y Imperial
45,7 x 215,1 x 266,7 mm (1.8 x 8.47 x 10.5")
Ürün Boyutlari Sehpasiz G X D X Y Imperial
45,7 x 215,1 x 254 mm (1.8 x 8.47 x 10")
Ürün Kodu
Compaq t5735 Thin Client
Ürünle Gelen Yazilim
Altiris Deployment Solution, Citrix ICA, rdesktop RDP client, Terminal emulation software, HP ThinState for rapid deployment, other software available as add-ons.
Uyumlu İşletim Sistemi
Windows NT 4.0 Server family, Windows NT 4.0 Terminal Server Edition, Windows 2000/2003 Server families, Windows 2000/2003 Server Terminal Services, Windows 2000 Advance Server, Windows 2000 Advance Server Terminal Services, Citrix Presentation Server (up to 4.5), Citrix MetaFrame Presentation Server 3.0, Citrix Metaframe XP Presentation Server, Citrix Metaframe 1.x, VMware Virtual Desktop Infrastructure using RDP
Varsayilan Web Tarayici
Debian Iceweasel (Firefox)
Video Adaptoru Sürücüsü
Radeon X1250
Yapilandirma Yonetimi
Image and BIOS manageable via Altiris Deployment Solution, HP ThinState Tools for rapid deployment, DHCP support for configuration settings
Yonetim Yazilimi
Altiris Deployment Solution (full license) and HP ThinState included with each thin client.
Yuklenebilir Yazilim
Altiris Deployment Solution 6.5 (management console)
