ASUS · Server

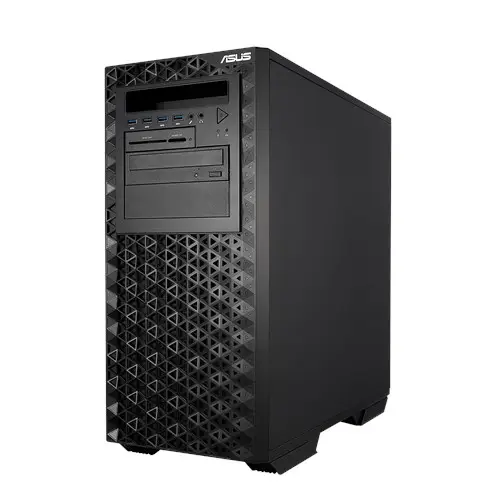

ASUS E900 G4 51 TB 90SF00L1-M01430
Product / variant code: 90SF00L1-M01430
Catalog specifications and upgrade research
Installed component specifications do not establish free slots or upgrade support. Check the model service documentation and exact part number.
Show processor and memory limits
Primary technical source: CPU library
Intel Xeon Silver 4214
- CPU maximum RAM
- 1 TB
- CPU speed limit for this memory type
- Not specified in source
- Maximum RAM in device record
- Not specified in source
- CPU memory channels / ECC
- 6 / Evet
DDR4-2400
The CPU limit is the primary capacity reference. It is not a tested device upgrade capacity; motherboard, BIOS, soldered memory and slot support need separate verification. Channel count is not physical slot count.
Hardware information in the source record
Processor
- Processor
- Intel® Xeon Silver 4214 (2. Nesil Ölçeklenebilir Intel® Xeon®, 12 Cores)
- Cores
- 12
RAM
- Memory type
- DDR4
- Module form
- Not specified in source
- Slot information
- 12
- Maximum capacity
- Not specified in source
- Installed memory
- Not specified in source
Storage
- SSD form
- Not specified in source
- SSD interface
- PCI Express 3.0
- Installed capacity
- Not specified in source
- Installed SSD count
- 1
Battery and power
- Battery capacity
- Not specified in source
- Battery technology
- Not specified in source
- Adapter power
- Not specified in source
Show compatibility notes
Slot and capacity note
Source slot information: 12. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.
BIOS and manufacturer support
Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.
Upgrade candidates
RAM and SSD candidates are shown as separate component groups. Products are matched against the source technical terms; compatibility is unverified and physical, electrical, capacity, firmware and service-document checks remain necessary.
No candidates were found using the available source information and candidate scan. This does not mean the device cannot be upgraded.
This list is a limited catalog sample. Amazon links open search results and include an affiliate tag. Exact part number matching for batteries, adapters and other spares is not yet available.
Inspect source specifications
Values are shown as recorded in the catalog; they do not imply independent compatibility testing. Conflicting fields are omitted from the summary above.
Genişletme yuvaları
- PCI Express x16 (Gen 3.x) yuvası
- 7
Bağlantı
- USB 3.2 Gen 2 (3.1 Gen 2) Tip-C port sayısı
- 1
- USB 2.0 bağlantı noktası sayısı
- 2
- PS/2 bağlantı noktaları
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Tip-A port sayısı
- 1
Genel
- Satılan Pazarlar
- CH
- Sisteme Eklenme Tarihi
- 2019-10-11
İşlemci özellikleri
- Yönlendirilmiş G/Ç (VT-d) için Intel® Sanallaştırma Teknolojisi
- Evet
Teknik
- Ağırlık
- 18,3 kg
- Ayrik Ekran Kartı Sayısı
- 4
- Ayrik Grafik Bagdastirici
- Evet
- Ayrik Grafik Bagdastirici Belleği
- 8 GB
- Bellek Düzeni
- 2 x 16 GB
- Bellek Yuvası Sayısı
- 12
- Çalışma Isısı Aralığı
- 10 - 35 °C
- Çalışmama Nemi
- 20 - 90%
- Dahili Bellek Tipi
- DDR4-SDRAM
- Dahili Sabit Disk Sürücüsü
- 2 TB
- Depolama Sıcaklığı Aralığı Celsius
- -40 - 70 °C
- Derinlik
- 283 mm
- Desteklenen Yonerge Setleri
- AVX-512
- Yürütmeyi Devre Dışı Bırakma Biti (Execute Disable Bit)
- Evet
- Enhanced Intel Speedstep Technology
- Evet
- Ethernet Arayuz Türü
- Gigabit Ethernet
- Ethernet LAN Bağlantısı
- Evet
- Ethernet LAN Rj 45 Port Sayısı
- 2
- Farkli Grafik Hafiza Türü
- GDDR6
- Genişletilmiş Sayfa Tabloları ile Intel VT-x (EPT)
- Evet
- Genişlik
- 532 mm
- Gömülü Secenekler Mevcut
- Evet
- Gtin Ean Upc
- 4718017536165
- Güç Gereksinimleri
- 4000 W
- Intel 64
- Evet
- Intel Aes New Instructions Intel Aes Ni
- Evet
- Intel Güvenilir Yürütme Teknolojisi
- Evet
- Intel Hyper Threading Technology Intel Ht Technology
- Evet
- Intel Sanallaştırma Teknolojisi (VT-x)
- Evet
- Intel Tsx Ni
- Evet
- Intel Turbo Boost Teknolojisi
- 2.0
- İşlemci
- 4214
- İşlemci Ailesi
- Intel® Xeon Silver
- İşlemci Ark Idsi
- 193385
- İşlemci Çalışma Modlari
- 64-bit
- Toplam Çekirdek Sayısı
- 12
- İşlemci Destek Frekansı
- 3,2 GHz
- İşlemci Frekansı
- 2,2 GHz
- İşlemci Kod Adi
- Cascade Lake
- İşlemci Litografi
- 14 nm
- İşlemci Nesli
- 2. Nesil Ölçeklenebilir Intel® Xeon®
- İşlemci On Bellek Türü
- Akıllı Önbellek
- İşlemci Önbelleği
- 16,5 MB
- İşlemci Paket Boyutu
- 76.0 x 56.5 mm
- İşlemci Tarafindan Desteklenen Bellek Tipleri
- DDR4-SDRAM
- İşlemci Tarafindan Desteklenen Maksimum Ic Bellek
- 1 TB
- İşlemci Tarafindan Desteklenen Saat Hizlari
- 2400 MHz
- İşlemci Üreticisi
- Intel
- Kablo Teknolojisi
- 10/100/1000Base-T(X)
- Kasa
- Mini Dikey (Tower)
- Kategori
- Sunucular
- Kurulan Ssd Sayısı
- 1
- Lan Kontroloru
- Intel I210
- Marka
- ASUS
- Olculebilirlik
- 2S
- Dahili Grafik Bağdaştırıcı Modeli
- Mevcut değil
- Optik Sürücüler
- DVD-RW
- Paket Ağırlığı
- 23,1 kg
- Pci Express Giriş Versiyonu
- 3.0
- Pci Express Hatlarinin Maksimum Sayısı
- 48
- Raid Desteği
- Evet
- Raid Seviyesi
- 0, 1, 5, 10
- Ram
- 32 GB
- Sabit Bellek Arayüzü
- Serial ATA III
- Sabit Disk Boyutu
- 2.5"
- Sabit Disk Sürücüsü Hızı
- 7200 RPM
- Sert Durum Disk Sürücü Kapasite
- 512 GB
- Sert Durum Disk Sürücüsü Arayuzleri
- PCI Express 3.0
- Sertifikalar Uygunluk Bildirimleri
- BSMI, CE, FCC(Class A)
- Sıralı İşlemci Sayısı
- 24
- T Bağlantısi
- 100 °C
- T Cantasi
- 77 °C
- Termal Tasarim Gücü
- 85 W
- Toplam Depolama Kapasitesi
- 2,51 TB
- Ürün Adi
- E900 G4
- Ürün Kodu
- 90SF00L1-M01430
- Ürün Rengi
- Siyah
- Uyumlu İşletim Sistemi
- Windows Server 2016 64 bit Windows 10
- Yedek Güç Kaynagi
- Evet
- Yuklu İşlemcilerin Sayısı
- 2
- Yükseklik
- 582 mm
Diğer Özellikler
- Chipset
- Intel® C621
İşlemci
- İşlemci Soketi
- LGA 3647 (Socket P)
RAM
- Bellek Kapasitesi
- 1,53 TB
