TERRA · Server

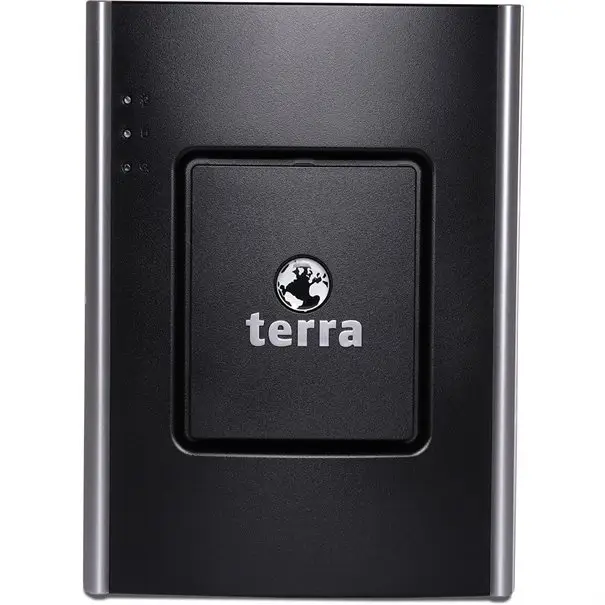

TERRA MimiServer G4 960 GB 1100147
Product / variant code: 1100147
Catalog specifications and upgrade research
Installed component specifications do not establish free slots or upgrade support. Check the model service documentation and exact part number.
Show processor and memory limits
Primary technical source: CPU library
Intel Xeon E-2136
- CPU maximum RAM
- 128 GB
- CPU speed limit for this memory type
- Not specified in source
- Maximum RAM in device record
- Not specified in source
- CPU memory channels / ECC
- Çift kanallı / Evet
DDR4-2666
The CPU limit is the primary capacity reference. It is not a tested device upgrade capacity; motherboard, BIOS, soldered memory and slot support need separate verification. Channel count is not physical slot count.
Device summary and source informationTERRA MimiServer G4 960 GB 1100147 · DDR4 · Not specified in source · Not specified in source Open details
Hardware information in the source record
Processor
- Processor
- Intel® Xeon® E-2136, 6 Cores
- Cores
- 6
RAM
- Memory type
- DDR4
- Module form
- Not specified in source
- Slot information
- 2
- Maximum capacity
- Not specified in source
- Installed memory
- Not specified in source
Storage
- SSD form
- Not specified in source
- SSD interface
- Not specified in source
- Installed capacity
- Not specified in source
- Installed SSD count
- 2
Battery and power
- Battery capacity
- Not specified in source
- Battery technology
- Not specified in source
- Adapter power
- Not specified in source
Show compatibility notes
Slot and capacity note
Source slot information: 2. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.
BIOS and manufacturer support
Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.
Upgrade candidates
RAM and SSD candidates are shown as separate component groups. Products are matched against the source technical terms; compatibility is unverified and physical, electrical, capacity, firmware and service-document checks remain necessary.
No candidates were found using the available source information and candidate scan. This does not mean the device cannot be upgraded.
This list is a limited catalog sample. Amazon links open search results and include an affiliate tag. Exact part number matching for batteries, adapters and other spares is not yet available.
Inspect source specifications
Values are shown as recorded in the catalog; they do not imply independent compatibility testing. Conflicting fields are omitted from the summary above.
Genel
- Satılan Pazarlar
- GB, IT
- Sisteme Eklenme Tarihi
- 2019-04-23
Bağlantı
- USB 2.0 bağlantı noktası sayısı
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Tip-C port sayısı
- 1
İşlemci özellikleri
- Yönlendirilmiş G/Ç (VT-d) için Intel® Sanallaştırma Teknolojisi
- Evet
Teknik
- Ağırlık
- 16,5 kg
- Ayrik Grafik Bagdastirici
- Evet
- Bellek Düzeni
- 2 x 8 GB
- Bellek Yuvası Sayısı
- 2
- Çalışma Isısı Aralığı
- 10 - 35 °C
- Calistirma Nem Aralığı
- 10 - 75%
- Cpu Konfigurasyonu
- 1
- Dahili Bellek Tipi
- DDR4-SDRAM
- Derinlik
- 340 mm
- Desteklenen Ihtiyac Fazlasi Güç Kaynagi Sayısı
- 1
- Desteklenen Yonerge Setleri
- AVX 2.0, SSE4.1, SSE4.2
- Yürütmeyi Devre Dışı Bırakma Biti (Execute Disable Bit)
- Evet
- Ecc
- Evet
- Enhanced Intel Speedstep Technology
- Evet
- Ethernet LAN Bağlantısı
- Evet
- Ethernet LAN Rj 45 Port Sayısı
- 1
- Genişletilmiş Sayfa Tabloları ile Intel VT-x (EPT)
- Evet
- Genişlik
- 200 mm
- Gömülü Secenekler Mevcut
- Hayir
- Grafik Alt Sistemi Ekran Kartı Belleği
- 32 MB
- Gtin Ean Upc
- 4039407051823
- Güç Gereksinimleri
- 400 W
- Hafiza Frekans Hızı
- 2400 MHz
- Intel 64
- Evet
- Intel Aes New Instructions Intel Aes Ni
- Evet
- Intel Güvenilir Yürütme Teknolojisi
- Evet
- Intel Guvenli Anahtar
- Evet
- Intel Guvenli Anahtar Teknolojisi Versiyonu
- 1,00
- Intel Hyper Threading Technology Intel Ht Technology
- Evet
- Intel Os Korumasi
- Evet
- Intel Sanallaştırma Teknolojisi (VT-x)
- Evet
- Intel Tsx Ni
- Evet
- Intel Tsx Ni Versiyonu
- 1,00
- Intel Turbo Boost Teknolojisi
- 2.0
- Intel Yazilim Koruma Uzantilari Intel Sgx
- Evet
- Intel Zenginlestirilmis Sonlandirma Durumu
- Evet
- İşlemci
- E-2136
- İşlemci Ailesi
- Intel® Xeon®
- İşlemci Ark Idsi
- 134857
- İşlemci Çalışma Modlari
- 64-bit
- Toplam Çekirdek Sayısı
- 6
- İşlemci Destek Frekansı
- 4,5 GHz
- İşlemci Frekansı
- 3,3 GHz
- İşlemci Kod Adi
- Coffee Lake
- İşlemci Litografi
- 14 nm
- İşlemci On Bellek Türü
- Akıllı Önbellek
- İşlemci Önbelleği
- 12 MB
- İşlemci Paket Boyutu
- 37.5 x 37.5 mm
- İşlemci Tarafindan Desteklenen Bellek Bant Genişliği Maks
- 41,6 GB/s
- İşlemci Tarafindan Desteklenen Bellek Tipleri
- DDR4-SDRAM
- İşlemci Tarafindan Desteklenen Maksimum Ic Bellek
- 128 GB
- İşlemci Tarafindan Desteklenen Saat Hizlari
- 2666 MHz
- İşlemci Üreticisi
- Intel
- Kasa
- Mini Dikey (Tower)
- Kategori
- Sunucular
- Boşta Çalışma Durumları
- Evet
- Kurulan Ssd Sayısı
- 2
- Marka
- TERRA
- Olculebilirlik
- 1S
- Dahili Grafik Bağdaştırıcı Modeli
- Mevcut değil
- Otobus Tipi
- DMI3
- Pci Express Giriş Versiyonu
- 3.0
- Pci Express Hatlarinin Maksimum Sayısı
- 16
- Pci Express Konfigurasyonlari
- 1x16, 2x8, 1x8+2x4
- Raid Desteği
- Evet
- Ram
- 16 GB
- Sert Durum Disk Sürücü Kapasite
- 480 GB
- Sıralı İşlemci Sayısı
- 12
- Sistem Busu
- 8 GT/s
- Ssd Boyutu
- M.2
- T Bağlantısi
- 100 °C
- Termal Gozleme Teknolojileri
- Evet
- Termal Tasarim Gücü
- 80 W
- Toplam Depolama Kapasitesi
- 960 GB
- Ürün Adi
- MimiServer G4
- Ürün Ailesi
- TERRA
- Ürün Kodu
- 1100147
- Ürün Rengi
- Siyah
- Uyumlu İşletim Sistemi
- Windows Server 2016
- Vga D Sub Bağlantı Noktasi Sayısı
- 1
- Yuklu İşlemcilerin Sayısı
- 1
- Yükseklik
- 270 mm
İşlemci
- İşlemci Soketi
- LGA 1151 (Soket H4)
Isletim Sistemi
- İşletim Sistemi
- Windows Server 2019 Standard
RAM
- Bellek Kapasitesi
- 32 GB
