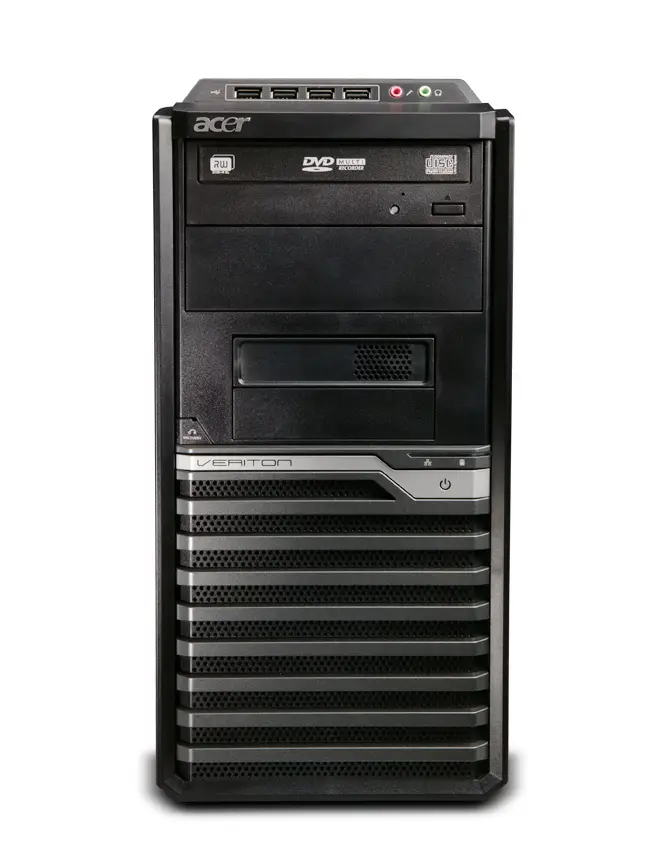

Acer Veriton 4610G 4 GB DT.VC4EH.005

Hardware specifications and upgrade assessment

Processor (CPU)

OEM CPU

Not specified in source

Device maximum RAM

16 GB

4x DIMM DDR3 · Onboard / yükseltilemez · CPU Not specified in source @ Not specified in source (çip külliyatı)

Interfaz Principal

Not specified in source

Battery & Charger

OEM Battery

Standard AC

⚡ Architecture & Upgrade Diagnostics

Source Timing & Interface Data

Processor ● Installed

⚡ OEM CPU

High performance multi-core processor powering demanding workloads and fast memory buses.

Max Turbo: N/A

Memory Architecture ● Actualizable

🧠 4x DIMM DDR3

Device record: DDR3 at Not specified in source up to 16 GB.

Base Installed: 4 GB

Max Supported: 16 GB

CPU theoretical limit: Not specified in source

Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: N/A

Clearance: Not specified in source

Battery & Power ● Source record

🔋 Internal Battery

High density battery paired with rapid AC adapter for fast recharging.

Battery Capacity: N/A

Charger Rating: N/A

ℹ️

Slot and capacity note

Source slot information: 4x DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 Acer High Capacity Li-Polymer Internal Battery

This laptop is engineered with a high performance Li-Polymer internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →

No compatible components currently listed.

Source specifications 111 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Ports & interfaces

VGA (D-Sub) ports quantity 1

Ethernet LAN (RJ-45) ports 1

DisplayPorts quantity 1

DVI port Yes

USB 2.0 ports quantity 10

Microphone in Yes

Headphone outputs 1

Processor special features

Processor code SR02L

CPU configuration (max) 1

Embedded options available No

Intel Virtualization Technology for Directed I/O (VT-d) No

Intel Identity Protection Technology version 1.00

Intel Virtualization Technology (VT-x) Yes

Intel Dual Display Capable Technology Yes

Intel FDI Technology Yes

Processor ARK ID 53446

Memory types supported by processor DDR3-SDRAM

Intel® Wireless Display (Intel® WiDi) No

Intel® Identity Protection Technology (Intel® IPT) Yes

Intel® Turbo Boost Technology 2.0

Intel® Clear Video HD Technology (Intel® CVT HD) Yes

Intel® InTru™ 3D Technology Yes

Intel® Quick Sync Video Technology Yes

Intel Trusted Execution Technology No

Intel Enhanced Halt State Yes

Intel VT-x with Extended Page Tables (EPT) Yes

Execute Disable Bit Yes

Idle States Yes

Thermal Monitoring Technologies Yes

Processor package size 37.5 x 37.5 mm

Supported instruction sets AVX, SSE4.1, SSE4.2

Processor

Thermal Design Power (TDP) 95 W

Maximum number of PCI Express lanes 16

Processor frequency 3 GHz

PCI Express slots version 2.0

Processor cores 4

CPU multiplier (bus/core ratio) 30

ECC supported by processor No

Processor socket LGA 1155 (Socket H2)

Number of processors installed 1

Tcase 72.6 °C

Maximum internal memory supported by processor 32 GB

Memory bandwidth supported by processor (max) 21 GB/s

Processor model i5-2320

Memory clock speeds supported by processor 1066,1333 MHz

Processor family Intel® Core™ i5

Processor manufacturer Intel

Processor generation 2nd gen Intel® Core™ i5

Processor threads 4

Processor boost frequency 3.3 GHz

System bus rate 5 GT/s

Processor cache 6 MB

Processor cache type Smart Cache

Processor lithography 32 nm

Processor operating modes 64-bit

Processor codename Sandy Bridge

Bus type DMI

Stepping D2

Storage

Card reader integrated No

Optical drive type DVD Super Multi

Number of HDDs installed 1

Total storage capacity 500 GB

HDD interface SATA III

Memory

Internal memory 4 GB

Memory slots 4x DIMM

Internal memory type DDR3-SDRAM

Maximum internal memory 16 GB

Memory layout (slots x size) 2 x 2 GB

Memory channels Dual-channel

Graphics

On-board graphics card Yes

Discrete graphics card model Not available

On-board graphics card model Intel® HD Graphics 2000

On-board graphics card family Intel® HD Graphics

On-board graphics card base frequency 850 MHz

On-board graphics card dynamic frequency (max) 1100 MHz

On-board graphics card ID 0x102

Number of displays supported (on-board graphics) 2

Network

Ethernet LAN Yes

Ethernet LAN data rates 10,100,1000 Mbit/s

Display

Display included No

Software

Operating system installed Windows 7 Professional

Audio

Audio system High Definition Audio

Audio output channels 5.1 channels

Other features

Graphics card family Intel

Intel segment tagging Enterprise, Small Business

Performance

Motherboard chipset Intel® Q65 Express

Product type PC

Hard drive

HDD capacity 500 GB

HDD speed 7200 RPM

Genel

Satılan Pazarlar FR

Sisteme Eklenme Tarihi 2012-01-28

Design

Product colour Black

Chassis type Tower

Weight & dimensions

Width 180 mm

Depth 440 mm

Height 352 mm

Technical details

Power supply 300 W

Teknik

Enhanced Intel Speedstep Technology Yes

Gtin Ean Upc 4712196047139

Intel 64 Yes

Intel Aes New Instructions Intel Aes Ni Yes

Intel Fast Memory Access Yes

Intel Flex Memory Access Yes

Intel Hyper Threading Technology Intel Ht Technology No

Intel Insider Yes

Kategori PCs/Workstations

Marka Acer

Ürün Adi 4610G

Ürün Ailesi Veriton

Ürün Kodu DT.VC4EH.005

Wi Fi No
