DirectUpgrades Verified Hardware

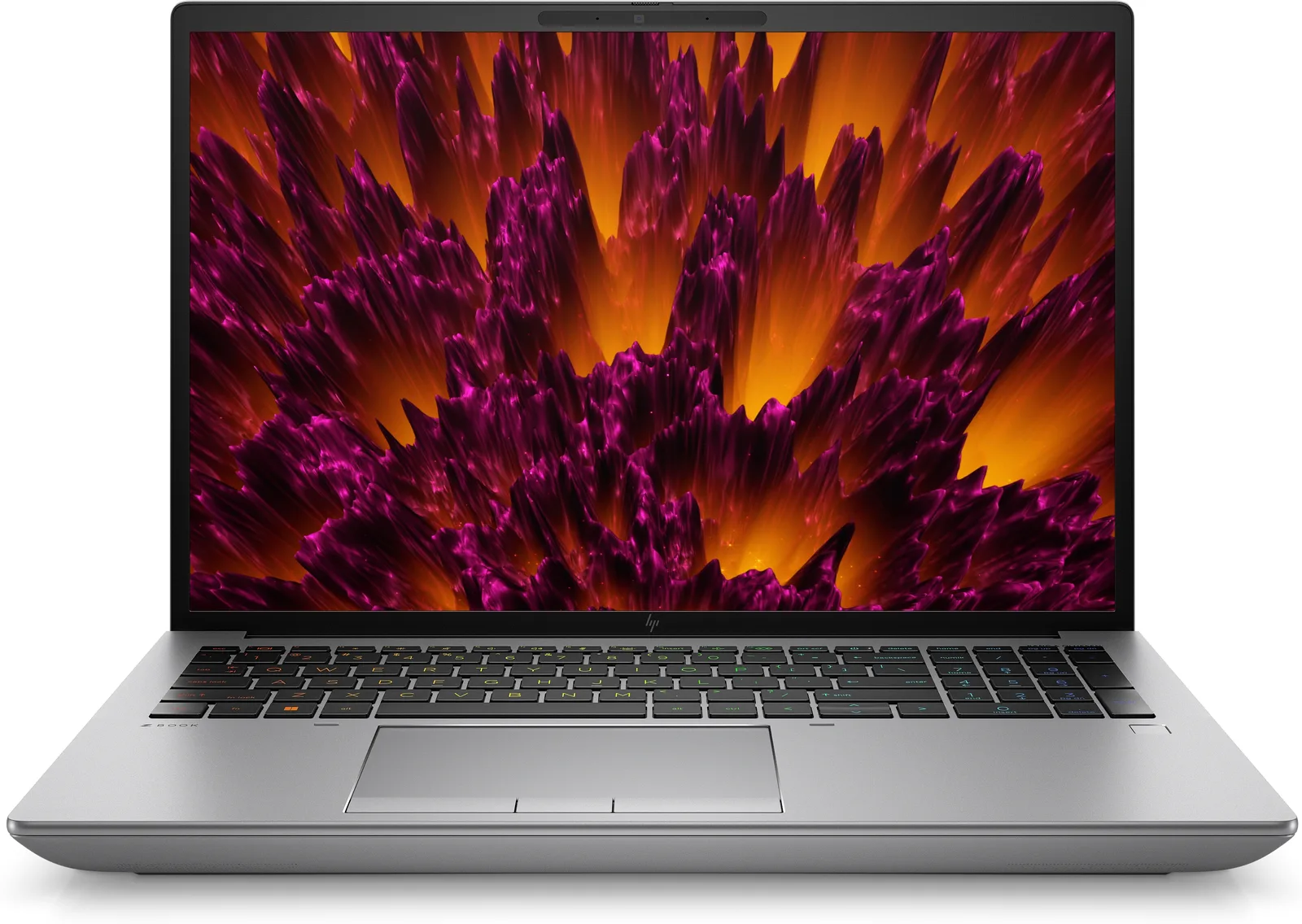

HP ZBook Fury 16 G10 62V74EA HP
LAPTOP ⚡ Intel® Core™ i9 i9-13950HX (13. Nesil Intel® Core™ i9, 24 Cores)

HP ZBook Fury 16 G10 62V74EA

Hardware specifications and upgrade assessment

Processor (CPU)
i9-13950HX
24 Cores
Device maximum RAM
128 GB
4x SO-DIMM DDR5 · Onboard / yükseltilemez · CPU 128 GB @ 5600 MT/s (çip külliyatı)
Interfaz Principal
Not specified in source NVMe
PCI Express
Battery & Charger
95 Wh
230 W AC Adapter

⚡ Architecture & Upgrade Diagnostics

Source Timing & Interface Data
Processor ● Installed

⚡ i9-13950HX

Intel® Core™ i9 i9-13950HX (13. Nesil Intel® Core™ i9, 24 Cores)

Max Turbo: N/A
Cores: 24
Memory Architecture ● Actualizable

🧠 4x SO-DIMM DDR5

Device record: DDR5 at 5600 MHz up to 128 GB.

Base Installed: 32 GB
Max Supported: 128 GB
CPU theoretical limit: 128 GB
Storage Architecture ● Source record

💾 Not specified in source NVMe

Recorded interface: PCI Express. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: 1 TB
Clearance: Not specified in source
Battery & Power ● Source record

🔋 95 Wh

Lityum Polimer (LiPo) paired with 230 W AC adapter for fast recharging.

Battery Capacity: 95 Wh
Charger Rating: 230 W
ℹ️

DDR5 capacity and module selection

For modules such as 24 GB or 48 GB, check the device manufacturer’s supported parts and BIOS version. Mixed-capacity operation cannot be established from capacity numbers alone. A matched kit alone does not guarantee device compatibility.

ℹ️

Slot and capacity note

Source slot information: 4x SO-DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 HP 95 Wh Lityum Polimer (LiPo) Internal Battery

This laptop is engineered with a 95 Wh Lityum Polimer (LiPo) internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →
No compatible components currently listed.
Source specifications 130 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Genel

Sisteme Eklenme Tarihi 2023-04-28
Satışa Çıkış Tarihi 2023-07-01

İşlemci özellikleri

Yönlendirilmiş G/Ç (VT-d) için Intel® Sanallaştırma Teknolojisi Evet

Bağlantı

USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı 2
Birleşik kulaklık/mikrofon portu Evet
Wi-Fi standartlari Wi-Fi 6E (802.11ax)

Teknik

AC Adaptor Gücü 230 W
Ağırlık 2,4 kg
Ambalaj Derinliği 69 mm
Ambalaj Genişliği 552 mm
Ambalaj Yüksekliği 345 mm
Anten Tipi 2x2
Ayarlanabilir Tdp Asagi 45 W
Ayrik Ekran Kartı Modeli NVIDIA RTX 4000 Ada
Ayrik Ekran Kartı Sayısı 1
Ayrik Gpu Üreticisi NVIDIA
Ayrik Grafik Bagdastirici Evet
Ayrik Grafik Bagdastirici Belleği 12 GB
Bellek Düzeni 2 x 16 GB
Bellek Yuvası Sayısı 4x SO-DIMM
Bluetooth Evet
Bluetooth Versiyonu 5.3
Cpu Konfigurasyonu 1
Dahili Bellek Tipi DDR5-SDRAM
Dahili Hoparlör Sayısı 2
Dahili Mikrofon Evet
Dahili Ses B&O PLAY
Depolama Ortami SSD
Derinlik 250,6 mm
Dokmeye Dayanikli Klavye Evet
Dokunmatik Ekran Hayir
Ecc Hayir
Ekran Çözünürlüğü 1920 x 1200 Piksel
Ekran Parlaklığı 400 cd/m²
Entegre Grafik Kartı Evet
Ethernet LAN Bağlantısı Evet
Ethernet LAN Rj 45 Port Sayısı 1
Ethernet LAN Veri Transfer Hızı 10,100,1000 Mbit/s
Farkli Grafik Hafiza Türü GDDR6
Form Faktörü Kapaklı
Genişletilmiş Sayfa Tabloları ile Intel VT-x (EPT) Evet
Genişlik 363 mm
Giriş Aygiti Modeli Teclado silencioso HP Premium
Gömme Hoparlörler Evet
Gömülü Secenekler Mevcut Hayir
Gtin Ean Upc 0196188220238, 196188220238
Guvenilir Platform Modulu Versiyonu 2.0
Guvenli Platform Modulu Tpm Evet
Hafiza Frekans Hızı 5600 MHz
Hafiza Kanallari Çift kanallı
Hd Türü WUXGA
Hdmi Port Sayısı 1
Hdmi Versiyonu 2.1
Hoparlörler Ve Mikrofon Bang & Olufsen
Hp Jumpstart Evet
Hp Segmenti İş
Hp Support Assistant Evet
Intel Flex Memory Access Evet
Intel Sanallaştırma Teknolojisi (VT-x) Evet
Isaret Aygiti Dokunmalı tablet
İşlemci i9-13950HX
İşlemci Ailesi Intel® Core™ i9
Toplam Çekirdek Sayısı 24
İşlemci Destek Frekansı 5,5 GHz
İşlemci Frekansı 2,2 GHz
İşlemci Nesli 13. Nesil Intel® Core™ i9
İşlemci On Bellek Türü L3
İşlemci Önbelleği 36 MB
İşlemci Üreticisi Intel
Kablo Kilit Yuvası Evet
Kategori Notebooklar/Dizüstü Bilgisayarlar
Kizilotesi Ir Kamera Evet
Klavye Arka Işığı Evet
Klavye Dahil Evet
Klavye Ozel Vasiflari Resistente a derrames
Kurulan Ssd Sayısı 1
Marka HP
Mikrofon Adedi 2
Mini Displayport Sayısı 1
Mobil Ag Bağlantısi Hayir
Non Ecc Evet
Nvme Evet
Dahili Grafik Bağdaştırıcı Modeli Intel® UHD Graphics
On Kamera Evet
On Kamera Çözünürlüğü 5 MP
Optik Sürücüler Hayir
Orijinal Marka Adi HP
Otobus Tipi DMI4
Panel Tipi IPS
Parmak Izi Okuyucu Evet
Pazar Konumlandirmasi Performans
Pil Kapasitesi 95 Wh
Pil Sayısı 8
Pil Teknolojisi Lityum Polimer (LiPo)
Ram 32 GB
Renk Skalasi 100%
Rgb Renk Alani sRGB
Sayısal Tuş Takımı Evet
Sert Durum Disk Sürücü Kapasite 1 TB
Sert Durum Disk Sürücüsü Arayuzleri PCI Express
Sifre Koruma BIOS, Açılış, Kullanıcı
Sifre Korumasi Evet
Sıralı İşlemci Sayısı 32
Ssd Bellek Tipi TLC
Surdurulebilirlik Sertifikaları TCO
Surdurulebilirlik Uyumluluğu Evet
Tam Boyutlu Klavye Evet
Thunderbolt 4 Bağlantı Noktasi Sayısı 2
Toplam Depolama Kapasitesi 1 TB
Toplam Ssd Kapasitesi 1 TB
Ürün Adi 16 G10
Ürün Ailesi ZBook Fury
Ürün Kodu 62V74EA
Ürün Rengi Gümüş
Ürün Tipi Mobil iş istasyonu
Usb C Tipi Displayport Degisken Modu Evet
Usb Güç Dagitimi Evet
Usb Uyku Ve Sarj Evet
Usb Uyku Ve Sarj Portlari 2
Wi Fi Evet
Wi Fi Standardi Wi-Fi 6E (802.11ax)
Wlan Denetleyici Üreticisi Intel
Wlan Kumanda Modeli Intel Wi-Fi 6E AX211
Yansimasiz Ekran Evet
Doğal En-Boy Oranı 16:10
Yerlesik Gpu Üreticisi Intel
Yerlesik Grafik Bagdastirici Ailesi Intel® UHD Graphics
Yükseklik 28,6 mm

Ekran

Ekran Boyutu 40,6 cm | 40,6 cm (16")

Isletim Sistemi

İşletim Sistemi Windows 11 Pro

RAM

Bellek Kapasitesi 128 GB
