Lenovo

SERVER ⚡ Intel® Xeon Silver 4210 (2. Nesil Ölçeklenebilir Intel® Xeon®, 10 Cores)

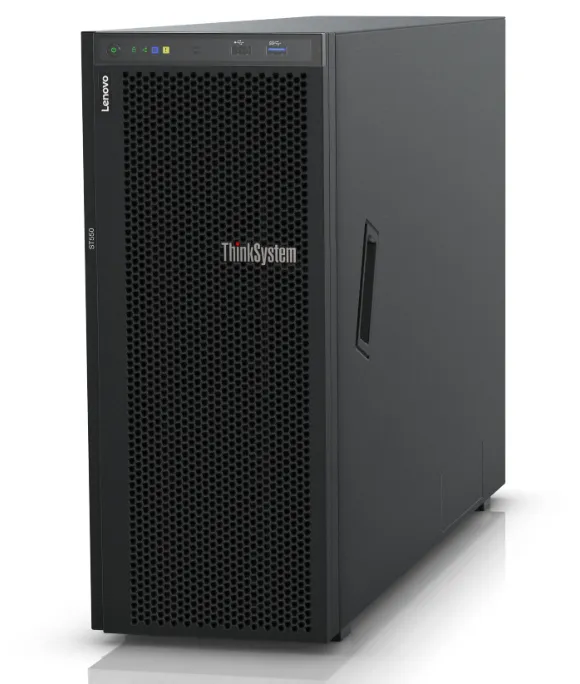

Lenovo ThinkSystem ST550 7X10A0F5EA

Hardware specifications and upgrade assessment

Processor (CPU)

4210

10 Cores

Device maximum RAM

1 TB

12x DIMM DDR4 · Onboard / yükseltilemez · CPU 1 TB @ Not specified in source (çip külliyatı)

Interfaz Principal

Not specified in source

Battery & Charger

OEM Battery

Standard AC

⚡ Architecture & Upgrade Diagnostics

Source Timing & Interface Data

Processor ● Installed

⚡ 4210

Intel® Xeon Silver 4210 (2. Nesil Ölçeklenebilir Intel® Xeon®, 10 Cores)

Max Turbo: N/A

Cores: 10

Memory Architecture ● Actualizable

🧠 12x DIMM DDR4

Device record: DDR4 at 2933 MHz up to Not specified in source.

Base Installed: 32 GB

Max Supported: Not specified in source

CPU theoretical limit: 1 TB

Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: N/A

Clearance: Not specified in source

Battery & Power ● Source record

🔋 Internal Battery

High density battery paired with rapid AC adapter for fast recharging.

Battery Capacity: N/A

Charger Rating: N/A

ℹ️

Slot and capacity note

Source slot information: 12x DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 Lenovo High Capacity Li-Polymer Internal Battery

This laptop is engineered with a high performance Li-Polymer internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →

No compatible components currently listed.

Source specifications 49 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Genel

Satılan Pazarlar NL, GB, DE, DK, TR, BE, PL, FR

Sisteme Eklenme Tarihi 2023-11-04

Bağlantı

USB 2.0 bağlantı noktası sayısı 5

USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı 3

Teknik

Ağırlık 36 kg

Ana Güç Kaynagi Sayısı 1

Bellek Düzeni 1 x 32 GB

Bellek Yuvası Sayısı 12x DIMM

Dahili Bellek Tipi DDR4-SDRAM

Dahili Sürücü Bolmeleri 8

Derinlik 660 mm

Desteklenen Raid Kontrol Birimleri 930-8i

Ecc Evet

Entegre Grafik Kartı Evet

Ethernet LAN Bağlantısı Evet

Genişlik 176 mm

Grafik Alt Sistemi Ekran Kartı Belleği 16 MB

Gtin Ean Upc 5054444569413, 8032976161708

Güç Gereksinimleri 750 W

Guvenli Platform Modulu Tpm Evet

Hafiza Frekans Hızı 2933 MHz

İşlemci 4210

İşlemci Ailesi Intel® Xeon Silver

Toplam Çekirdek Sayısı 10

İşlemci Destek Frekansı 3,2 GHz

İşlemci Frekansı 2,2 GHz

İşlemci Nesli 2. Nesil Ölçeklenebilir Intel® Xeon®

İşlemci Önbelleği 13,75 MB

İşlemci Üreticisi Intel

Kablo Teknolojisi 10/100/1000Base-T(X)

Kasa Kule (4U)

Kategori Sunucular

Kullanilmayan Fan Desteği Evet

Marka Lenovo

Dahili Grafik Bağdaştırıcı Modeli Matrox G200

Raid Desteği Evet

Raid Seviyesi 0, 1, 5, 6, 10, 50, 60

Ram 32 GB

Ürün Adi ST550

Ürün Ailesi ThinkSystem

Ürün Kodu 7X10A0F5EA

Ürün Rengi Siyah

Uyumlu İşletim Sistemi Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi

Vga D Sub Bağlantı Noktasi Sayısı 1

Yedek Güç Kaynagi Evet

Yonetim Ozellikleri XClarity Enterprise

Yuklu İşlemcilerin Sayısı 1

Yükseklik 438 mm

Diğer Özellikler

Chipset фIntel® C624
