TERRA · Server

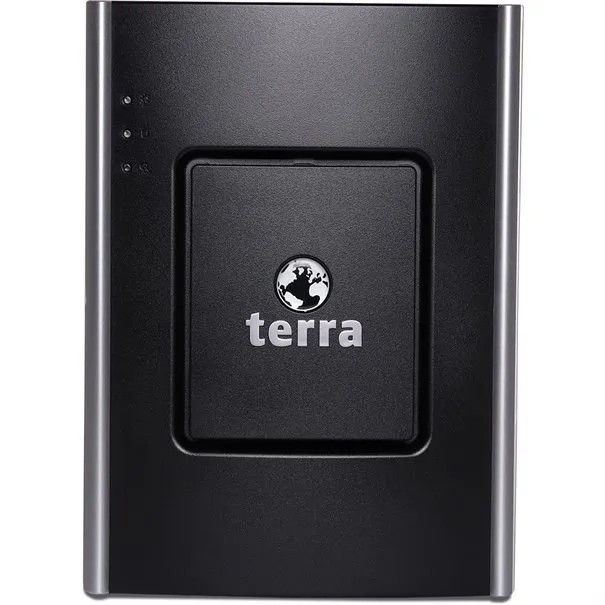

TERRA Miniserver G5 E-2388G/32/2x960 1100294
Product / variant code: 1100294
Catalog specifications and upgrade research
Installed component specifications do not establish free slots or upgrade support. Check the model service documentation and exact part number.
Show processor and memory limits
Primary technical source: CPU library
Intel Xeon E-2388G
- CPU maximum RAM
- 128 GB
- CPU speed limit for this memory type
- Not specified in source
- Maximum RAM in device record
- Not specified in source
- CPU memory channels / ECC
- — / —
The CPU limit is the primary capacity reference. It is not a tested device upgrade capacity; motherboard, BIOS, soldered memory and slot support need separate verification. Channel count is not physical slot count.
Hardware information in the source record
Processor
- Processor
- Intel® Xeon® E-2388G, 3,2 GHz, 8 Cores
- Cores
- 8
RAM
- Memory type
- DDR4
- Module form
- Not specified in source
- Slot information
- 2x DIMM
- Maximum capacity
- Not specified in source
- Installed memory
- 32 GB
Storage
- SSD form
- Not specified in source
- SSD interface
- SATA III
- Installed capacity
- Not specified in source
- Installed SSD count
- 2
Battery and power
- Battery capacity
- Not specified in source
- Battery technology
- Not specified in source
- Adapter power
- Not specified in source
Show compatibility notes
Slot and capacity note
Source slot information: 2x DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.
BIOS and manufacturer support
Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.
Upgrade candidates
RAM and SSD candidates are shown as separate component groups. Products are matched against the source technical terms; compatibility is unverified and physical, electrical, capacity, firmware and service-document checks remain necessary.
No candidates were found using the available source information and candidate scan. This does not mean the device cannot be upgraded.
This list is a limited catalog sample. Amazon links open search results and include an affiliate tag. Exact part number matching for batteries, adapters and other spares is not yet available.
Inspect source specifications
Values are shown as recorded in the catalog; they do not imply independent compatibility testing. Conflicting fields are omitted from the summary above.
Genel
- Satılan Pazarlar
- DE, BE, PT, FI
- Sisteme Eklenme Tarihi
- 2022-08-19
Bağlantı
- USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı
- 6
Teknik
- Ağırlık
- 16 kg
- Bellek Yuvası Sayısı
- 2x DIMM
- Brand
- TERRA
- Çalışma Isısı Aralığı
- 10 - 35 °C
- Calistirma Nem Aralığı
- 10 - 75%
- Category
- Sunucular
- Dahili Bellek Tipi
- DDR4-SDRAM
- Derinlik
- 340 mm
- Ecc
- Evet
- Entegre Grafik Kartı
- Evet
- Ethernet Arayuz Türü
- Gigabit Ethernet
- Ethernet LAN Bağlantısı
- Evet
- Ethernet LAN Rj 45 Port Sayısı
- 2
- Genişlik
- 200 mm
- Gtin Ean Upc
- 4039407072835
- Güç Gereksinimler Giriş Frekansı
- 50/60 Hz
- Güç Gereksinimleri
- 400 W
- Güç Gereksinimleri Giriş Voltajı
- 100 - 240 V
- İşlemci
- E-2388G
- İşlemci Ailesi
- Intel® Xeon®
- Toplam Çekirdek Sayısı
- 8
- İşlemci Frekansı
- 3,2 GHz
- İşlemci Önbelleği
- 16 MB
- İşlemci Üreticisi
- Intel
- Kasa
- Midi Dikey (Tower)
- Kategori
- Sunucular
- Kurulan Ssd Sayısı
- 2
- Lan Kontrolcu Sayısı
- 2
- Lan Kontroloru
- Intel I210
- Marka
- TERRA
- Dahili Grafik Bağdaştırıcı Modeli
- Aspeed AST2600
- Optik Sürücüler
- Hayir
- Product Family
- TERRA
- Product Name
- Miniserver G5 E-2388G/32/2x960
- Product Series
- 1
- Raf Montaji
- Evet
- Raid Desteği
- Evet
- Raid Seviyesi
- 6
- Ram
- 32 GB
- Sabit Disk Boyutu
- 2.5/3.5"
- Sert Durum Disk Sürücü Kapasite
- 960 GB
- Sert Durum Disk Sürücüsü Arayuzleri
- SATA III
- Toplam Depolama Kapasitesi
- 1,92 TB GB
- Ürün Adi
- Miniserver G5 E-2388G/32/2x960
- Ürün Ailesi
- TERRA
- Ürün Kodu
- 1100294
- Ürün Rengi
- Siyah
- Usb 3 2 Gen 1 3 1 Gen 1 Tip A Port Sayısı
- 6
- Uyumlu İşletim Sistemi
- Windows Server 2022 Windows Server 2019
- Vga D Sub Bağlantı Noktasi Sayısı
- 1
- Yedek Güç Kaynagi
- Evet
- Yuklu İşlemcilerin Sayısı
- 1
- Yükseklik
- 270 mm
Diğer Özellikler
- Chipset
- Intel C252
Isletim Sistemi
- İşletim Sistemi
- Hayir
RAM
- Bellek Kapasitesi
- 64 GB
