Dynabook

LAPTOP ⚡ AMD Ryzen™ 7 5800U (AMD Ryzen 5000 Series, 8 Cores)

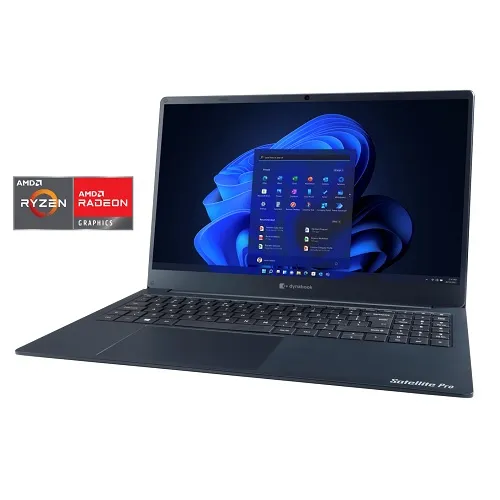

Dynabook Satellite Pro C50D-B-11C A1PYU13E118N

Hardware specifications and upgrade assessment

Processor (CPU)

5800U

8 Cores

Device maximum RAM

32 GB

2x SO-DIMM DDR4 · Onboard / yükseltilemez · CPU 64 GB @ Not specified in source (çip külliyatı)

Interface Principale

Not specified in source NVMe

M.2, PCI Express

Battery & Charger

45,6 Wh

Standard AC

⚡ Architecture & Upgrade Diagnostics

Source Timing & Interface Data

Processor ● Installed

⚡ 5800U

AMD Ryzen™ 7 5800U (AMD Ryzen 5000 Series, 8 Cores)

Max Turbo: N/A

Cores: 8

Memory Architecture ● Évolutive

🧠 2x SO-DIMM DDR4

Device record: DDR4 at 3200 MHz up to 32 GB.

Base Installed: 16 GB

Max Supported: 32 GB

CPU theoretical limit: 64 GB

Storage Architecture ● Source record

💾 Not specified in source NVMe

Recorded interface: M.2, PCI Express. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: 512 GB

Clearance: Not specified in source

Battery & Power ● Source record

🔋 45,6 Wh

Lityum-İyon (Li-Ion) paired with rapid AC adapter for fast recharging.

Battery Capacity: 45,6 Wh

Charger Rating: N/A

ℹ️

Slot and capacity note

Source slot information: 2x SO-DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

ℹ️

Everyday use and integrated graphics

Assess memory needs using your applications and current memory usage. Check device documentation for dual-channel support and recommended population; suitability of 2×8 GB or another configuration depends on model capacity and slot support.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 Dynabook 45,6 Wh Lityum-İyon (Li-Ion) Internal Battery

This laptop is engineered with a 45,6 Wh Lityum-İyon (Li-Ion) internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →

No compatible components currently listed.

Source specifications 90 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Genel

Sisteme Eklenme Tarihi 2022-11-25

Bağlantı

USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı 2

Birleşik kulaklık/mikrofon portu Evet

USB 3.2 Gen 1 (3.1 Gen 1) Tip-C port sayısı 1

Wi-Fi standartlari 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Teknik

AC Adaptor Gecerli Çıkış 2,37 A

AC Adaptor Voltaj Çıkışı 19 V

AC Adaptor Voltaj Girdisi 100 - 240 V

AC Sarma Adaptor Evet

Ağırlık 1,9 kg

Ayrik Ekran Kartı Modeli Mevcut değil

Ayrik Grafik Bagdastirici Hayir

Bellek Yuvası Sayısı 2x SO-DIMM

Bluetooth Evet

Bluetooth Versiyonu 5.0

Dahili Bellek Tipi DDR4-SDRAM

Dahili Mikrofon Evet

Deneme Sürümü Microsoft Office 365

Depolama Ortami SSD

Derinlik 240,5 mm

Desteklenen Ürünler ¹This system is preinstalled with Windows 10 Pro software and also comes with a license and media for Windows 11 Pro. Note that media is not included if it can be downloaded over the network. You may only use one version of the Windows software at a time. Switching between versions may require you to uninstall one version and install the other version.

Dokunmatik Ekran Hayir

Ekran Çözünürlüğü 1920 x 1080 Piksel

Entegre Grafik Kartı Evet

Entegre Kart Okuyucu Evet

Ethernet LAN Bağlantısı Evet

Ethernet LAN Rj 45 Port Sayısı 1

Ethernet LAN Veri Transfer Hızı 10,100,1000 Mbit/s

Form Faktörü Kapaklı

Genişlik 362,5 mm

Gtin Ean Upc 4062507234605

Guvenli Platform Modulu Tpm Evet

Hafiza Frekans Hızı 3200 MHz

Hd Türü Full HD kalitesi

Hdmi Port Sayısı 1

Isaret Aygiti Clickpad

İşlemci 5800U

İşlemci Ailesi AMD Ryzen™ 7

Toplam Çekirdek Sayısı 8

İşlemci Destek Frekansı 4,4 GHz

İşlemci Frekansı 1,9 GHz

İşlemci Nesli AMD Ryzen 5000 Series

İşlemci Üreticisi AMD

Isletme Sistemi Mimarisi 64-bit

Kablo Kilit Yuvası Evet

Kategori Notebooklar/Dizüstü Bilgisayarlar

Klavye Tus Sayısı 102

Kurulan Ssd Sayısı 1

Led Arka Isigi Evet

Marka Dynabook

Mikrofon Adedi 2

Mobil Ag Bağlantısi Hayir

Nvme Evet

Dahili Grafik Bağdaştırıcı Modeli AMD Radeon Graphics

On Kamera Evet

On Kamera Hd Türü HD

Optik Sürücüler Hayir

Panel Tipi IPS

Pil Kapasitesi 45,6 Wh

Pil Ömrü 10,8 Saat

Pil Sayısı 2

Pil Teknolojisi Lityum-İyon (Li-Ion)

Ram 16 GB

Renk Adi Dark Blue

Sayısal Tuş Takımı Evet

Sert Durum Disk Sürücü Kapasite 512 GB

Sert Durum Disk Sürücüsü Arayuzleri M.2, PCI Express

Sertifikalar Uygunluk Bildirimleri The manufacturer declares that this product complies with the following directives and regulations for the CE-marking. Responsible for CE marking is Dynabook Europe GmbH, Stresemannallee 4b, 41460 Neuss, Germany.

Sifre Koruma Süpervisör, Kullanıcı

Sifre Korumasi Evet

Toplam Depolama Kapasitesi 512 GB

Toplam Ssd Kapasitesi 512 GB

Ucretsiz Windows 11 Guncellemesi Evet

Ürün Adi C50D-B-11C

Ürün Ailesi Satellite Pro

Ürün Kodu A1PYU13E118N

Ürün Rengi Mavi

Ürün Tipi Laptop

Uyumlu Hafiza Kartları MicroSD (TransFlash)

Wi Fi Standardi Wi-Fi 5 (802.11ac)

Wifi Sertifikali Evet

Windows Tuslari Evet

Wlan Denetleyici Üreticisi Intel

Wlan Kumanda Modeli AzureWave Wireless-AC CM421

Doğal En-Boy Oranı 16:9

Yerlesik Gpu Üreticisi AMD

Yükseklik 19,7 mm

Ekran

Ekran Boyutu 39,6 cm (15.6")

Isletim Sistemi

İşletim Sistemi Windows 11 Pro

RAM

Bellek Kapasitesi 32 GB
