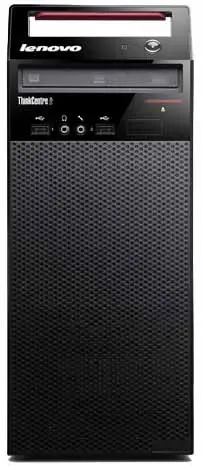

Lenovo ThinkCentre Edge 71 2 GB SGFP1ME

Hardware specifications and upgrade assessment

Processor (CPU)

OEM CPU

Not specified in source

Device maximum RAM

8 GB

Not specified in source DDR3 · Onboard / yükseltilemez · CPU Not specified in source @ Not specified in source (çip külliyatı)

Interface Principale

Not specified in source

Battery & Charger

OEM Battery

Standard AC

⚡ Architecture & Upgrade Diagnostics

Source Timing & Interface Data

Processor ● Installed

⚡ OEM CPU

High performance multi-core processor powering demanding workloads and fast memory buses.

Max Turbo: N/A

Memory Architecture ● Évolutive

🧠 Not specified in source DDR3

Device record: DDR3 at Not specified in source up to 8 GB.

Base Installed: 2 GB

Max Supported: 8 GB

CPU theoretical limit: Not specified in source

Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: N/A

Clearance: Not specified in source

Battery & Power ● Source record

🔋 Internal Battery

High density battery paired with rapid AC adapter for fast recharging.

Battery Capacity: N/A

Charger Rating: N/A

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 Lenovo High Capacity Li-Polymer Internal Battery

This laptop is engineered with a high performance Li-Polymer internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →

No compatible components currently listed.

Source specifications 121 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Body

Weight 6.5 kg

Processor special features

Execute Disable Bit Yes

Idle States Yes

Thermal Monitoring Technologies Yes

Processor package size 37.5 x 37.5 mm

Supported instruction sets SSE4.1, SSE4.2

Processor code SR05Q

CPU configuration (max) 1

Embedded options available Yes

Intel Virtualization Technology for Directed I/O (VT-d) No

Intel Virtualization Technology (VT-x) Yes

Intel Dual Display Capable Technology Yes

Intel FDI Technology Yes

Intel Rapid Storage Technology No

Processor ARK ID 53491

Conflict-Free processor Yes

Intel® Wireless Display (Intel® WiDi) No

Intel® My WiFi Technology (Intel® MWT) No

Intel® Anti-Theft Technology (Intel® AT) No

Intel® Turbo Boost Technology No

Memory types supported by processor DDR3-SDRAM

Intel® Clear Video HD Technology (Intel® CVT HD) No

Intel Clear Video Technology No

Intel® InTru™ 3D Technology No

Intel® Quick Sync Video Technology No

Intel Trusted Execution Technology No

Intel Enhanced Halt State Yes

Intel VT-x with Extended Page Tables (EPT) Yes

Intel Demand Based Switching No

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) No

Processor

Processor codename Sandy Bridge

Bus type DMI

FSB Parity No

Stepping Q0

Processor frequency 2.9 GHz

Thermal Design Power (TDP) 65 W

PCI Express slots version 2.0

Processor cores 2

CPU multiplier (bus/core ratio) 29

ECC supported by processor No

Processor socket LGA 1155 (Socket H2)

Number of processors installed 1

Tcase 69.1 °C

Processor model G850

Maximum internal memory supported by processor 32 GB

Memory bandwidth supported by processor (max) 21 GB/s

Processor family Intel® Pentium®

Memory clock speeds supported by processor 1066,1333 MHz

Processor manufacturer Intel

Processor threads 2

System bus rate 5 GT/s

Processor cache 3 MB

Processor cache type Smart Cache

Processor lithography 32 nm

Processor operating modes 64-bit

Processor series Intel Pentium G800 Series for Desktop

Ports & interfaces

VGA (D-Sub) ports quantity 1

Ethernet LAN (RJ-45) ports 1

DVI port Yes

Line-out Yes

Line-in Yes

USB 2.0 ports quantity 6

Microphone in Yes

Headphone outputs 1

Design

Number of 3.5" bays 2

Number of 5.25" bays 1

Cable lock slot type Kensington

Product colour Black

Chassis type Tower

Ergonomics

Cable lock slot Yes

Memory

Internal memory 2 GB

Internal memory type DDR3-SDRAM

Maximum internal memory 8 GB

Memory layout (slots x size) 1 x 2 GB

Memory channels Dual-channel

Storage

Optical drive type DVD-RW

Number of HDDs installed 1

Total storage capacity 500 GB

HDD interface SATA

Graphics

On-board graphics card Yes

On-board graphics card family Intel® HD Graphics

On-board graphics card model Intel® HD Graphics

On-board graphics card base frequency 850 MHz

On-board graphics card dynamic frequency (max) 1100 MHz

Number of displays supported (on-board graphics) 2

Network

Ethernet LAN Yes

Cabling technology 10/100/1000Base-T(X)

Ethernet LAN data rates 10,100,1000 Mbit/s

Audio

Audio system ADI

Display

Display included No

Other features

Compliance industry standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Networking features Gigabit Ethernet

Graphics card family Intel

Software

Operating system installed Windows 7 Professional

Operating system architecture 64-bit

Performance

Motherboard chipset Intel® H61

Product type PC

Genel

Satılan Pazarlar NL, SE

Sisteme Eklenme Tarihi 2012-01-18

Hard drive

HDD capacity 500 GB

HDD speed 7200 RPM

Weight & dimensions

Width 160 mm

Depth 355 mm

Height 392 mm

Technical details

Power supply 280 W

Expansion slots

PCI Express x1 slots 2

PCI Express x16 slots 1

Teknik

Enhanced Intel Speedstep Technology Yes

Gtin Ean Upc 0886843827857, 886843827857

Intel 64 Yes

Intel Aes New Instructions Intel Aes Ni No

Intel Fast Memory Access Yes

Intel Flex Memory Access Yes

Intel Hyper Threading Technology Intel Ht Technology No

Intel Insider No

Kategori PCs/Workstations

Marka Lenovo

Ürün Adi Edge 71

Ürün Ailesi ThinkCentre

Ürün Kodu SGFP1ME

Wi Fi No
