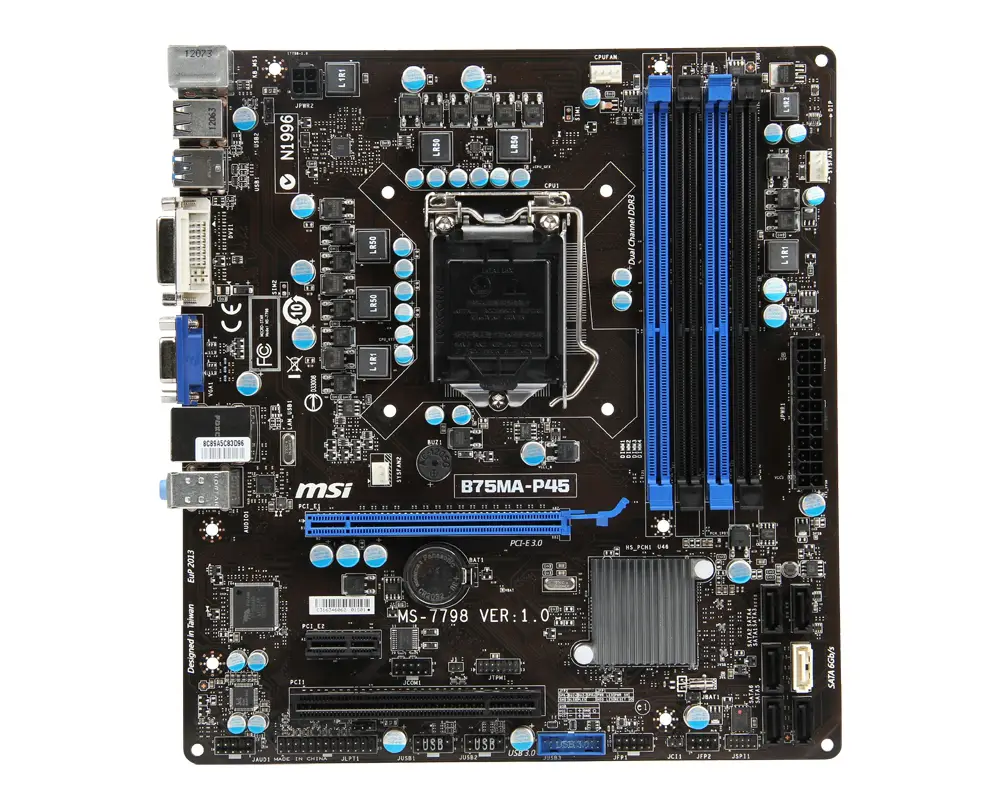

MSI B75MA-P45 7798-010R

Hardware specifications and upgrade assessment

Processor (CPU)

OEM CPU

Not specified in source

Device maximum RAM

32 GB

Not specified in source · Onboard / yükseltilemez · CPU Not specified in source @ Not specified in source (çip külliyatı)

Interface Principale

Not specified in source

Battery & Charger

OEM Battery

Standard AC

⚡ Architecture & Upgrade Diagnostics

Source Timing & Interface Data

Processor ● Installed

⚡ OEM CPU

High performance multi-core processor powering demanding workloads and fast memory buses.

Max Turbo: N/A

Memory Architecture ● Évolutive

🧠 Not specified in source

Device record: at Not specified in source up to 32 GB.

Base Installed: N/A

Max Supported: 32 GB

CPU theoretical limit: Not specified in source

Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: N/A

Clearance: Not specified in source

Battery & Power ● Source record

🔋 Internal Battery

High density battery paired with rapid AC adapter for fast recharging.

Battery Capacity: N/A

Charger Rating: N/A

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 MSI High Capacity Li-Polymer Internal Battery

This laptop is engineered with a high performance Li-Polymer internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →

No compatible components currently listed.

Source specifications 96 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Internal I/O

Chassis intrusion connector Yes

TPM connector Yes

Number of SATA III connectors 1

USB 3.2 Gen 1 (3.1 Gen 1) connectors 1

Number of SATA II connectors 5

Front panel audio connector Yes

CPU fan connector Yes

Parallel connector Yes

Ports & interfaces

USB 2.0 connectors 2

VGA (D-Sub) ports quantity 1

DVI-D ports quantity 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4

Ethernet LAN (RJ-45) ports 1

PS/2 ports quantity 2

ATX Power connector (24-pin) Yes

USB 2.0 ports quantity 2

Power

Power source type ATX

Performance

DirectX version 11

Motherboard chipset Intel B75

Compatible processor series Intel® Celeron®, Intel® Pentium®

Storage

Supported storage drive interfaces SATA II, SATA III

Other features

Parallel processing technology support Not supported

Graphics card family Intel

Memory

Maximum internal memory 32 GB

Memory slots type DIMM

Supported memory types DDR3-SDRAM

Number of memory slots 4

Supported memory clock speeds 1066,1333,1600,1800,2000,2200,2400 MHz

Graphics

On-board graphics card Yes

Graphics card HD Graphics

Processor

Processor manufacturer Intel

Processor socket LGA 1155 (Socket H2)

Expansion slots

PCI Express x1 slots 1

PCI Express x16 slots 1

PCI slots 1

Network

Ethernet interface type Gigabit Ethernet

Features

Component for PC

Motherboard form factor micro ATX

Motherboard chipset family Intel

Genel

Satılan Pazarlar NL, DE, BE, GB, UA, PL, FR

Sisteme Eklenme Tarihi 2012-03-26

Weight & dimensions

Width 225 mm

Depth 244 mm

BIOS

BIOS type UEFI

Audio

Audio output channels 7.1 channels

Teknik

Anakart Form Faktoru micro ATX

Analevha Yonga Kumesi Ailesi Intel

Atx Güç Baglayici 24 Pin Evet

Bellek Yuvalarinin Sayısı 4

Bileşen PC

Bios Tipi UEFI

Cpu Fan Baglayici Evet

Derinlik 244 mm

Desteklenen Depolama Sürücüsü Arayuzleri SATA II, SATA III

Destekli Hafiza Saati Hızı 1066,1333,1600,1800,2000,2200,2400 MHz

Destekli Hafiza Türü DDR3-SDRAM

Directx Versiyonu 11

Dvi D Bağlantı Noktasi Sayısı 1

Entegre Grafik Kartı Evet

Ethernet Arayuz Türü Gigabit Ethernet

Ethernet LAN Rj 45 Port Sayısı 1

Genişlik 225 mm

Grafik Adaptor Ailesi Intel

Gtin 4719072261139

Gtin Ean Upc 4719072261139

Güç Kaynagi Türü ATX

Hafiza Alani Türü DIMM

İşlemci Üreticisi Intel

İşlemcilerle Uyumlu Intel® Celeron®, Intel® Pentium®

Kategori Motherboards

Marka MSI

Model Serisi 1

On Panel Ses Baglayicisi Evet

Paralel Bağlantı Evet

Paralel Isleme Teknolojisi Desteği Desteklenmez

Pci Delikleri 1

Pci Express X1 Delik 1

Pci Express X16 Delik 1

Ps 2 Bağlantı Noktalari 2

Sasi Giriş Baglayici Evet

Sata Ii Bağlantı Sayısı 5

Sata Iii Bağlantı Sayısı 1

Ses Çıkış Kanali Sayısı 7.1 kanallar

Tpm Baglayici Evet

Üretim Tarihi 2012

Ürün Adi B75MA-P45

Ürün Kodu 7798-010R

Usb 2 Bağlantı Noktasi Sayısı 2

Usb 2 Baglayicilari 2

Usb 3 2 Gen 1 3 1 Gen 1 Konnektorleri 1

Usb 3 2 Gen 1 3 1 Gen 1 Tip A Port Sayısı 4

Vga D Sub Bağlantı Noktasi Sayısı 1

Video Adaptoru Sürücüsü HD Graphics

Diğer Özellikler

Chipset Intel B75

İşlemci

İşlemci Soketi LGA 1155 (Socket H2)

RAM

Bellek Kapasitesi 32 GB
