DELL

SERVER ⚡ Intel® Xeon Silver

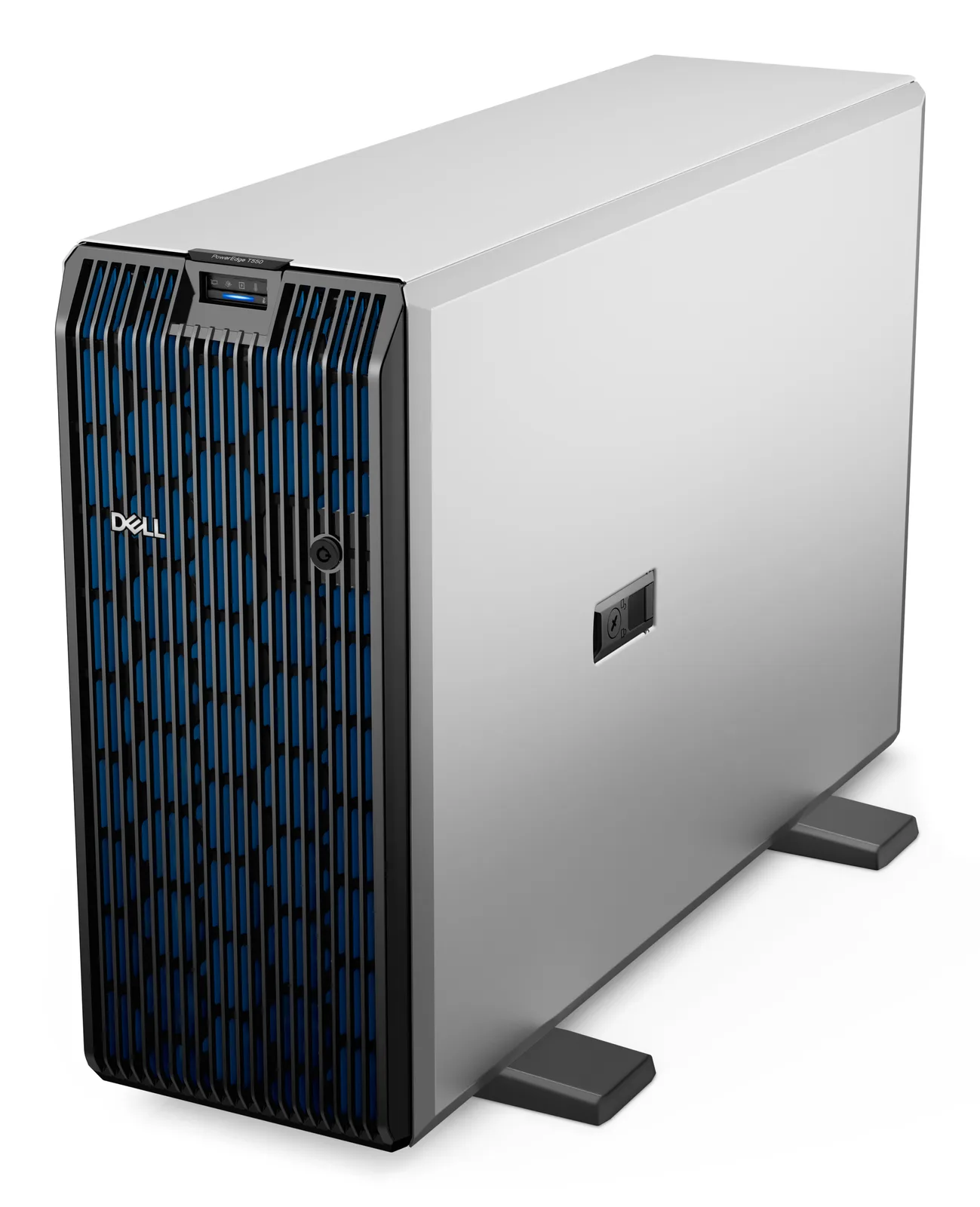

DELL PowerEdge T550 T550Q4FY23

Hardware specifications and upgrade assessment

Processor (CPU)

Intel® Xeon Silver

Not specified in source

Device maximum RAM

64 GB

16x DIMM DDR4 · Onboard / yükseltilemez · CPU Not specified in source @ Not specified in source (çip külliyatı)

Primaire Interface

Not specified in source

Battery & Charger

OEM Battery

Standard AC

⚡ Architecture & Upgrade Diagnostics

Source Timing & Interface Data

Processor ● Installed

⚡ Intel® Xeon Silver

Intel® Xeon Silver

Max Turbo: N/A

Memory Architecture ● Upgradebaar

🧠 16x DIMM DDR4

Device record: DDR4 at Not specified in source up to 64 GB.

Base Installed: 16 GB

Max Supported: 64 GB

CPU theoretical limit: Not specified in source

Storage Architecture ● Source record

💾 Not specified in source

Recorded interface: Not specified in source. Recorded form: Not specified in source. Size: Not specified in source.

Installed SSD: 2 TB

Clearance: Not specified in source

Battery & Power ● Source record

🔋 Internal Battery

High density battery paired with rapid AC adapter for fast recharging.

Battery Capacity: N/A

Charger Rating: N/A

ℹ️

Slot and capacity note

Source slot information: 16x DIMM. This does not establish free slots. Dividing the total capacity limit by the number of slots does not establish a per-module limit; soldered memory and per-slot support need separate verification.

ℹ️

BIOS and manufacturer support

Before purchase, check the exact model’s service documentation and BIOS release notes. Treat a BIOS update as expanding memory support only when explicitly documented by the manufacturer.

Upgrade candidates

Products on this page: 0

Speed: high to low. RAM: recorded memory speed; SSD: recorded read speed. Unknown speeds appear last.

OEM Hardware Specification Part number verification required

🔋 DELL High Capacity Li-Polymer Internal Battery

This laptop is engineered with a high performance Li-Polymer internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.

Search battery part numbers on Amazon →

No compatible components currently listed.

Source specifications 115 parameters found

📋 Hardware Technical Specifications

Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.

Processor

Processor manufacturer Intel

Processor boost frequency 3.3 GHz

Processor cache 18 MB

Maximum internal memory supported by processor 32 GB

Processor frequency 2.1 GHz

Processor model 4310

Processor family Intel Xeon Silver

Memory

Memory slots 16x DIMM

Memory data transfer rate 3200 MT/s

Internal memory 16 GB

Internal memory type DDR4-SDRAM

Maximum internal memory 64 GB

Genel

Sisteme Eklenme Tarihi 2022-12-05

Design

Product colour Black

Chassis type Tower

Storage

Number of HDDs installed 1

HDD interface SATA III

HDD size 3.5"

Supported RAID controllers PERC H745

Total storage capacity 2 TB GB

Weight & dimensions

Width 200 mm

Depth 680.5 mm

Height 459 mm

Power

Redundant power supply (RPS) support Yes

Power cable connector 2 C13 coupler

Number of redundant power supplies supported 2

Number of redundant power supplies installed 2

Power cable current 15 A

Performance

Operating temperature (T-T) 10 - 35 °C

Power cable length 3 m

Remote administration iDRAC9, Enterprise 15G

Features

Buffered memory type Registered (buffered)

RAID support Yes

Memory ranking 2

Other features

Storage temperature (T-T) -40 - 65 °C

Hot-Plug support Yes

Drive bays 8

Compatible operating systems Canonical Ubuntu Server LTS ● Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi

Network

Ethernet interface type Gigabit Ethernet

Ethernet LAN Yes

Cabling technology 10/100/1000Base-T(X)

Operational conditions

Storage relative humidity (H-H) 5 - 95%

Operating altitude 0 - 3048 m

Non-operating altitude 0 - 12000 m

Technical details

Power supply 1400 W

Ports & interfaces

USB 2.0 ports quantity 2

VGA (D-Sub) ports quantity 1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2

Ethernet LAN (RJ-45) ports 2

Serial ports quantity 1

Software

Operating system installed No

Hard drive

HDD capacity 2 TB GB

HDD speed 7200 RPM

Teknik

Bellek Yuvası Sayısı 16x DIMM

Brand DELL

Calisirken Takma Desteği Evet

Çalışma Isısı Aralığı 10 - 35 °C

Çalışma Yüksekliği 0 - 3048 m

Çalışmama Nemi 5 - 95%

Çalışmama Yüksekliği 0 - 12000 m

Category Sunucular

Dahili Bellek Tipi DDR4-SDRAM

Dahili Sabit Disk Sürücüsü 2 TB

Dahili Sürücü Bolmeleri 8

Depolama Sıcaklığı Aralığı Celsius -40 - 65 °C

Derinlik 680,5 mm

Desteklenen Ihtiyac Fazlasi Güç Kaynagi Sayısı 2

Desteklenen Raid Kontrol Birimleri PERC H745

Ethernet Arayuz Türü Gigabit Ethernet

Ethernet LAN Bağlantısı Evet

Ethernet LAN Rj 45 Port Sayısı 2

Gecici Bellek Tipi Registered (buffered)

Genişlik 200 mm

Gtin Ean Upc 0884116433330, 884116433330

Güç Gereksinimleri 1400 W

Güç Kablosu Akimi 15 A

Güç Kablosu Konektoru 2 C13 bağlaştırıcı

Güç Kablosu Uzunluğu 3 m

Hafiza Siralama 2

Hafiza Veri Aktarim Hızı 3200 MT/s

İletişim Seri Bağlantı Noktalari 1

İşlemci Ailesi Intel® Xeon Silver

İşlemci Destek Frekansı 3,3 GHz

İşlemci Frekansı 2,1 GHz

İşlemci Önbelleği 18 MB

İşlemci Tarafindan Desteklenen Maksimum Ic Bellek 32 GB

İşlemci Üreticisi Intel

Kablo Teknolojisi 10/100/1000Base-T(X)

Kasa Dikey (Tower)

Kategori Servers

Kurulan Ihtiyac Fazlasi Güç Kaynagi Sayısı 2

Marka DELL

Product Family PowerEdge

Product Name T550

Product Series 1

Raid Desteği Evet

Ram 16 GB

Sabit Bellek Arayüzü SATA III

Sabit Disk Boyutu 3.5"

Sabit Disk Sürücüsü Hızı 7200 RPM

Toplam Depolama Kapasitesi 2 TB

Ürün Adi T550

Ürün Ailesi PowerEdge

Ürün Kodu T550Q4FY23

Ürün Rengi Siyah

Usb 2 Bağlantı Noktasi Sayısı 2

Usb 3 2 Gen 1 3 1 Gen 1 Tip A Port Sayısı 2

Uyumlu İşletim Sistemi Canonical Ubuntu Server LTS ● Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi

Uzaktan Yonetim iDRAC9, Enterprise 15G

Vga D Sub Bağlantı Noktasi Sayısı 1

Yedek Güç Kaynagi Evet

Yuklu Sabit Disk Sayısı 1

Yükseklik 459 mm

Isletim Sistemi

İşletim Sistemi Hayır

RAM

Bellek Kapasitesi 64 GB
