HP
THIN CLIENTS/BLADE PCS
⚡ AMD Geode NX 1500, 1 GHz

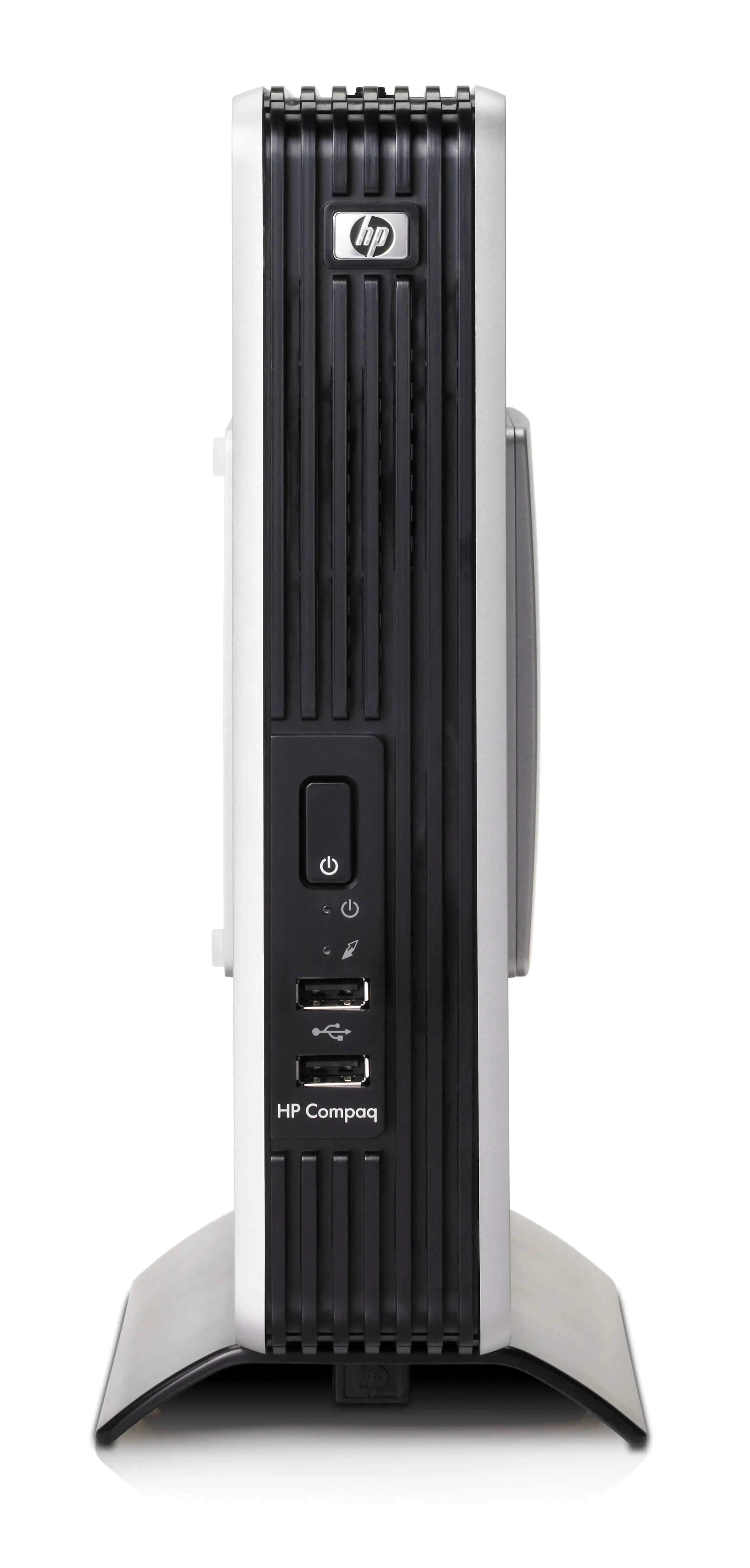

HP Compaq t5725 Thin Client AMD Geode NX 1500 512M Flash Rom 256M DDR SDRAM Debian Linux Thin Client 1 GHz RG049AA
Verified Hardware Upgrade & Compatibility Guide • 100% Real OEM Database Specifications
Processor (CPU)
NX 1500
1 GHz
Maksimum Desteklenen RAM
64 GB
2x SO-DIMM
Birincil Arayüz
NVMe
Battery & Charger
OEM Battery
Standard AC
⚡ Mimari & Genişleme Teşhis Paneli
Verified OEM Timing & Interface Analysis
Processor
● Installed
⚡ NX 1500
AMD Geode NX 1500, 1 GHz
Max Turbo:
1 GHz
Bellek Mimarisi
● Yükseltilebilir
🧠 2x
Motherboard supports standard sockets at high speed up to 64 GB.
Base Installed:
0,25 GB
Max Supported:
64 GB
Depolama Mimarisi
● Yükseltilebilir
💾 NVMe
Supports high-speed solid-state drives. Form factor is standard 2280.
Installed SSD:
0,5 GB
Clearance:
Single-sided 2280
Battery & Power
● Verified OEM
🔋 Internal Battery
High density battery paired with rapid AC adapter for fast recharging.
Battery Capacity:
N/A
Charger Rating:
N/A
Doğrulanmış Uyumlu Bileşenler
Toplam uyumlu bileşenden en yüksek doğrulanmış olanlar listeleniyor: 0
OEM Hardware Specification
Direct Fit Guarantee
🔋 HP High Capacity Li-Polymer Internal Battery
This laptop is engineered with a high performance Li-Polymer internal battery pack. Obsolete batteries from older generations have been filtered out to protect system integrity.
No compatible components currently listed.
100% Verified Database Specs
58 parameters found
📋 OEM Hardware Technical Specifications (product_specifications table)
Zero data fabrication. Every entry below is pulled directly from the SQL database for this exact device model.
Genel
Satılan Pazarlar
DK, CH
Sisteme Eklenme Tarihi
2006-10-18
Satışa Çıkış Tarihi
2006-11-01
Garanti Süresi / Detayı
Standart garanti bildirimi: Üç yıllık sınırlı donanım garantisi. Bazı kısıtlamalar vardır. Ayrıntılar için HP Müşteri Destek Merkezi'ni ziyaret edin
Bağlantı
G/Ç Bağlantı Noktası
6 x USB
1 x serial
1 x parallel
1 x RJ-45
2 x PS/2
Teknik
Ag Arabirimi
Ethernet, Fast Ethernet
Ağırlık
1,7 kg
Ağırlık Imperiyal
3.7 lb lbs
Arka Delikler
4 USB 2.0; 1 serial; 1 parallel; 2 PS/2; 1 microphone in; 1 headphone/line-out; 1 external monitor; 1 cable lock; 1 RJ-45
Boyut Imperial
11 cm (4.33")
Boyut Notu İngiliz Ölçü Standardi
With stand
Boyut Notu Metrik
With stand
Boyutlar Gxdxy
65,8 x 205 x 250 mm
Boyutlar Metrik Sehpa Ile
110 x 237 x 271 mm
Brand
HP
Çalışma Isısı Aralığı
10 - 40 °C
Calistirma Nem Aralığı
10 - 95%
Category
Thin Clients/Blade Pcs
Dahili Ses
16-bit stereo
Depolama Sıcaklığı Aralığı Celsius
-30 - 60 °C
Desteklenen Tarayicilar
Firefox
Ergonomik Ozellikler
Safety: UL 1950, CSA 950, TÜV-GS (EN60 950) approved; RF Interference: FCC Class B, CE Mark, EN55022B, VCCI
German ZH1/618, EN29241-3, approved
Fiber Kanal Protokolleri
Six USB ports, 1 serial, 1 parallel, RJ-45, 1 optional PCI expansion, 2 PS/2
2 USB 2.0 front ports, 4 USB 2.0 back ports, 1 serial, 1 parallel, 2 PS/2, 1 RJ-45
G C Bağlantı Noktasi
6 x USB 1 x serial 1 x parallel 1 x RJ-45 2 x PS/2
Genisletme Yuvalari
1 standard PCI slot (via optional expansion module)
Grafik Alt Sistemi Adi
SiS741GX/UMA
Grafik Alt Sistemi Ekran Kartı Belleği
16 MB
Gtin Ean Upc
0882780692916, 882780692916, 0882780692954, 882780692954, 0882780693005, 882780693005, 0882780693098, 882780693098, 0882780693081, 882780693081, 0882780693111, 882780693111, 0882780693128, 882780693128, 0882780693135, 882780693135, 0882780693142, 882780693142, 0882780693159, 882780693159, 0882780693166, 882780693166, 0882780693173, 882780693173, 0882780693180, 882780693180, 0882780693197, 882780693197, 0882780692831, 882780692831, 0882780692848, 882780692848, 0882780692855, 882780692855, 0882780692862, 882780692862, 0882780692879, 882780692879, 0882780692886, 882780692886, 0882780692893, 882780692893, 0882780692909, 882780692909, 0882780693289, 882780693289, 0882780692923, 882780692923, 0882780692930, 882780692930, 0882780692947, 882780692947, 0882780692961, 882780692961, 0882780692978, 882780692978, 0882780692985, 882780692985, 0882780692992, 882780692992, 0882780693012, 882780693012, 0882780693029, 882780693029, 0882780693036, 882780693036, 0882780693043, 882780693043, 0882780693050,
Güç Gereksinimleri
Worldwide auto-sensing 100-240 VAC, 50-60 Hz energy-saving automatic power-down, surge-tolerant, 40W power supply
Güç Kaynagi Türü
100~240V @ 50-60Hz
Isaret Aygiti
PS/2 two button scroll mouse
HP USB two button scroll mouse
İşlemci
NX 1500
İşlemci Ailesi
AMD Geode
İşlemci Frekansı
1 GHz
Klavye
HP USB standard keyboard
Menşe Ülkesi
Çin
Modem
N
Multimedya
Internal amplified speaker, 1/8-inch mini, full 16-bit stereo, 44-kHz sample rate; 1/8 inch mini microphone
Onceden Yuklenmis Yazilim
Debian Linux 3.1 (Linux Kernel 2.6)
Product Name
Compaq t5725 Thin Client AMD Geode NX 1500 512M Flash Rom 256M DDR SDRAM Debian Linux Thin Client
Product Series
1
Ram
0,25 GB
Rom Tipi
Flash RAM
Sertifikalar Uygunluk Bildirimleri
UL 1950; CSA 950; TUV-GS (EN60 950); FCC Class B; CE Mark; EN55022B; VCCI
Ses
Output: Internal amplified speaker, 1/8-inch mini, full 16-bit stereo, 44 kHz sample rate and Input: 1/8-inch mini microphone
Standart Hafiza
16 MB of system RAM is reserved for graphics memory
Standart Hafiza Kapasitesi
256 MB
Toplam Depolama Kapasitesi
0,5 GB
Unspsc Kodu
43211506
Üretim Tarihi
2006
Ürün Boyutlari Sehpa Ile G X D X Y Imperial
110 x 237 x 271 mm (4.33 x 9.33 x 10.7")
Ürün Boyutlari Sehpasiz G X D X Y Imperial
65,8 x 205,5 x 250,2 mm (2.59 x 8.09 x 9.85")
Ürünle Gelen Yazilim
HP Connection Administrator, Citrix ICA, Rdesktop, Altiris Deployment Solution, TeemtalkCE Terminal Emulation Console Software
Altiris Deployment Solution 6.8 (client agent) preinstalled (available as free download from Altiris at: www.altiris.com/hptc)
Uyumlu İşletim Sistemi
Microsoft Windows NT 4.0 Server, Windows NT 4.0 Terminal Server Edition, Windows 2000/2003 Server families, Windows 2000/2003 Server Terminal Services, Windows 2000 Advance Server, Windows 2000 Advance Server Terminal Services, and Citrix Presentation Server 4.0, Citrix MetaFrame Presentation Server 3.0, Citrix MetaFrame Presentation Server, Citrix MetaFrame 1.x
Varsayilan Web Tarayici
Firefox 1.5
Yapilandirma Yonetimi
HP Thin State Capture and Thin State Deploy, DHCP support for configuration settings
Yonetim Yazilimi
Altiris Deployment Solution
Yuklenebilir Yazilim
Altiris Deployment Solution 6.5 (management console)
